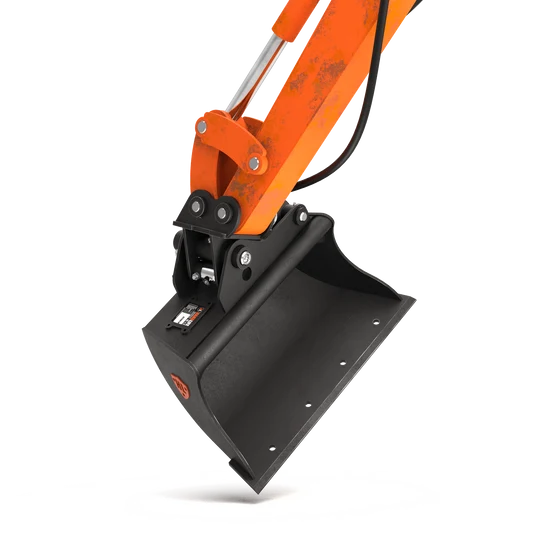

18–25 Tonne Excavator Scandinavian Tilt Bucket – 1900mm

The 18–25 tonne excavator Scandinavian tilt bucket is a 1900mm-wide hydraulic grading attachment designed for accurate shaping, levelling and finishing on demanding groundworks and civil-engineering projects. Its extended floor, tapered sides and long working edge help operators trim banks, follow crossfalls and produce a controlled finish across large or uneven areas.

With a 1,150-litre capacity and an attachment weight of 1,092kg, this is the largest Scandinavian tilt bucket in the range. It is manufactured using abrasion-resistant steel and incorporates reinforced wear bars alongside a heavy-duty 25 × 200mm HB400 cutting edge.

Each bucket is finished to suit the confirmed excavator or quick-hitch linkage. Machine suitability, hydraulic connections and linkage dimensions must be checked before manufacture. If you are uncertain about compatibility, send us your machine, hitch and hydraulic details before ordering.

Key Features

• Designed for excavators in the 18–25 tonne carrier class
• 1900mm working width for productive grading and finishing
• 1,150-litre bucket capacity
• 1,092kg empty attachment weight
• Hydraulic tilt function for angled grading and shaping
• 45-degree tilt angle specified for this model
• Extended floor for controlled levelling and material flow
• Tapered Scandinavian-style side profile
• 25 × 200mm HB400 abrasion-resistant cutting edge
• Reinforced wear bars for additional underside protection
• Manufactured using abrasion-resistant steel
• Linkage finished to suit the confirmed excavator or quick hitch

18–25 Tonne Scandinavian Tilt Bucket Specifications

Where This 1900mm Tilt Bucket Works Best

The 1900mm working width allows excavators in the 18–25 tonne class to cover a large area with each pass. Its hydraulic tilt function lets the operator change the bucket’s working angle without continually repositioning the excavator, improving productivity when working across slopes, alongside drainage channels or around fixed obstacles.

The combination of a high-capacity body, extended floor and tapered side profile makes this attachment particularly suitable for larger projects where both output and finishing accuracy are important.

Typical applications include:

• Large-scale grading and site levelling
• Shaping banks, slopes, verges and embankments
• Constructing and maintaining drainage ditches
• Road, housing and commercial groundworks
• Spreading topsoil, aggregate and loose material
• Finishing around foundations and service routes
• Forming crossfalls and ground-level transitions
• Infrastructure and civil-engineering work
• Final site preparation following excavation

This attachment is primarily designed for grading, shaping and finishing. For trenching, foundations or aggressive excavation in hard and compacted material, use a dedicated excavator digging bucket.

Scandinavian Tilt Bucket or Fixed Grading Bucket?

A conventional fixed grading or ditching bucket is a practical option for straightforward levelling, backfilling, ditch clearance and loose-material handling. It is particularly effective when the excavator can be positioned squarely in relation to the working surface.

A Scandinavian tilt bucket combines an extended floor and tapered profile with hydraulic angle adjustment. This gives the operator greater control when following crossfalls, trimming embankments and shaping ground where repositioning a larger excavator would be difficult or inefficient.

Neither attachment replaces a narrower toothed bucket for demanding excavation in hard or compacted ground. The correct choice depends on whether the main requirement is digging, general material handling or detailed angled grading.

View the complete range of Scandinavian tilt buckets for other machine classes, or browse all available excavator buckets.

Excavator and Quick-Hitch Compatibility

Excavator buckets are not universal. Although this model is designed for excavators in the 18–25 tonne carrier class, machines of a similar operating weight can use different pin dimensions, linkage widths and quick-hitch systems.

Please provide the following information when ordering:

• Excavator make and model
• Machine operating weight
• Quick-hitch or coupler make and model
• Pin diameter
• Pin-centre measurement
• Internal dipper or linkage width
• Clear photographs of the hitch or an existing bucket

Machine weight should only be treated as an initial guide. The complete linkage specification must be confirmed before manufacture. If you cannot provide the measurements, complete our attachment fitment and quotation form.

Hydraulic Requirements

This bucket requires a suitable auxiliary hydraulic service to operate its tilt function. Hydraulic flow, pressure, connections and hose arrangements can vary between excavators, quick hitches and existing attachment setups.

Please provide details or photographs of the machine’s hydraulic connections before ordering. Do not assume that hoses, couplings or additional installation components are included unless they are specifically listed on your quotation.

Attachment Weight and Machine Suitability

This bucket weighs 1,092kg before any material is loaded. The excavator manufacturer’s permitted attachment weight, hydraulic capacity, lifting chart and stability guidance must therefore be checked before use.

The 18–25 tonne carrier classification alone does not confirm suitability for every machine or working situation. Quick-hitch weight, working radius, ground conditions and the density of the material inside the bucket can all affect excavator stability and safe operating capacity.

The combined weight of the bucket, quick hitch and material being handled must remain within the machine manufacturer’s limits throughout the intended working range.

Delivery and Ordering

This Scandinavian tilt bucket is finished to suit the confirmed excavator or quick-hitch linkage. The usual fulfilment target is within 7–10 working days, although factory workload, linkage requirements and immediate stock availability can affect the final delivery date.

Popular larger models may occasionally be available sooner. If the bucket is required for a fixed project date, please contact us before ordering so that current availability and delivery times can be confirmed.

18–25 Tonne Scandinavian Tilt Bucket FAQs

How wide is this Scandinavian tilt bucket?

This model has a working width of 1900mm, equivalent to approximately 74.8 inches.

What is the bucket capacity?

The bucket has a capacity of 1,150 litres, providing substantial coverage for grading, ground shaping and handling loose material.

How much does the bucket weigh?

The empty attachment weighs 1,092kg. The combined weight of the bucket, quick hitch and material must remain within the excavator manufacturer’s limits.

Does this bucket require hydraulics?

Yes. The excavator must have a suitable auxiliary hydraulic service. Hydraulic requirements and connection compatibility should be confirmed before ordering.

Will it fit every 18–25 tonne excavator?

No. Excavators and quick hitches within the same carrier class can use different linkage dimensions. The machine model, hitch type, pin diameter, pin centres and linkage width must be confirmed.

Does this model have wear bars?

Yes. The 18–25 tonne model includes reinforced wear bars to protect areas exposed to frequent ground contact and abrasion.

Can this bucket be used for digging?

It can collect loose material and undertake light shaping work, but it is not intended to replace a toothed digging bucket for aggressive excavation in hard or compacted ground.

What information is needed when ordering?

Provide the excavator make and model, operating weight, quick-hitch details, linkage measurements and hydraulic connection information. Photographs of the hitch and existing hydraulic connections can also help confirm compatibility.
