Scandinavian Tilt Buckets for Grading and Finishing

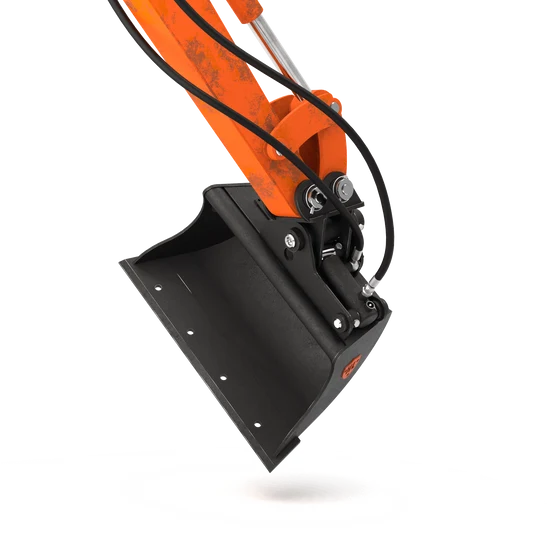

Scandinavian tilt buckets are designed for jobs where accurate shaping and control matter more than aggressive excavation. Their distinctive profile uses an extended floor, tapered sides and a long, flat base to help the operator follow slopes, work around edges and leave a cleaner finish.
This type of bucket may also be described as a Scandi tilt bucket, Scandinavian excavator bucket or tilting ditching bucket. Although the terminology varies, the distinguishing feature is the Scandinavian-style geometry used for grading, shaping, ditch maintenance and detailed earthmoving work.
These buckets cover machines from compact mini diggers through to 25 tonne excavators, giving contractors, landscapers, plant-hire operators and groundworkers a suitable option for different machine classes.
What Are Scandinavian Tilt Buckets Used For?
A Scandinavian tilt bucket is primarily intended for controlled grading and finishing. The wide working profile allows the operator to cover more ground than a narrow digging bucket, while the shaped sides and extended floor help when working across uneven or angled surfaces.
Typical applications include:
- Grading and levelling uneven ground
- Shaping banks, slopes, verges and embankments
- Cleaning and maintaining drainage ditches
- Landscaping and final site preparation
- Spreading topsoil, aggregate and loose material
- Working around kerbs, foundations and obstacles
- Forming transitions between different ground levels
- Detailed finishing following excavation work
For trenching, foundations or cutting into compacted ground, a dedicated excavator digging bucket will normally be more suitable. Scandinavian tilt buckets are better suited to shaping and finishing once the heavier excavation has been completed.
Why Use a Scandinavian-Style Bucket?
The Scandinavian profile differs noticeably from a conventional UK-style grading bucket. Its extended floor provides a larger contact area for smoothing and levelling, while the tapered sides help reduce interference from the rear corners when working at an angle or close to an obstruction.
The long base also gives the operator a clear reference point when creating slopes and finished surfaces. This can make the bucket particularly useful for landscaping, drainage, roadwork, ground preparation and civil engineering projects where the quality of the final finish is important.
The buckets in this range feature abrasion-resistant construction, an HB400 cutting edge and wear protection appropriate to the individual model. Exact capacity, bucket weight and cutting-edge dimensions vary according to the machine class selected.
Scandinavian Tilt Bucket Sizes

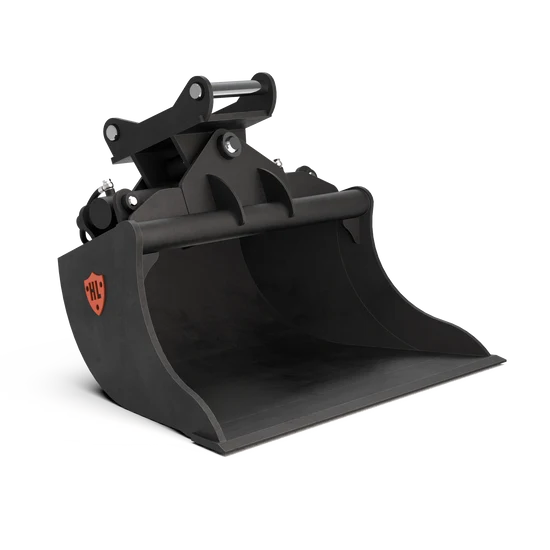

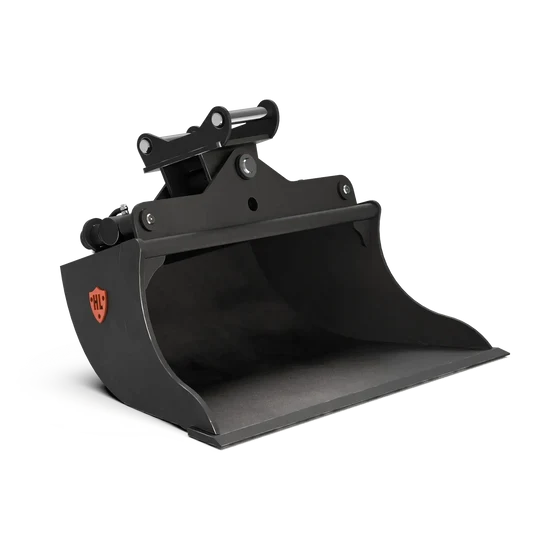

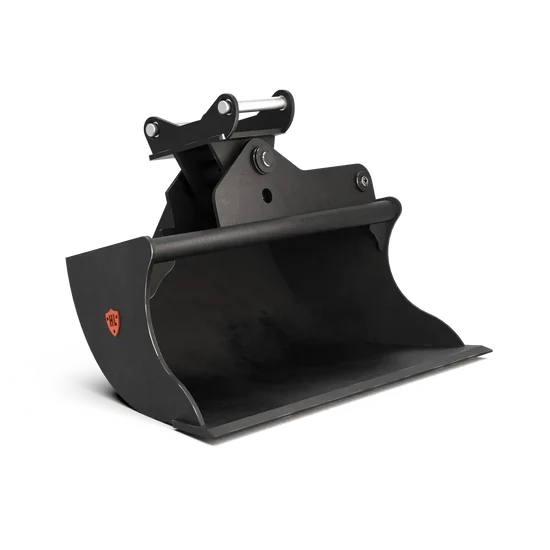

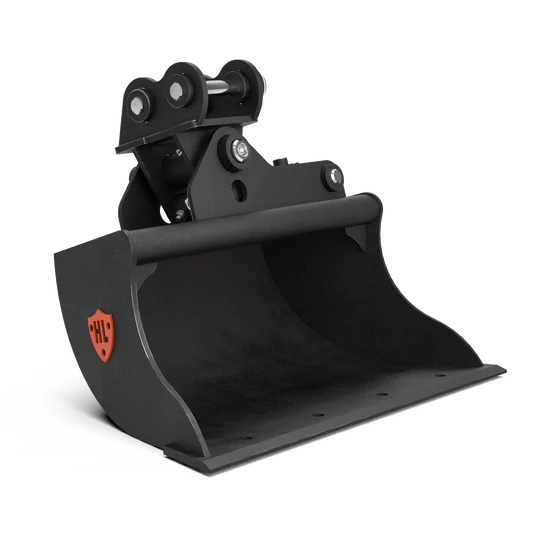

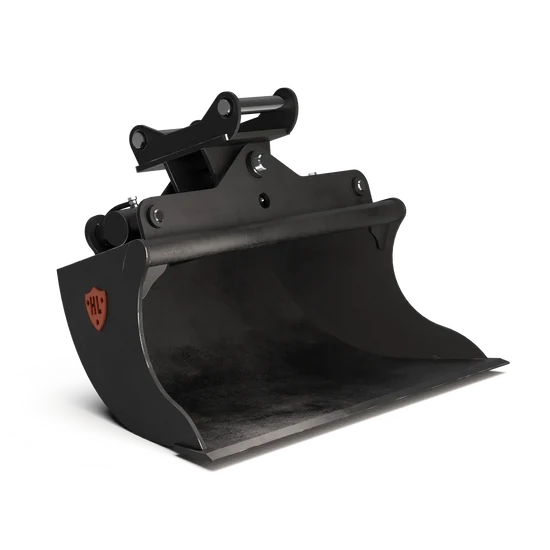

Excavator sizeBucket widthCapacityBucket weight0.8–1.5 tonnes700mm50 litres59kg1.5–2.5 tonnes1000mm110 litres111kg2–3.5 tonnes1150mm175 litres166kg4–6 tonnes1300mm260 litres264kg6–10 tonnes1500mm400 litres390kg10–18 tonnes1700mm750 litres710kg18–25 tonnes1900mm1150 litres1092kg
Machine weight provides an initial guide, but it does not confirm compatibility by itself. The excavator model, linkage dimensions, quick-hitch arrangement and acceptable attachment weight must all be checked before ordering.
Scandinavian Tilt Bucket vs Fixed Grading Bucket
A fixed grading or ditching bucket is a straightforward choice for levelling, spreading loose material and cleaning accessible ditches. It is often the most economical option where the machine can be positioned in line with the surface being graded.
A Scandinavian tilt bucket is intended for more detailed shaping and angled finishing work. Its tapered profile and extended base make it better suited to slopes, banks, verges and irregular ground where additional control is useful.
Neither bucket replaces a toothed digging bucket in hard or compacted ground. The correct choice depends on whether the main job is excavation, straightforward levelling or more precise shaping and finishing.
Scandinavian Tilt Buckets and Tilt-Rotator Buckets
Scandinavian tilt buckets should not automatically be treated as the same product as tilt-rotator grading buckets. These are separate attachment categories, and the correct bucket depends on the machine’s linkage and existing setup.
If your excavator is fitted with a tilt rotator, provide its make, model and coupler type before ordering. Do not select a bucket based only on excavator weight, as the required attachment arrangement may differ.
Checking Excavator Bucket Fitment
Excavator buckets are not universal. Two machines in the same weight class can use different linkages or quick hitches, so the fitment must be confirmed for the specific machine.
Before ordering, provide:
- Excavator make and model
- Machine operating weight
- Quick-hitch or coupler make and model
- Pin diameter
- Pin-centre measurement
- Internal dipper or linkage width
- Photographs of the hitch or an existing bucket where possible
- Delivery postcode and required date
If you cannot confirm these details, complete our attachment fitment and quotation form before placing your order.
Scandinavian Tilt Bucket FAQs
What is a Scandinavian tilt bucket?
It is an excavator bucket with a distinctive extended floor and tapered side profile. It is designed for accurate grading, shaping, ditch maintenance and finishing work.
What is the benefit of the Scandinavian bucket shape?
The long, flat base helps when smoothing and levelling surfaces, while the tapered sides provide greater clearance when working across slopes, around edges and close to obstacles.
Is a Scandinavian tilt bucket the same as a grading bucket?
They are both used for grading and finishing, but they are not identical. A standard grading bucket uses a more conventional fixed profile, while the Scandinavian bucket is shaped for detailed and angled working conditions.
Can a Scandinavian tilt bucket be used for digging?
It can collect loose material and complete light shaping work, but it is not intended to replace a narrower toothed digging bucket for trenching or breaking into compacted ground.
How do I choose the correct size?
Start with the excavator’s operating weight, then check the bucket weight, machine model, linkage measurements and hitch setup. Final compatibility should always be confirmed before ordering.
Will these buckets fit any make of excavator?
The linkage can be finished for different excavators and hitches, but the required measurements must be supplied. Machine weight alone is not enough to guarantee fitment.
Browse all excavator buckets, including digging buckets and fixed grading and ditching buckets.
