Auger Torque Cone Crusher Bucket for 3–10 Tonne Excavators
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your machine and the options you need, so every attachment is quoted individually.

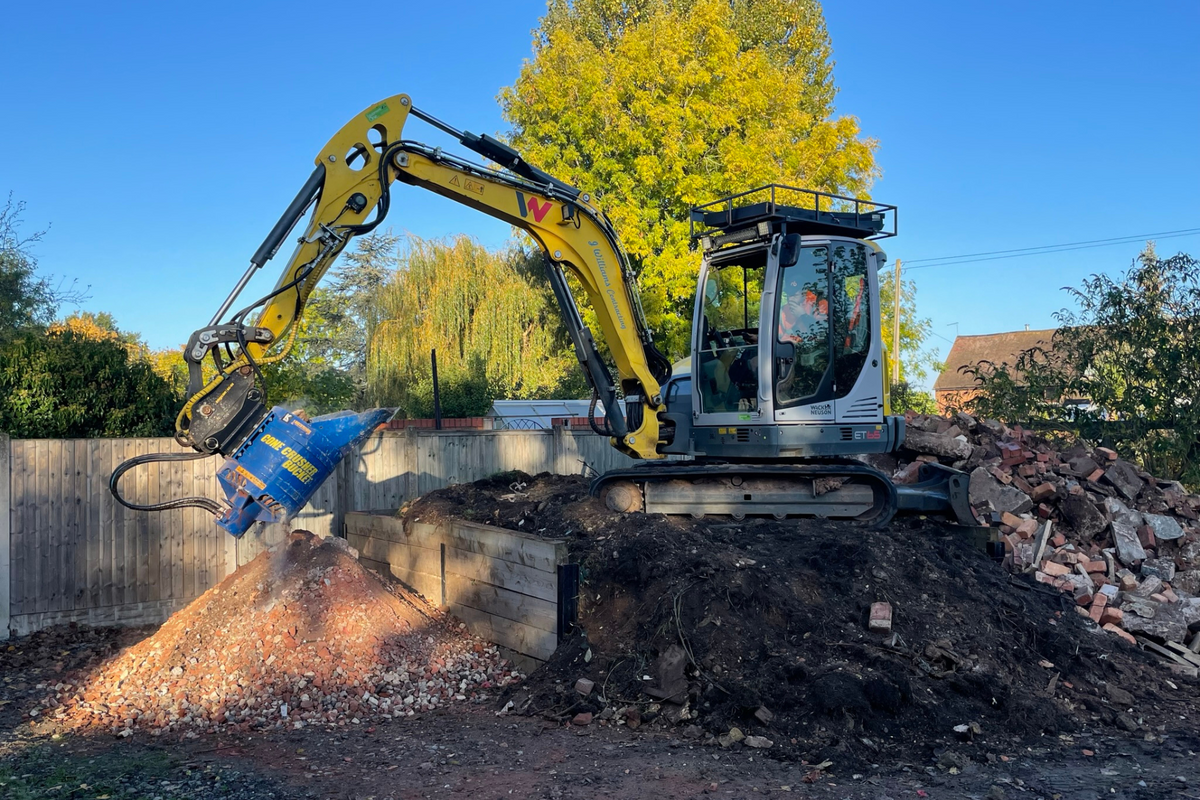

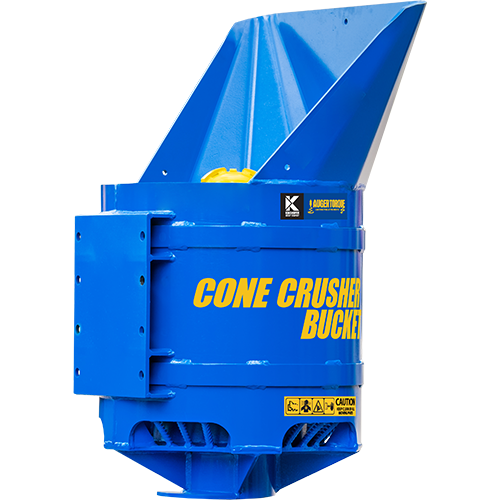

A cone crusher bucket turns rubble into hardcore you can use on site. The Auger Torque bucket scoops up bricks, breeze blocks, concrete pavers, asphalt, natural limestone and poured concrete, and crushes them between a seven-sided rotating cone and a cylindrical drum into material up to 60mm.
It fits 3 to 10 tonne excavators, and also backhoes, mini loaders, skid steers and telehandlers. It processes up to 5 tonnes of mixed material or up to 9 tonnes of brick an hour, the grinding faces are steel and tungsten carbide, and the drive is built around a Series 3.5 sub gearbox. Use the crushed material for farm tracks, forestry roads, yards, landscaping and sub-base, and save on taking waste away and buying in hardcore.
Specifications
| Machines | 3–10 tonne excavators, backhoes, mini loaders, skid steers and telehandlers |
|---|---|
| Output size | Up to 60mm |
| Throughput | Up to 5 tonnes an hour of mixed material, or up to 9 tonnes an hour of brick |
| Drum diameter | 600mm |
|---|---|
| Length | 1300mm |
| Weight | About 380kg |
| Torque | 6,320–10,112Nm |
| Oil flow | 50–150 l/min |
| Oil pressure | 150–240 bar |
| Mounting | Double pin hitch or mounting frame |
| Grinding faces | Steel and tungsten carbide |
Key Features
- Crushes bricks, blocks, pavers, asphalt and concrete into hardcore up to 60mm
- Up to 9 tonnes an hour of brick
- Scoops and crushes with one attachment
- Seven-sided rotating cone inside a cylindrical drum
- Steel and tungsten carbide grinding faces
- Hose guiding plates route the hoses safely
- Fits excavators, backhoes, mini loaders, skid steers and telehandlers
Before You Order
Check your machine's auxiliary circuit can supply 50 to 150 l/min at 150 to 240 bar, and that it can handle an attachment of about 380kg. Send us your machine make, model and weight, and tell us whether you need the double pin hitch or a mounting frame.
In England, crushing waste bricks, tiles and concrete comes under the T7 waste exemption, which you register with your local council, so check the rules for your site before you start. Our guide on how to crush concrete on site covers the rules and crushing tips. Then request a quote.
Related Attachments
To sort soil and stone rather than crush it, see our screening buckets and riddle buckets. For breaking up slabs before crushing, see our excavator breakers. Browse all our excavator attachments.
Request a quote
Tell us your machine's make, model and weight, and its auxiliary oil flow if you know it, and we'll come back with a price, lead time and delivery cost.
