Excavator Grading and Ditching Buckets for Finishing Work
Once the main excavation work has been completed, an excavator grading bucket gives the operator a wider, smoother surface for shaping and finishing the ground. Its broad profile spreads the load across a larger area, while the toothless cutting edge leaves a cleaner finish than a conventional digging bucket.
In the UK plant trade, the terms grading bucket and ditching bucket are commonly used for the same type of fixed attachment. They may also be described as finishing buckets, ditch-cleaning buckets or dyking buckets. Whatever name is used, the basic purpose is the same: controlled levelling, shaping and movement of loose material rather than aggressive ground penetration.
This collection covers fixed grading and ditching buckets. Hydraulic tilt buckets, tilt-rotator buckets and V-ditching buckets are different attachments intended for more specialised applications.
What Are Excavator Grading Buckets Used For?

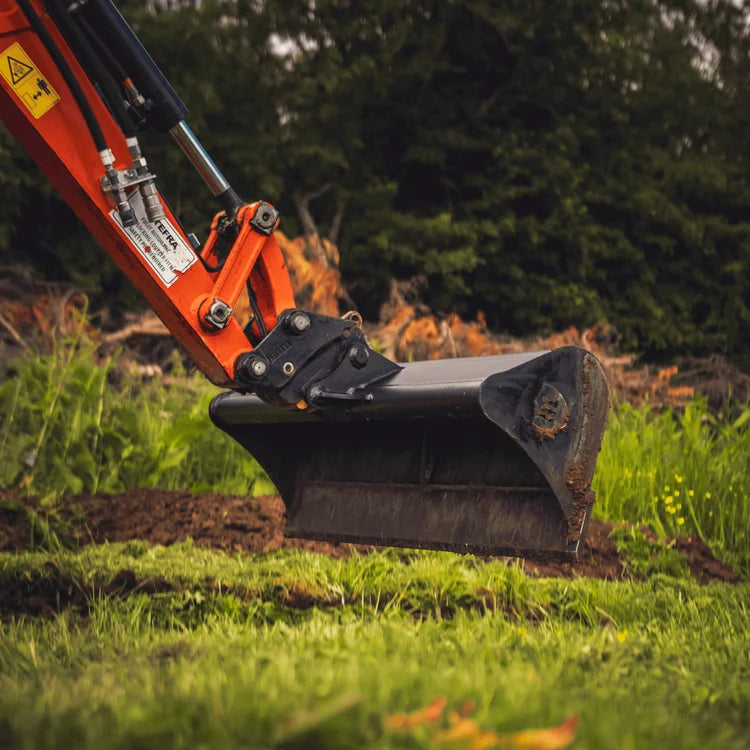

A grading bucket is normally used during the later stages of groundwork, when accuracy and surface finish matter more than breaking into compacted ground. Its width lets the operator cover more ground with each pass and work material into a consistent level.
Common grading bucket applications include:
- Levelling topsoil, sub-base and loose aggregates
- Spreading and backfilling loose material
- Cleaning existing ditches and drainage channels
- Shaping banks, verges, slopes and site contours
- Preparing surfaces for turf, paving or landscaping
- Completing final site clean-up after excavation
- General material handling around construction sites
A fixed grading bucket can move loose soil and complete light excavation work, but it is not normally the best bucket for penetrating hard, compacted or stony ground. Those conditions are better suited to a narrower bucket designed specifically for digging.
Built for Regular Grading and Material Handling
Grading buckets often spend long periods in contact with abrasive soil and aggregates, so cutting-edge and floor protection are important. The buckets in this range are designed for regular site use and combine a wide working profile with protection in the main wear areas.
- HB400 abrasion-resistant cutting edge: provides a hard-wearing contact edge for repeated grading, scraping and material movement.
- Reinforced wear strips: help protect and strengthen the underside of the bucket floor.
- Wide, low-profile shape: improves visibility of the working edge and helps create an even finish.
- Extended flat base: provides a stable surface for levelling and collecting loose material.
- Multiple width options: selected machine classes are available in more than one width, allowing the bucket to be matched more closely to the work.
Bucket construction is only one part of the decision. The bucket weight, width and capacity must also be appropriate for the excavator, hitch and material being handled.
Excavator Grading Bucket Sizes and Widths
The current range covers mini diggers and excavators from 1 to 22 tonnes. Machine weight provides a useful starting point, but it does not confirm fitment by itself. Two excavators in the same weight class can use different pin dimensions or quick-hitch systems.

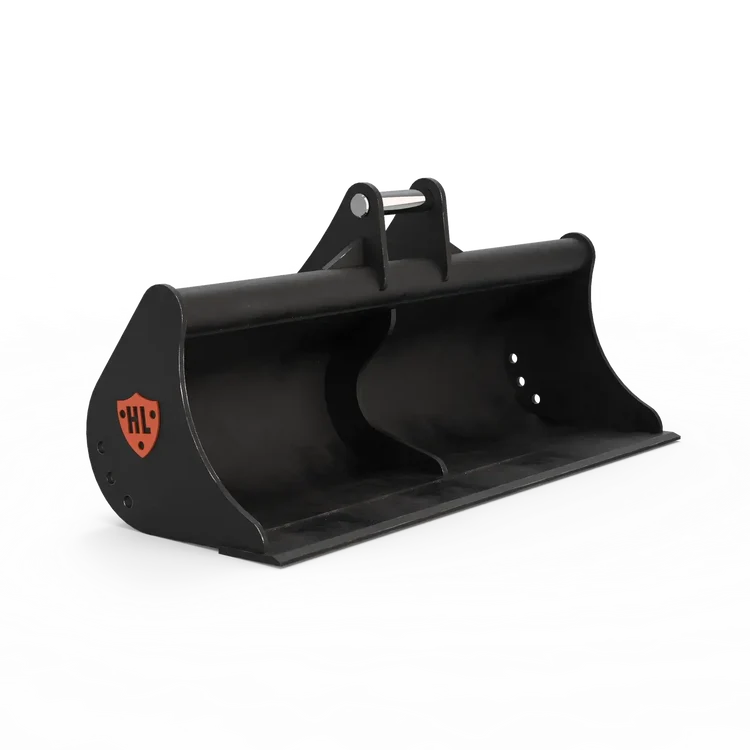

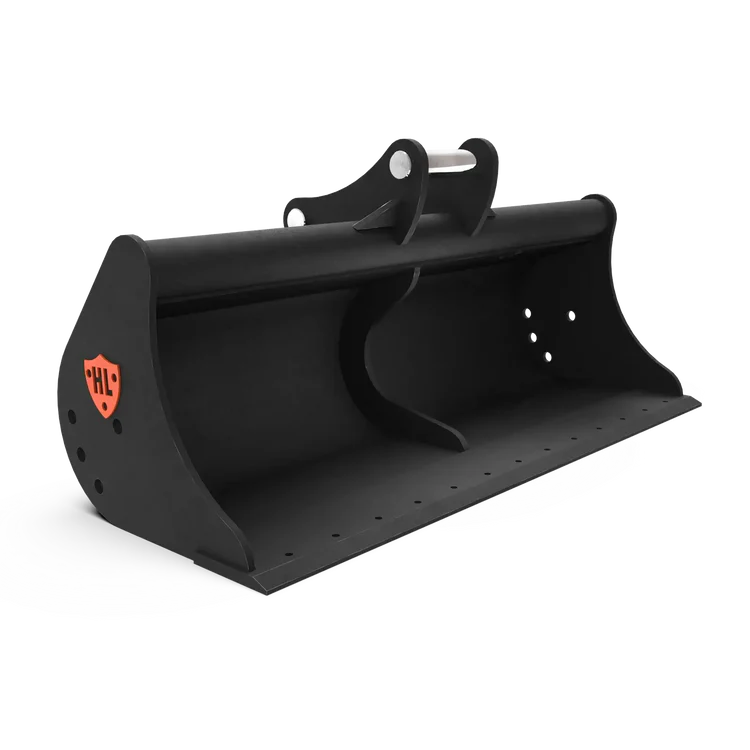

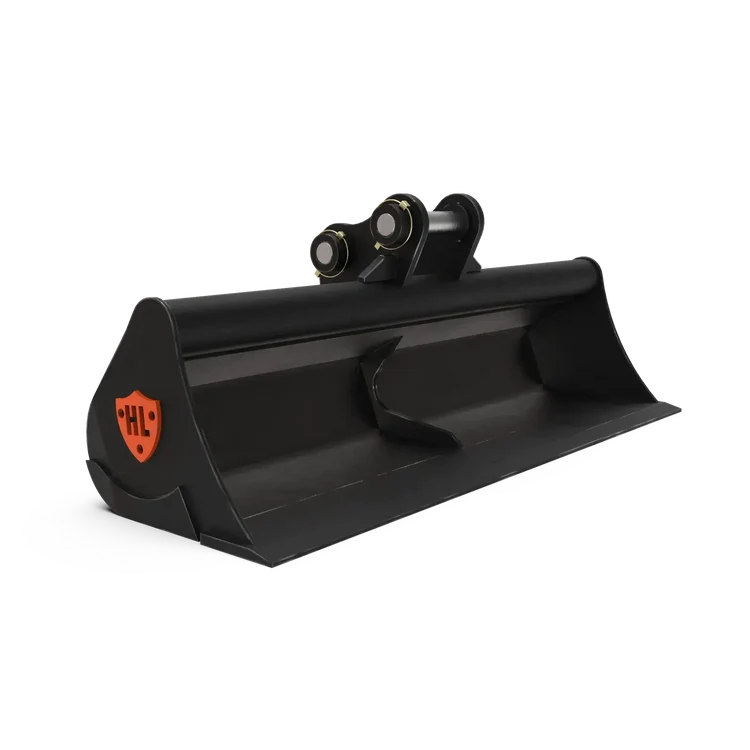

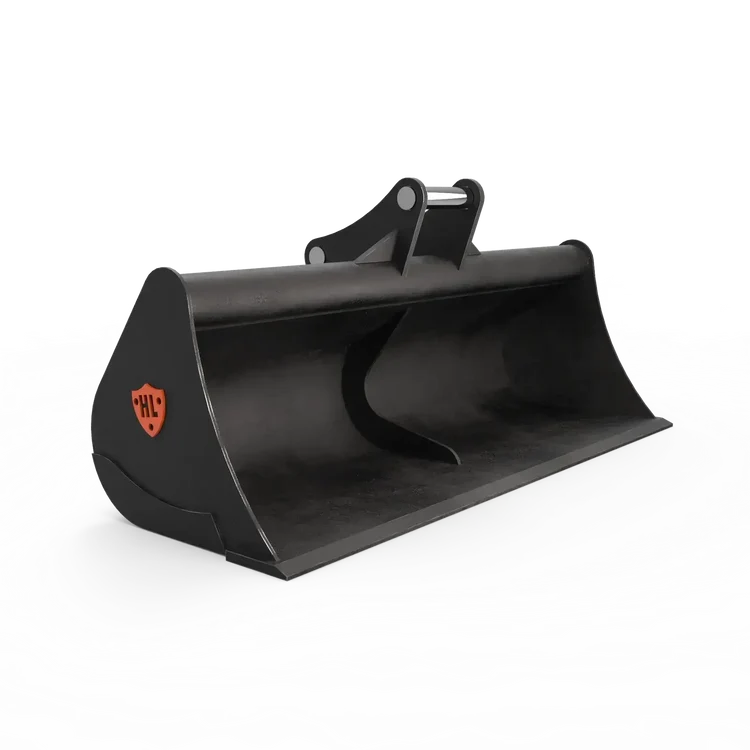

Excavator sizeAvailable bucket widthTypical applications1–2 tonne900mm — approximately 36″Mini digger landscaping, paths, gardens and confined finishing work2–3.5 tonne1200mm — approximately 48″Landscaping, driveway preparation and small groundworks4–6 tonne1200mm or 1500mm — approximately 48″ or 60″General groundworks, ditch cleaning and site finishing6–8 tonne1500mm or 1800mm — approximately 60″ or 72″Construction, landscaping and wider-area grading10–14 tonne1800mm — approximately 72″Bulk material handling, civil engineering and large groundworks15–22 tonne2100mm or 2400mm — approximately 84″ or 96″Large-scale grading, earthworks and ditch maintenance
Widths are based on the current grading bucket range. Check the individual product page for bucket weight, capacity and the exact specification available for each machine class.
How to Choose the Right Grading Bucket
The widest available bucket is not automatically the best choice. A wider bucket can cover ground quickly and move more loose material, but it also increases bucket weight, material load and leverage on the machine. A narrower option may give better control in confined areas or when the excavator is working close to its practical lifting capacity.
Before choosing an excavator grading bucket, check the following:
- Machine make and model: identify the exact excavator rather than relying only on its advertised tonne class.
- Operating weight: attachments and machine configurations can change the actual carrier weight.
- Hitch type: confirm whether the bucket will be fitted directly to the dipper or through a manual, hydraulic or dedicated quick hitch.
- Pin diameter: measure the pins accurately and check both pins if necessary.
- Pin centres: measure from the centre of one pin to the centre of the other.
- Dipper gap: measure the internal distance between the bucket mounting ears.
- Required width: consider the working area, material, desired finish and machine stability.
Never assume that a bucket will fit simply because it is listed for the same machine weight. Quick hitches, aftermarket couplers and different model generations can all change the required linkage dimensions.
Is a Grading Bucket the Same as a Ditching Bucket?
For standard fixed buckets, grading bucket and ditching bucket usually describe the same attachment. Both names refer to a wide bucket with a smooth cutting edge used for levelling, shaping, finishing and clearing loose material from ditches.
The name alone does not define every design. A tilt ditching bucket can be angled hydraulically, while a V-ditching bucket has a shaped profile for forming drainage channels. These should not be confused with the fixed grading and ditching buckets shown in this collection.
Grading Buckets vs Digging Buckets
Grading and digging buckets are intended for different stages of the job:
- Grading or ditching bucket: wide and normally toothless, making it suitable for levelling, finishing, ditch cleaning and handling loose material.
- Digging bucket: narrower and deeper, normally with teeth that help penetrate compacted soil during excavation and trenching.
If the main job involves breaking ground, digging foundations or excavating trenches, compare our excavator digging buckets. Many operators use a digging bucket for the main excavation before changing to a grading bucket for the final shaping and clean-up.
Excavator Grading Bucket FAQs
What is an excavator grading bucket?
An excavator grading bucket is a wide, smooth-edged bucket used for levelling, shaping and finishing ground. It is shallower and wider than a typical digging bucket, allowing it to cover more surface area with each pass.
Are grading buckets and ditching buckets the same?
In most UK construction and plant terminology, a fixed grading bucket and a fixed ditching bucket are the same type of attachment. Ditching bucket, grading bucket, finishing bucket and ditch-cleaning bucket are often used as alternative names.
Do grading buckets have teeth?
Standard grading buckets normally have a smooth cutting edge rather than teeth. This helps the operator produce a level finish without leaving the marks that digging teeth can create.
Can a grading bucket be used for digging?
A grading bucket can collect loose soil, clear existing ditches and complete light excavation, but it is not designed for aggressive digging in hard or compacted ground. A toothed digging bucket is normally more efficient for that work.
What width grading bucket should I choose?
Choose a width that suits the excavator, material and working area. Wider buckets are productive on open levelling work, while narrower buckets can offer better control and place less load on the machine. Always check the bucket weight and manufacturer guidance for the carrier.
Will any grading bucket fit my excavator?
No. Excavator buckets are not universal. Fitment depends on the machine model, hitch type, pin diameter, pin centres, dipper gap and bucket weight. Machines in the same tonne class can still require different linkage dimensions.
Can Mammoth Attachments help confirm fitment?
Yes. Send us the excavator make and model, operating weight, hitch details and linkage measurements. Photographs of the hitch or an existing bucket can also help us check the required specification.
Need Help Choosing a Grading Bucket?
If you are unsure which size, width or linkage you need, use our request a quote form. Include your machine make and model, hitch type, pin diameter, pin centres and dipper gap so we can help identify a suitable bucket.
