Excavator Grading Bucket Sizes: What Width Do You Need?

Choosing a grading bucket width is not simply a case of fitting the widest bucket listed for your excavator. A wider bucket covers more ground per pass, but it is also heavier, holds more material and creates more leverage at reach. The right width is one your machine can control comfortably in the material and space you work in.

As a starting point, the current Mammoth range runs from a 900mm grading bucket for 1–2 tonne mini diggers to 2400mm for 15–22 tonne excavators. Where two widths are available for the same machine class, choose the narrower option for tighter sites, heavier material and greater control; choose the wider option for open, level areas and faster coverage in loose material.

You can compare all available sizes in our excavator grading bucket range. This guide explains how to narrow down the correct width before you order.

Excavator Grading Bucket Size Chart

The table below covers Mammoth's current fixed grading and ditching buckets. It is a range guide rather than a universal industry sizing chart, because bucket specifications and machine capabilities vary between manufacturers.

The imperial descriptions are rounded for familiarity. Use the stated millimetre width when access or finished working width is critical.

What Does Grading Bucket Width Actually Measure?

Grading bucket width normally refers to the working width across the cutting edge. It tells you how wide a pass the bucket can make, but it does not tell you the bucket's capacity or whether its linkage will fit your excavator.

Do not confuse working width with the dipper gap, sometimes called the bucket ear width. The dipper gap is a much smaller linkage measurement taken between the mounting ears. Along with the pin diameter and pin centres, it is used to confirm fitment.

Width and capacity are also different measurements. Two 1500mm buckets can have different depths, profiles, capacities and empty weights. Always read the complete product specification rather than choosing from width alone.

If you are still deciding whether a wide finishing bucket is the correct attachment at all, read our comparison of a grading bucket vs digging bucket. This sizing guide applies to fixed grading and ditching buckets, not hydraulic tilt buckets or V-shaped ditching buckets.

Why the Widest Bucket Is Not Always the Best Choice

A wider grading bucket creates a broader pass and can carry more loose material. On a flat, open site, that may reduce the passes needed to trim an area. The trade-off is that width changes more than surface coverage.

Bucket Weight and Material Capacity

A wider version normally weighs more before any soil enters it and then holds a larger load. The difference is clear in the current range:

• On the 6–8 tonne model, moving from 1500mm to 1800mm increases empty weight from 204kg to 236kg and heaped capacity from 274 to 332 litres.
• On the 15–22 tonne model, moving from 2100mm to 2400mm increases empty weight from 622kg to 688kg and heaped capacity from 815 to 939 litres.
• On the 4–6 tonne model, the 1200mm bucket weighs 146kg and the 1500mm bucket weighs 174kg.

The extra capacity is useful only if the excavator can manage the combined weight of the bucket, hitch and material at the required working radius.

Material Makes a Big Difference

A bucketful of dry topsoil does not place the same demand on the machine as the same volume of wet clay or dense aggregate. If the work regularly involves heavy or saturated material, a narrower bucket may produce better cycle times and feel more controlled than the widest available option.

Grading buckets are intended mainly for loose and previously excavated material. If the surface is hard, compacted or stony, using a digging bucket for the main excavation and changing attachments for the final trim is usually more effective.

Reach, Ground and Machine Position

A bucket that feels manageable close to the tracks may place much greater demand on the excavator when the boom is extended. Sloping, soft or uneven ground also provides a less favourable working platform than firm, level ground.

Use the excavator manufacturer's attachment and lifting guidance when checking a proposed combination. The bucket supplier can confirm the attachment specification, but the carrier's capability still needs to be considered for the way it will be used.

Access and Manoeuvring Space

A wide bucket needs room to swing and work. Fences, walls, gate openings, parked plant and live site traffic can make the theoretically faster option awkward in practice. A narrower bucket may complete a confined job with fewer interruptions and less risk of catching surrounding objects.

Which Width Should You Choose for Each Excavator Class?

1–2 Tonne Mini Digger: 900mm

A 900mm fixed grading bucket gives a small excavator a useful finishing edge without becoming excessively wide for typical domestic and restricted-access work. It suits garden landscaping, path preparation, light ditch maintenance and tidying after narrow trenching. The current model weighs 51kg and has a 37-litre heaped capacity.

2–3.5 Tonne Excavator: 1200mm

The 1200mm option is a practical step up for compact machines working on driveways, landscaping projects and small groundwork sites. It covers more surface than the 900mm bucket while remaining suited to the spaces in which 2–3.5 tonne excavators are commonly used. The current bucket weighs 99kg and has a 105-litre heaped capacity.

4–6 Tonne Excavator: 1200mm or 1500mm

Choose 1200mm when the machine works around buildings, services or narrow access, or when controlled trimming matters more than maximum coverage. Choose 1500mm for open landscaping and groundwork where a wider pass will save time. The wider model adds 28kg of empty attachment weight, so the exact carrier and working conditions still matter.

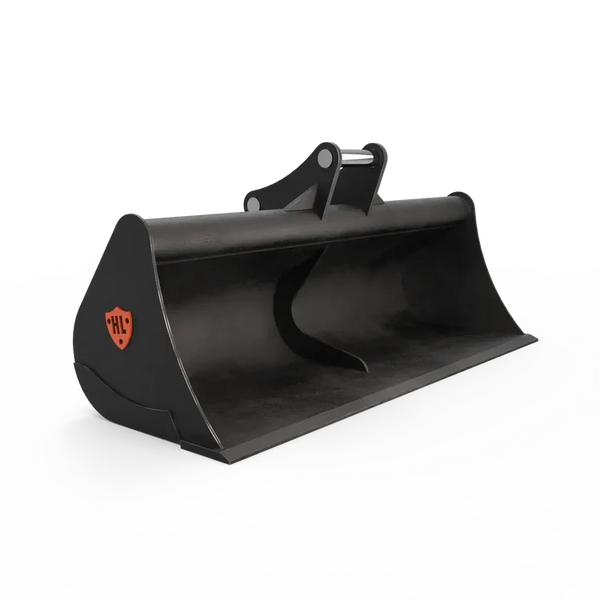

6–8 Tonne Excavator: 1500mm or 1800mm

The 1500mm option is the more conservative choice for mixed duties, tighter sites and heavier loose material. The 1800mm bucket offers 300mm more coverage and 58 litres more heaped capacity, making it attractive for large, level areas. It also weighs 32kg more before loading, so do not judge the choice on pass width alone.

10–14 Tonne Excavator: 1800mm

An 1800mm bucket provides a broad working face for large groundworks, reinstatement, ditch maintenance and civil-engineering sites. The current model weighs 367kg and has a 499-litre heaped capacity. Confirm that the complete loaded attachment suits the machine, coupler and expected working radius.

15–22 Tonne Excavator: 2100mm or 2400mm

Choose 2100mm where manoeuvrability, dense material or control takes priority. The 2400mm model is better suited to high-output grading across open platforms, embankments and earthworks when the machine and conditions support it. Compared with the 2100mm version, it adds 66kg of empty weight and 124 litres of heaped capacity.

Choose the Width Around the Job

The excavator class limits the sensible range, but the job should decide which suitable option is best.

• Confined landscaping: favour the narrower suitable width around walls, fences, paths and planting.
• Driveways and formation levels: a wider bucket can reduce passes on open ground with loose material.
• Ditch cleaning: match the bucket to the existing channel and available access.
• Bank and verge shaping: consider reach, slope and machine position as well as pass width.
• Backfilling: allow for the weight of wet spoil rather than assuming ideal dry material.
• General hire: the narrower suitable option may be more versatile across unknown sites.

Width Does Not Confirm Bucket Fitment

A 1200mm grading bucket for one 3-tonne excavator may not share the same pickup dimensions as a 1200mm bucket for another. Quick hitches, couplers and model changes can alter the required linkage even when the carrier weights appear similar.

Before ordering, confirm:

• Excavator make and exact model
• Machine operating weight and configuration
• Pin-on or quick-hitch fitment
• Quick-hitch make and model, where known
• Pin diameter
• Pin centres
• Dipper gap or internal bucket ear width
• Expected material and main application

Our guide to measuring an excavator for a new bucket shows where to take the three main linkage measurements. Measuring a correctly fitting existing bucket is often the easiest method.

A Simple Grading Bucket Width Checklist

1. Start with the carrier class. Remove any buckets that are not built for the excavator's weight range.
2. Define the main job. Decide whether the bucket will be used mainly for confined landscaping, open grading, ditch cleaning, backfilling or material movement.
3. Check the space. Measure gates, passages and any restricted working areas rather than considering the open part of the site alone.
4. Consider the heaviest regular material. Base the choice on realistic wet or dense material, not the lightest load the bucket might carry.
5. Compare weight and capacity. Include the bucket, hitch and expected load rather than looking only at width.
6. Think about reach and ground conditions. Open, level work is different from reaching across a ditch or working on a slope.
7. Confirm linkage dimensions. Never order from the tonne class and width alone.

Frequently Asked Questions

What size grading bucket should I use on a mini digger?

For Mammoth's current range, a 1–2 tonne mini digger is paired with a 900mm grading bucket, while a 2–3.5 tonne compact excavator is paired with a 1200mm model. The exact machine, hitch and intended material must still be checked before ordering.

Is a wider grading bucket better?

It is better for covering open ground quickly when the machine can manage the bucket and material comfortably. A narrower bucket can be better on confined sites, in dense or wet material, at longer reach or where precise control is more important.

How wide is a 48-inch grading bucket in millimetres?

A true 48 inches is 1219.2mm, but a nominal 48-inch bucket in the UK may be a 1200mm model, which is approximately 47.2 inches. Check the stated metric dimension instead of relying on a rounded description.

Does grading bucket width include the side plates?

Width usually refers to the nominal working or cutting-edge width, but measurement conventions can vary. Check the individual product specification or confirm the overall dimension if the bucket must pass through a restricted opening.

Can I fit a 1500mm grading bucket to any 5-tonne excavator?

No. A 1500mm bucket may be available for the 4–6 tonne class, but suitability depends on the exact excavator, hitch, linkage, attachment weight, material and working conditions. Confirm the complete combination before ordering.

Compare Excavator Grading Bucket Sizes

Start with the correct carrier class, then choose between the available widths according to material, access, working radius and the finish you need. The widest model can be productive on a suitable open site, but a lighter, narrower bucket is often the more useful choice for mixed or restricted work.

Browse our complete range of grading and ditching buckets for excavators, covering machines from 1 to 22 tonnes. For digging, tilt and other attachment types, visit the main excavator bucket range.
