A grading bucket and a digging bucket may attach to the same excavator, but they are built to do different parts of the job. A digging bucket is designed to cut into the ground and remove material. A grading bucket is wider, normally has a smooth cutting edge and is intended to level, shape and finish the surface.
The short answer: use a digging bucket when you need penetration and excavation; use a grading bucket when you need coverage, control and a cleaner finish. On many groundwork jobs, the most efficient answer is not one or the other. It is to dig with one and finish with the other.
If the excavation is already complete and you need to spread material, shape a bank or leave the ground tidy, compare our fixed grading and ditching buckets. If the job starts with breaking ground, trenching or digging foundations, browse our excavator digging buckets.
Grading Bucket vs Digging Bucket at a Glance
| Feature | Digging bucket | Grading bucket |
|---|---|---|
| Main purpose | Penetrating ground and excavating material | Levelling, shaping and finishing ground |
| Typical shape | Relatively narrow and deep | Wide with a long, flatter base |
| Cutting edge | Usually fitted with teeth | Normally smooth and toothless |
| Best suited to | Trenches, foundations and general excavation | Backfilling, landscaping, ditch cleaning and final trim |
| Ground conditions | Undisturbed, compacted or stony ground | Loose soil, topsoil, aggregate and previously excavated material |
| Finish left behind | Functional but often marked by teeth | Broader, smoother and more even |
| Main limitation | Slower for covering and finishing wide areas | Poorer penetration in hard ground |

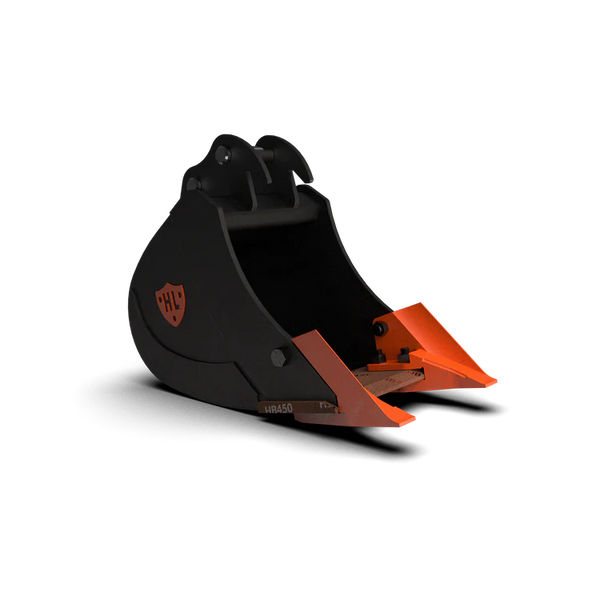

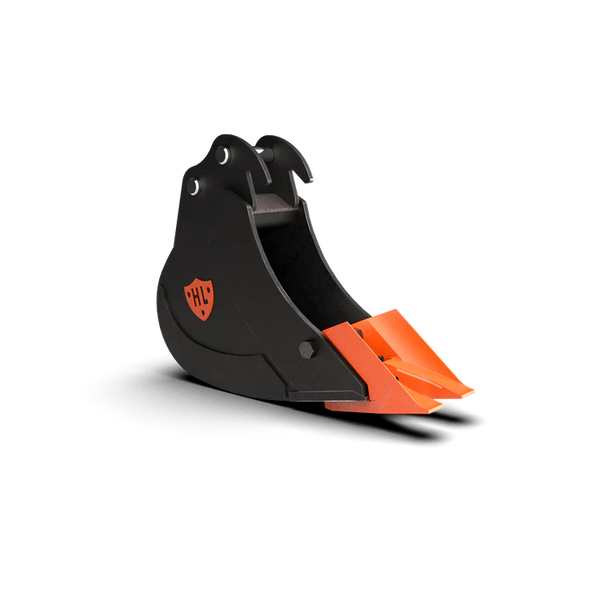

What Is a Digging Bucket?
A digging bucket is the everyday excavation bucket found on most excavators and mini diggers. Its narrower profile concentrates the machine's digging force across a smaller cutting edge, while the teeth help break into soil, clay and mixed ground.
Digging buckets are also deeper than most grading buckets. This shape helps retain excavated material as the bucket is curled and lifted from a trench or foundation.
Typical digging bucket jobs include:
- Opening drainage and utility trenches
- Excavating foundations and footings
- Removing soil during site preparation
- Digging ponds, pits and landscaping features
- Loading excavated material
- Working in compacted or stony ground
Digging buckets are available in many widths because the job still matters. A narrow bucket is useful where the trench needs to remain tight, while a wider digging bucket can remove more material per pass in easier ground. Even so, its main job remains excavation rather than surface finishing.
What Is a Grading Bucket?
A grading bucket is a wide bucket designed to work across a larger area with each pass. Most fixed grading buckets have a smooth cutting edge, a relatively shallow profile and a longer, flatter base than a digging bucket. This gives the operator a useful surface for trimming high spots, spreading loose material and creating a more consistent finish.
Common grading bucket jobs include:
- Levelling topsoil and sub-base
- Spreading loose soil, stone and aggregate
- Backfilling trenches after utilities have been installed
- Cleaning silt and loose material from existing ditches
- Shaping banks, verges and gentle slopes
- Preparing ground for turf, paving or landscaping
- Completing the final site tidy-up
In the UK, a fixed grading bucket is also commonly called a ditching bucket. The two names usually refer to the same wide, smooth-edged attachment. A hydraulic tilt bucket or V-shaped ditching bucket is different, so it is worth checking the actual design rather than relying on the name alone.
Which Bucket Should You Use for Each Job?
Breaking New or Compacted Ground
Choose the digging bucket. The teeth and narrower cutting width help the bucket enter resistant ground. Trying to force a wide grading bucket into compacted clay or stony soil can be slow and places unnecessary demand on the machine.
Digging Trenches, Foundations or Footings
A digging bucket is normally the correct choice. It gives better penetration and allows the excavation width to be controlled more accurately. Choose a width that suits the trench specification rather than removing more ground than necessary.
Levelling Soil or Sub-Base
Choose the grading bucket. Its width covers more ground per pass, while the smooth cutting edge avoids the grooves left by bucket teeth. The longer base also gives the operator a better reference when trimming the surface.
Cleaning an Existing Ditch
A grading or ditching bucket is generally better for removing loose silt, vegetation and spoil while reshaping the sides. If you are cutting a new ditch through firm ground, a digging bucket may be needed first. The grading bucket can then complete the final profile.
Backfilling a Trench
A grading bucket is usually faster for spreading the excavated material and tidying the surface. Its broad edge can pull material into the trench and smooth the area afterwards. Compaction should still be completed using equipment and methods appropriate to the work specification.
Loading Loose Material
Both buckets can load material, but the best option depends on the space, material and machine. A grading bucket can collect a broad pass of loose, lightweight material. A digging bucket is often easier to fill where the pile is compacted or access is restricted.
Can You Dig With a Grading Bucket?
Yes, within limits. A grading bucket can scrape away soft surface material, collect loose soil and carry out light excavation. It can also clean a ditch that has already been formed. What it does not do well is aggressive penetration into hard, compacted or rocky ground.
The problem is not simply the lack of teeth. A grading bucket presents a wider edge to the ground, which creates more resistance. Its width, bucket weight and the amount of material it can hold also affect the load placed on the excavator. Using the grading bucket for the finishing stage is normally quicker and kinder to the machine than asking it to complete the entire excavation.
Can You Grade With a Digging Bucket?
A skilled operator can carry out rough grading with a digging bucket, especially by using the bucket base or back-dragging loose material. This may be sufficient where appearance and final tolerance are not important.
However, the narrower width means more passes, and teeth can leave ridges in the surface. When the job calls for a tidy finish across a driveway, lawn, formation level or landscaped area, changing to a grading bucket will normally produce a more consistent result with less reworking.
Do You Need Both Buckets?
For contractors who regularly complete a job from excavation through to handover, owning both is usually more productive than trying to make one bucket do everything.
Consider a typical drainage job:
- Use the digging bucket to open the trench.
- Install the drainage or utility work.
- Use the grading bucket to move loose backfill, shape the surrounding ground and complete the final tidy.
The same principle applies to landscaping and general groundworks. Digging buckets do the cutting and excavation; grading buckets do the spreading and finishing. A quick hitch can make the changeover faster, but the bucket still needs to be compatible with the hitch and suitable for the machine.
Which Bucket Should You Buy First?
If you are starting with no buckets and expect to carry out general excavation, a digging bucket is normally the more important first purchase. It can dig, load and complete basic rough grading, even if it is not the quickest attachment for the final finish.
If your excavator already has a serviceable digging bucket, adding a grading bucket is often the next useful step. It can make landscaping, backfilling, ditch maintenance and final site work considerably more efficient.
Your workload should make the final decision:
- Groundworkers and drainage contractors: a digging bucket first, followed by a grading bucket for backfilling and finishing.
- Landscapers: both are useful, but a grading bucket may spend more time on the machine once the main excavation is complete.
- Plant hire fleets: offering both gives the customer a more practical attachment set for a complete job.
- Farm and estate maintenance: choose based on whether the regular work is excavation or ditch and surface maintenance.
Bucket Width and Compatibility Still Matter
Choosing the correct bucket type is only the first step. A bucket also needs to be suitable for the excavator's operating weight, lifting capability, linkage and quick hitch.
The widest grading bucket available for a machine class is not automatically the best option. Extra width can improve coverage, but it also adds attachment weight, increases leverage and allows the bucket to hold more material. A slightly narrower bucket may give better control on confined sites or when working with dense, wet material.
Before ordering either type, confirm:
- Excavator make and model
- Machine operating weight
- Pin-on or quick-hitch fitment
- Pin diameter
- Pin centres
- Dipper gap or bucket ear width
- Required working width
- Material and typical application
Our guide to measuring an excavator for a new bucket explains how to check the three key linkage dimensions. Machine weight alone does not guarantee fitment, particularly where an aftermarket quick hitch has been installed.
Frequently Asked Questions
What is the main difference between a grading bucket and a digging bucket?
A digging bucket is designed to penetrate the ground and excavate material. A grading bucket is wider, normally toothless and designed to level, shape and finish loose or previously excavated material.
Is a grading bucket the same as a ditching bucket?
In common UK terminology, a fixed grading bucket and fixed ditching bucket are usually the same type of attachment. Tilt ditching buckets and V-shaped ditching buckets are specialist designs and should be treated separately.
Why do digging buckets have teeth?
Bucket teeth concentrate force at several points along the cutting edge, helping the bucket penetrate compacted soil, clay and mixed ground. Worn or unsuitable teeth can reduce digging performance.
Why are grading buckets wider?
The extra width lets the operator cover more surface area with each pass. This makes a grading bucket more efficient for spreading material, trimming high spots and producing an even finish.
Do grading buckets need teeth?
Standard grading buckets normally use a smooth cutting edge because teeth can mark the finished surface. Specialist designs are available, but a toothless edge is the usual choice for levelling and finishing work.
Will any grading or digging bucket fit my excavator?
No. Compatibility depends on the excavator, hitch system, pin diameter, pin centres, dipper gap, bucket weight and intended application. Always confirm fitment before ordering.
Find the Right Bucket for the Job
The choice becomes straightforward once you separate excavation from finishing. Use a digging bucket to break ground, form the excavation and remove compacted material. Change to a grading bucket when the priority becomes levelling, shaping, backfilling or leaving a clean surface.
Browse the complete Mammoth Attachments range of excavator grading buckets for machines from 1 to 22 tonnes. If you want to compare other attachment styles, visit our main excavator bucket range.
Not sure which bucket or linkage you need?
Send us your excavator make and model, operating weight, hitch details and bucket measurements. We can help check the most suitable option before you order.
