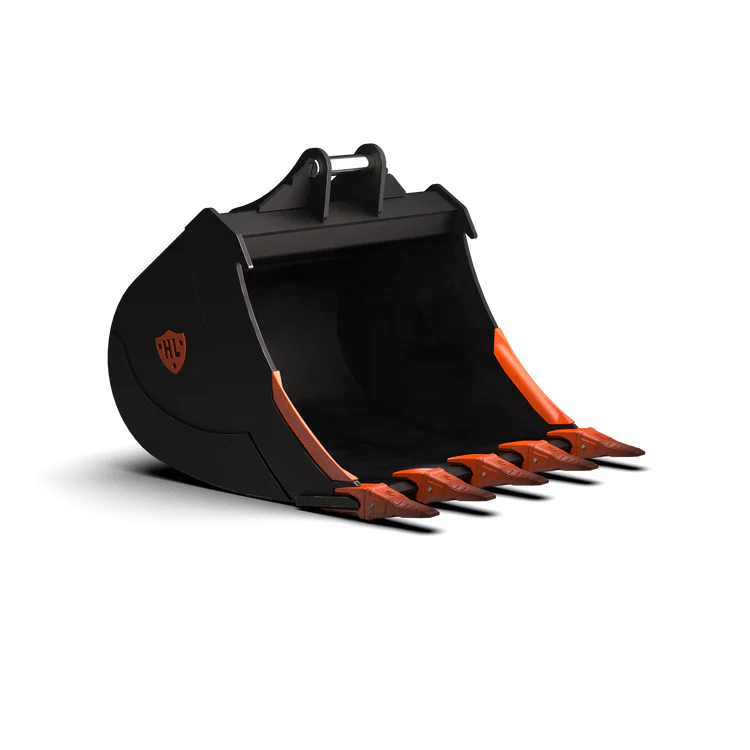

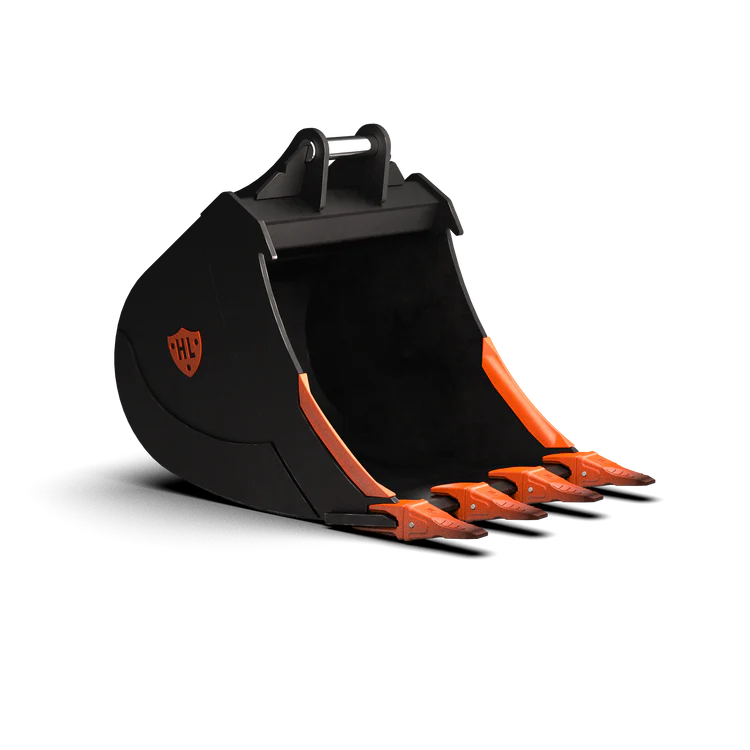

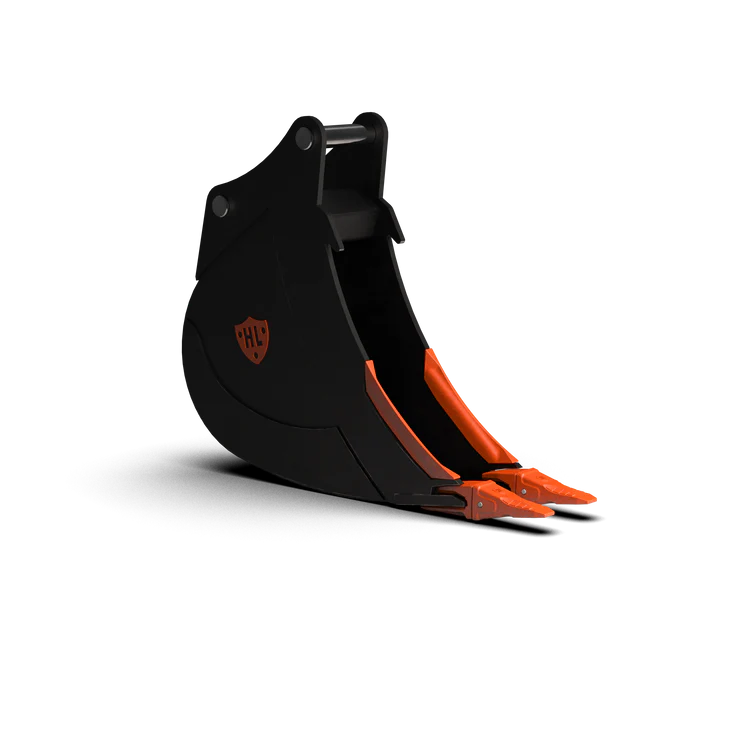

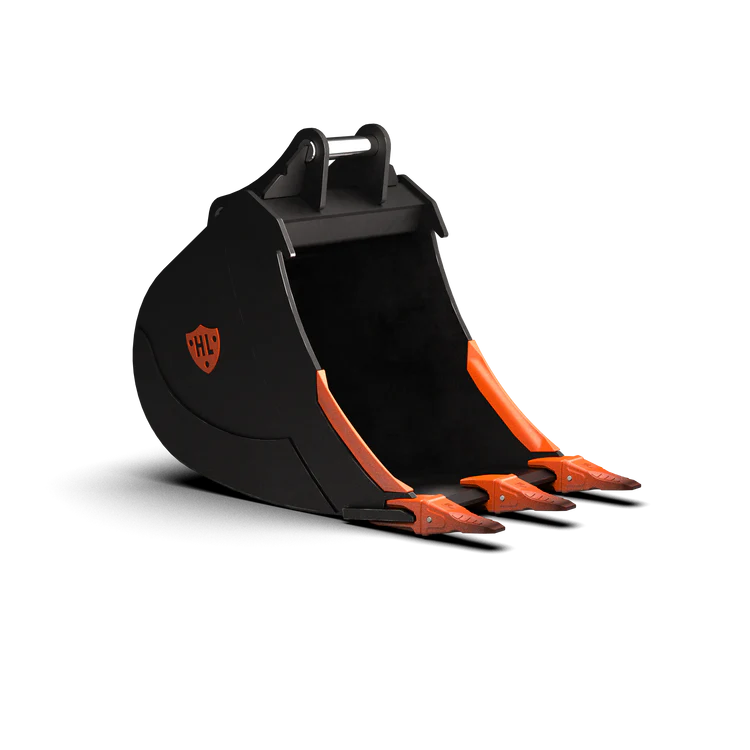

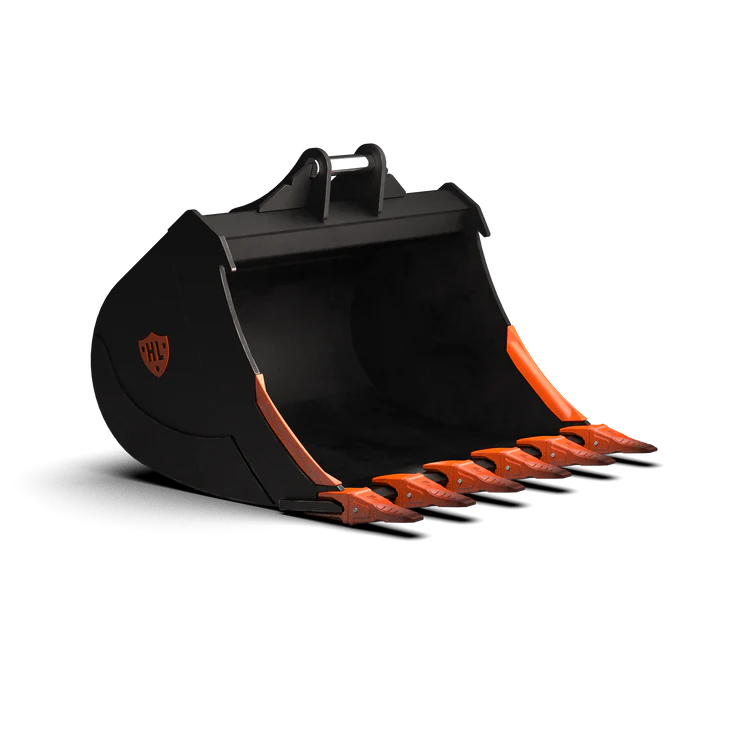

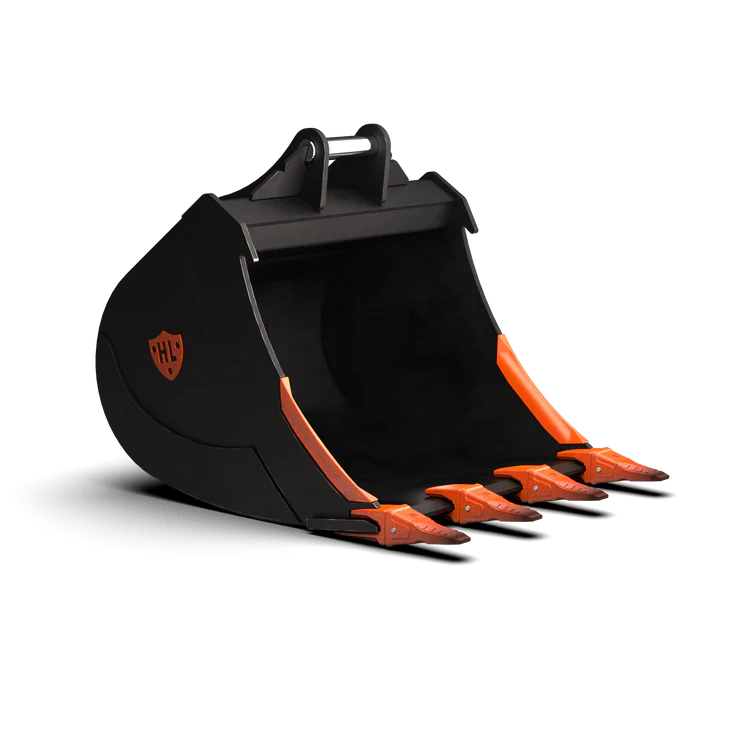

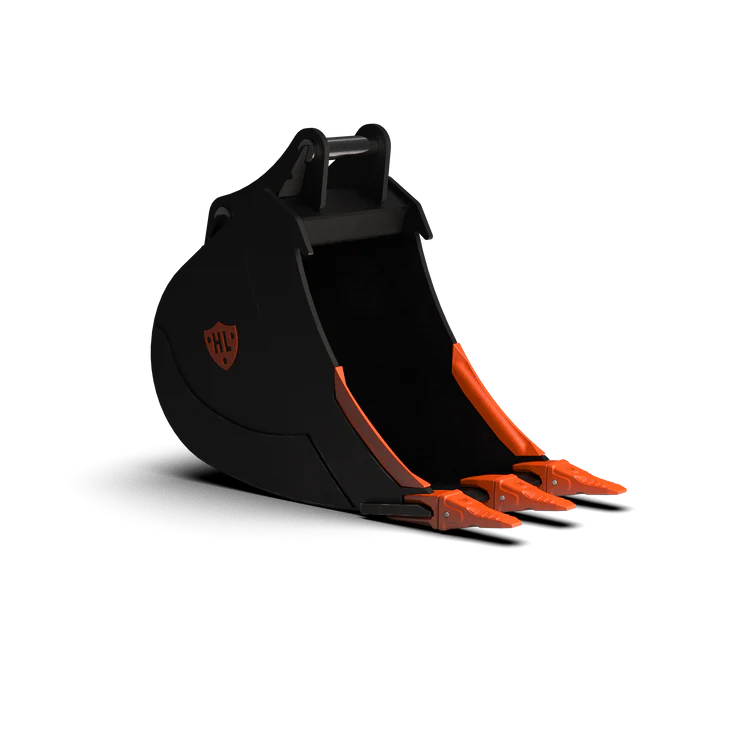

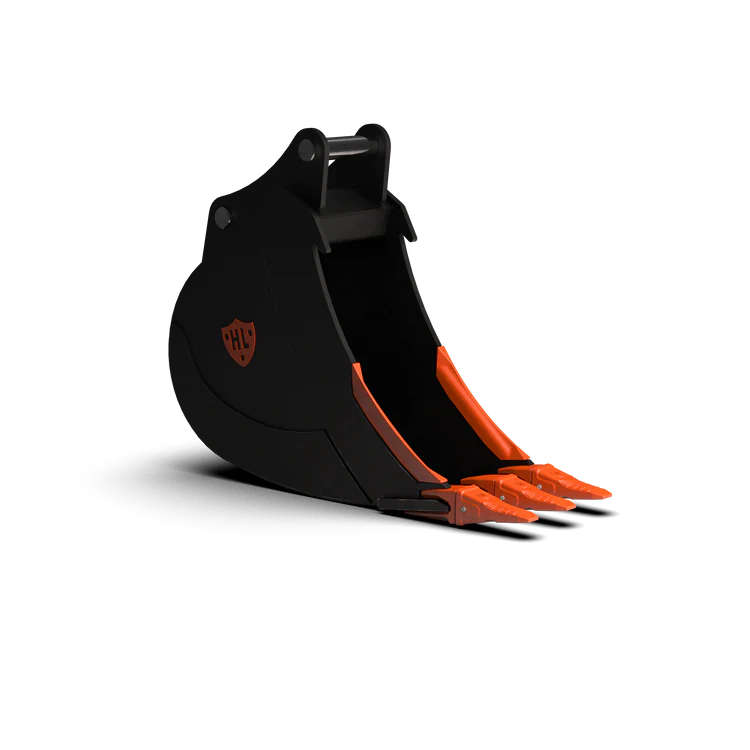

10-14 Tonne Excavator Digging Bucket
300mm
£885.00 Ex. VAT
£1,062.00 Inc. VAT
Skip to product information
Request a Quote
10-14 Tonne Excavator Digging Bucket
Delivery within 7-10 Working Days*
£885.00 Ex. VAT
£1,062.00 Inc. VAT
Not sure which option to choose? Click below to request a quote and we’ll come back with pricing, lead time and guidance.
The 10-14 tonne excavator digging bucket is a heavy-duty general-purpose bucket for larger excavators used in construction, groundworks, civil engineering, agriculture and bulk earthmoving. It is designed for operators who need a strong everyday digging bucket for trenching, foundations, drainage preparation, site clearance and high-volume excavation work.
This bucket is suitable for 10-14 tonne excavators and is available in a choice of widths from 300mm to 1350mm. Narrower widths are suited to service trenches, drainage runs, footings and more controlled digging, while wider buckets are better for moving larger volumes of material on open excavation, site preparation and earthmoving jobs.
Key Features
- Suitable for 10-14 tonne excavators
- Heavy-duty general-purpose digging bucket for construction, groundworks and earthmoving
- Available in multiple widths from 300mm to 1350mm
- Built for trenching, foundations, drainage preparation and bulk excavation
- Manufactured using abrasion-resistant steel for strength and wear resistance
- Fitted with thickened side edges and wear strips to help protect the bucket floor
- Bolt-on teeth supplied as standard for digging performance
- Different linkage options available to suit your excavator or quick hitch
Available Widths
| Bucket Width | Typical Use |
|---|---|
| 300mm | Service trenches, drainage channels and controlled digging work |
| 450mm | Trenching, footings, utilities and general excavation |
| 600mm | Foundations, groundworks and regular site excavation |
| 750mm | Wider excavation, landscaping and material movement |
| 900mm | Bulk digging, site preparation and open excavation work |
| 1050mm | High-volume digging and larger-scale earthmoving |
| 1200mm | Heavy-duty material movement and bulk excavation |
| 1350mm | Maximum-width option for large open excavation and volume work |
Technical Specification
| Width | Cutting Edge | Side to Side Edge Width | Side Cutter Thickness | Side Wall Thickness | Capacity | Weight |
|---|---|---|---|---|---|---|
| 300mm | 30 x 250mm | 345mm | 25mm | 8mm | 125L | 246kg |
| 450mm | 30 x 250mm | 450mm | 25mm | 8mm | 180L | 264kg |
| 600mm | 30 x 250mm | 600mm | 25mm | 8mm | 257L | 328kg |
| 750mm | 30 x 250mm | 750mm | 25mm | 8mm | 355L | 366kg |
| 900mm | 30 x 250mm | 900mm | 25mm | 8mm | 413L | 422kg |
| 1050mm | 30 x 250mm | 1050mm | 25mm | 8mm | 490L | 464kg |
| 1200mm | 30 x 250mm | 1200mm | 25mm | 8mm | 568L | 508kg |
| 1350mm | 30 x 250mm | 1350mm | 25mm | 8mm | 646L | 552kg |
What Is This Digging Bucket Used For?
This 10-14 tonne digging bucket is suited to larger excavation work where strength, capacity and durability matter. Common applications include trenching, foundations, drainage preparation, utility work, bulk earthmoving, civil engineering, agricultural groundworks, site clearance and general construction work.
For more controlled digging or trench work, choose one of the narrower width options. For moving larger volumes of material, working in easier ground conditions or carrying out open excavation, a wider bucket may be more efficient. The right width depends on the machine, ground conditions and the type of work being carried out.
Fitment and Compatibility
Excavator digging buckets are not universal, so it is important to check compatibility before ordering. The main measurements to confirm are machine weight, pin diameter, pin centres and dipper gap. If your excavator uses a quick hitch or coupler, the bucket must also match that setup.
If you are replacing an existing bucket, measuring the bucket currently fitted to your machine is often the quickest way to confirm the correct fitment. If you are unsure, Mammoth Attachments can help check the correct specification before you order.
Related Bucket Ranges
This product sits within our digging buckets range. For smaller machines, view the 6-8 tonne excavator digging bucket.
FAQs
What machine size is this digging bucket for?
This bucket is designed for 10-14 tonne excavators. Always check your machine and hitch measurements before ordering.
Which width should I choose?
Narrower widths are better for trenches, service runs, drainage channels and controlled digging. Wider widths are better for moving larger volumes of material and general excavation work where capacity is more important.
Is this bucket suitable for bulk excavation?
Yes. The wider width options are well suited to bulk excavation, site preparation, earthmoving and moving larger volumes of material.
Will this bucket fit any 10-14 tonne excavator?
Not automatically. Buckets need to match the machine or quick hitch. Check pin diameter, pin centres and dipper gap before ordering.
Can Mammoth help confirm fitment?
Yes. Send us your excavator model, hitch details and measurements, and we can help check the correct bucket specification before you order.
