Excavator Augers

Excavator augers drill post holes, pile holes and tree pits with the excavator you already have. We supply the Auger Torque range: hydraulic earth drills for 0.75 to 50 tonne excavators, augers from 100mm to 2.4m across, and hitches made to fit your machine.

A working setup has three parts: the earth drill, a hitch to mount it on your dipper and an auger in the diameter you need. Match them to your excavator here:

Excavator size Earth drill Auger and hole sizes Hitch
0.75–1 tonnes Auger Torque 1200 S2, 100–300mm 1200 single pin hitch
1–2 tonnes Auger Torque X1500 S4, 100–400mm X1500–X2500 hitch
1–2.5 tonnes Auger Torque X2000 S4, 100–450mm X1500–X2500 hitch
1.5–3 tonnes Auger Torque X2500 S4, 100–500mm X1500–X2500 hitch
2–4 tonnes Auger Torque 3000 MAX S4, 100–600mm 3000–4500 MAX hitch
2.5–4.5 tonnes Auger Torque 3500 MAX S4, 100–750mm 3000–4500 MAX hitch
3–5 tonnes Auger Torque 4500 MAX S4, 100–900mm 3000–4500 MAX hitch

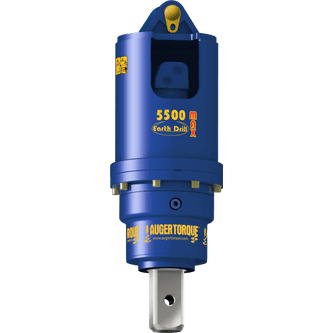

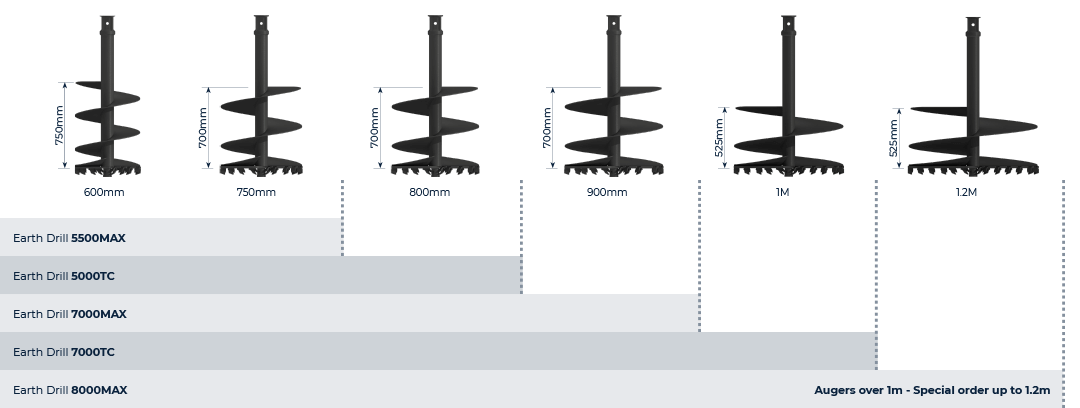

4.5–6 tonnes Auger Torque 5500 MAX S5, 150–750mm 5500–8000 MAX hitch

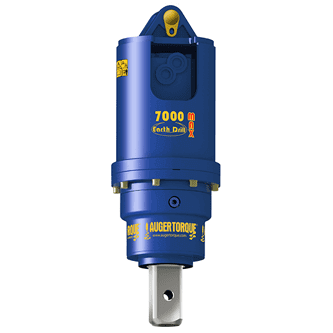

5–7 tonnes Auger Torque 7000 MAX S5, 150–900mm 5500–8000 MAX hitch

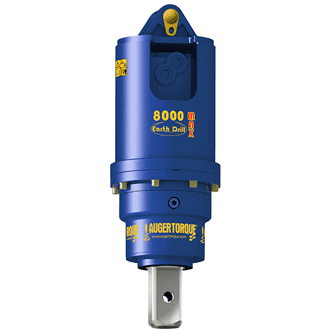

6–8 tonnes Auger Torque 8000 MAX S5, 150–1,000mm 5500–8000 MAX hitch

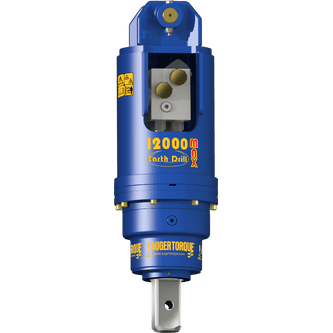

8–13 tonnes Auger Torque 12000 MAX S6, 150–1,000mm 12000–15000 MAX hitch

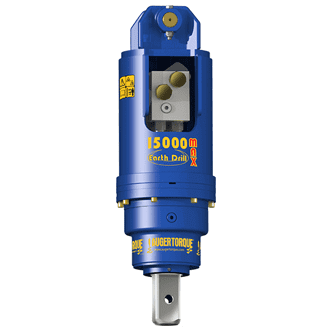

10–15 tonnes Auger Torque 15000 MAX S6, 150–1,200mm 12000–15000 MAX hitch

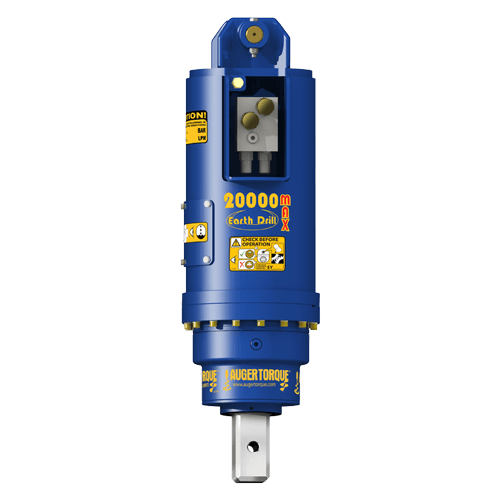

13–20 tonnes Auger Torque 20000 MAX S6, 150–1,000mm 20000–25000 MAX hitch

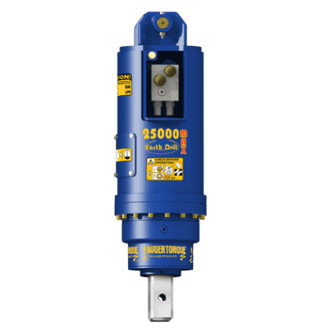

15–22 tonnes Auger Torque 25000 MAX S6, 150–1,500mm 20000–25000 MAX hitch
20–45 tonnes Auger Torque 35,000–65,000 MAX PA, 300–2,400mm Single pin or double pin cradle, quoted with the drive
21–50 tonnes Auger Torque 70,000–150,000 MAX PA, quoted to suit Double pin cradle, quoted with the drive

Not sure which you need? Our guide on what size auger you need explains how to match an earth drill to your machine's weight and hydraulics, or send us your machine details and we'll recommend a setup.

Drilling hard or fractured rock? See the Auger Torque hard rock auger for 10 to 50 tonne excavators. Drilling with a different machine? See the Auger Torque telehandler auger, backhoe auger, skid steer auger and truck crane auger. For deeper holes and spares, see auger extensions and auger teeth and pilots.

Shop by type: auger drives, auger bits, auger hitches and auger drive attachments, or see our mini digger augers for 0.75 to 5 tonne machines. For everything else, browse all our excavator attachments.
Skip to results list
33 items

How an Excavator Auger Works

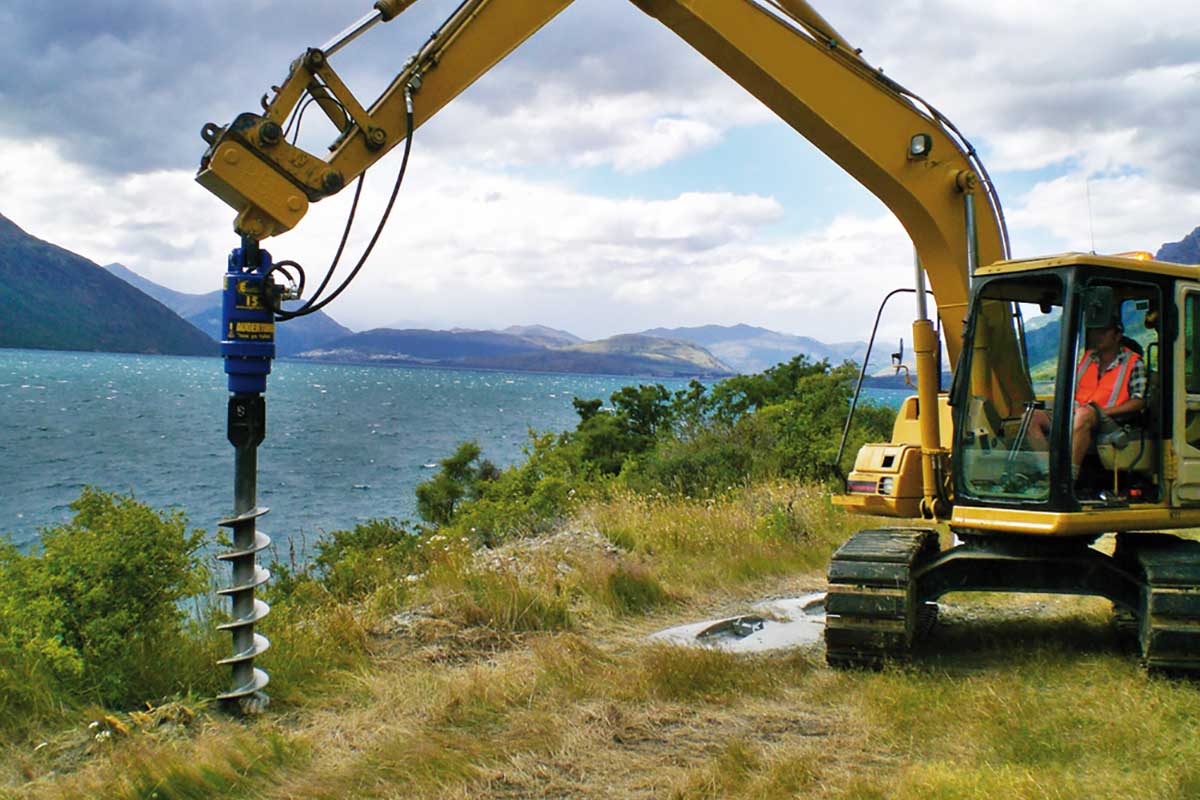

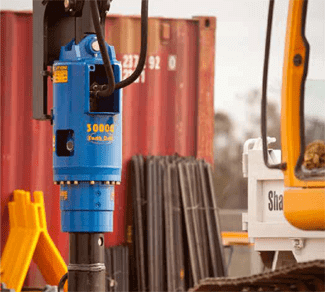

An earth drill is a hydraulic drive unit that hangs from a hitch on your dipper. Oil from your excavator's auxiliary circuit turns its hydraulic motor, which turns the auger. The teeth cut the ground and the flighting lifts the spoil out of the hole.

Oil flow sets how fast the auger turns and pressure sets the torque. The circuit needs to run both ways, so you can reverse the auger to free it.

Choosing an Earth Drill

Start with your excavator's operating weight, then check its auxiliary circuit can supply the drive's oil flow and pressure:

Where two sizes overlap, the bigger drive gives you more torque for larger holes and harder ground, as long as your machine can supply its oil flow. Compare them all in our auger drives.

Choosing an Auger

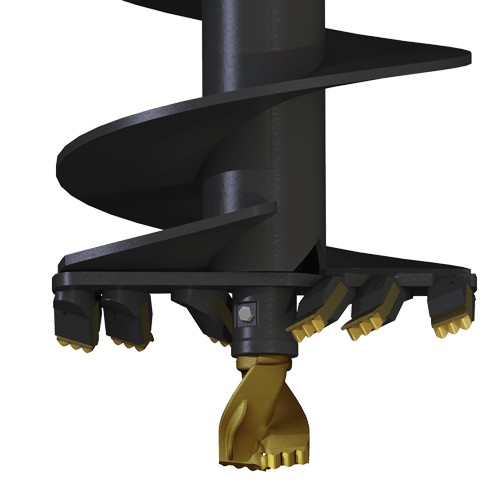

Pick the diameter the job needs, within your earth drill's recommended range, then choose the teeth for the ground:

  • Earth teeth: for clay, topsoil and mixed ground.
  • Tungsten teeth: for harder, abrasive and stony ground.

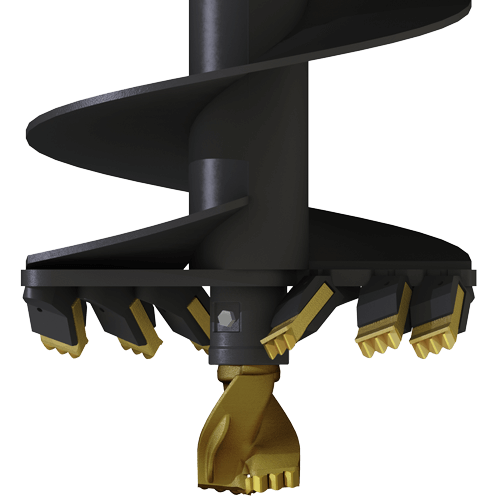

  • Rock teeth: for very hard and fractured rock, on S5 and S6 augers.

See all our auger bits for diameters and lengths.

Hitches

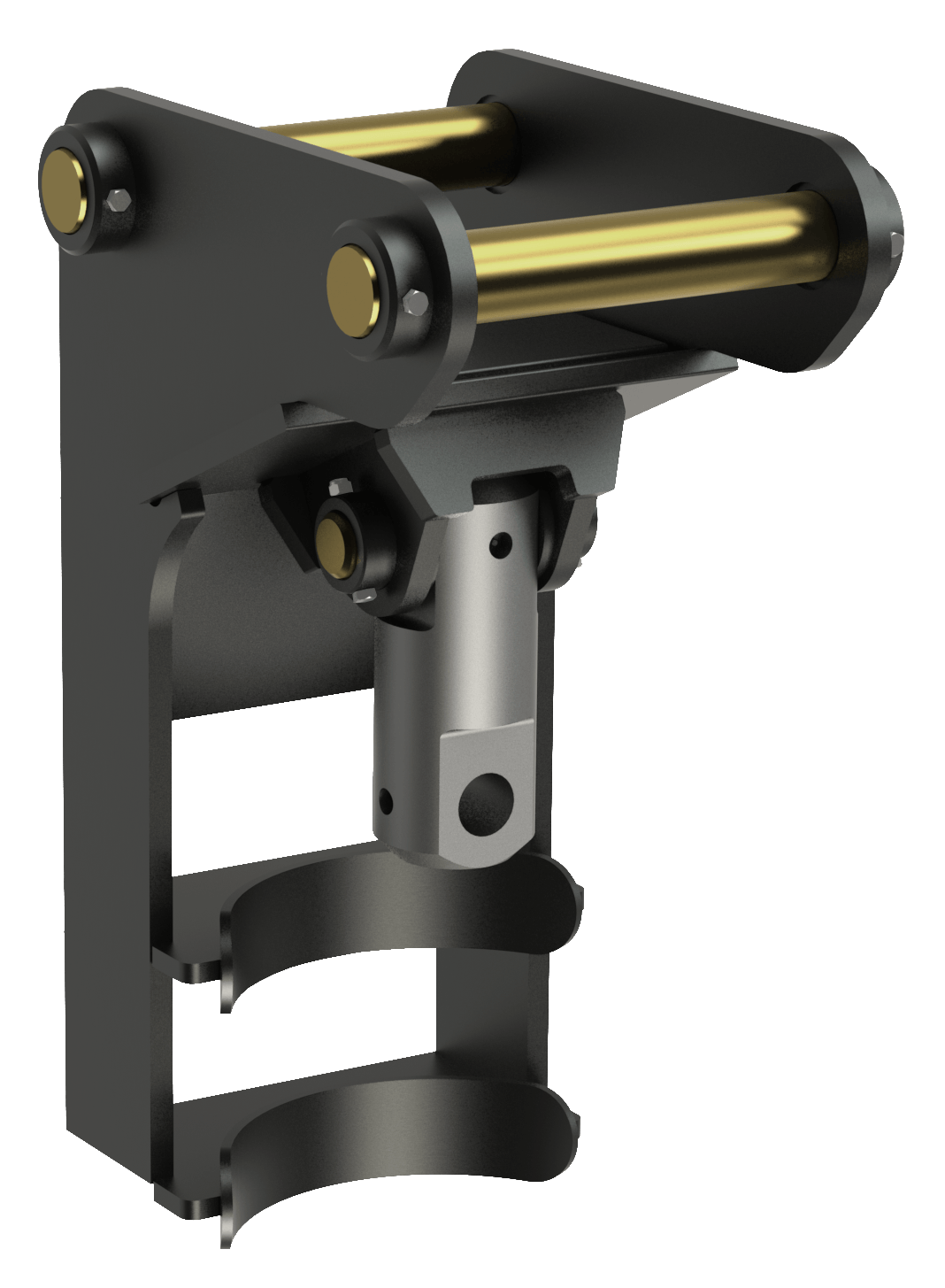

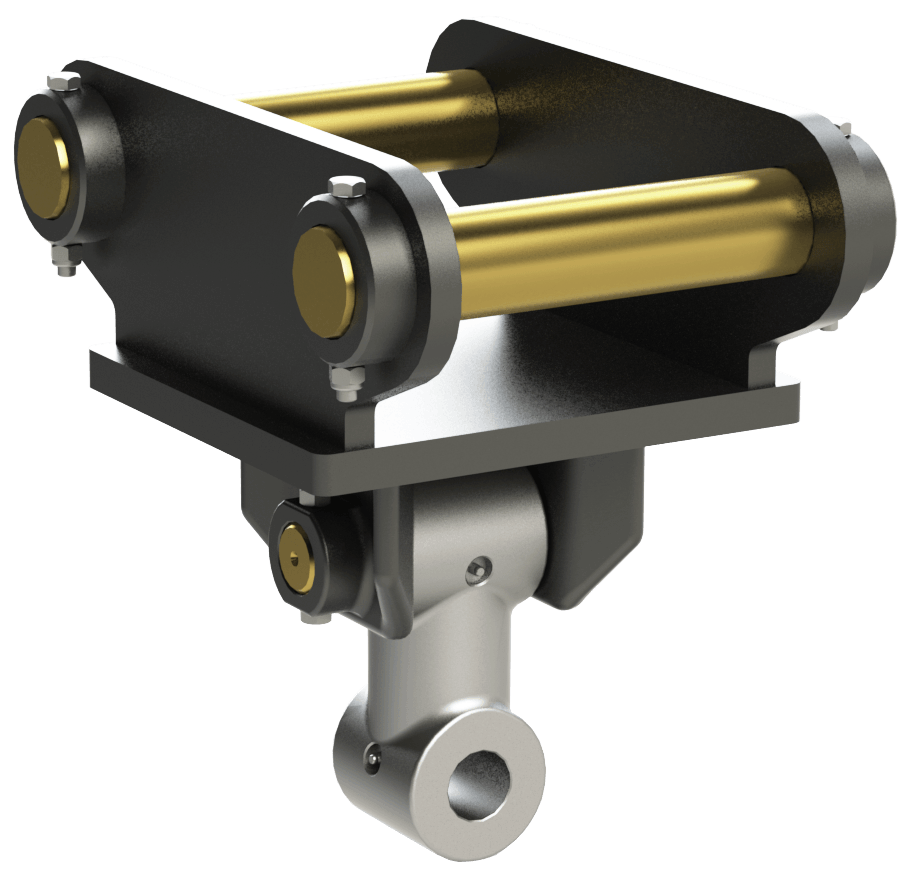

Every earth drill needs a hitch to mount it on your excavator. Ours are made to measure for your pin diameters, pin centres and dipper width. Choose a double pin hitch for a rigid mount, or a double pin cradle hitch for more control over the auger's position and angle on uneven ground. The 1200 uses a single pin hitch. See all our auger hitches.

More Than Post Holes

Swap the auger for a log splitter, a stump planer or a cement mixer bowl and the same earth drill splits logs, planes out tree stumps and mixes concrete. See our auger drive attachments.

Drilling Safely

  • Check for buried cables and pipes before you drill, and follow HSE guidance on avoiding danger from underground services.
  • Keep people well clear of the turning auger.
  • Let the auger cut at its own pace rather than forcing it down.
  • If the auger binds, stop and reverse it to free it.
  • Stay within your excavator's lifting limits when you lift a loaded auger out of the hole.

Frequently Asked Questions

What size holes can an excavator auger drill?

From 100mm to 1,500mm across with the Auger Torque range, depending on the earth drill. The table above shows the range for each drive, and our guide on what size auger you need explains how to choose.

Does an earth drill come with a hitch?

No. The hitch is made to fit your excavator, so it's sold separately. Each earth drill comes with hoses.

Do I need auxiliary hydraulics to run an auger?

Yes. An earth drill needs a two-way auxiliary circuit within its oil flow and pressure range. On the 12000 MAX and larger, an optional 2-way valve converts a single-acting hammer circuit.

How long does delivery take?

Usually 7 to 10 working days. Hitches are made to your measurements, so we confirm them before anything is supplied. Ask us if you need it for a fixed date.
