Excavator Auger Drives

Excavator auger drives, also called earth drills, are the hydraulic drive units that turn an auger. The Auger Torque range covers 0.75 to 50 tonne excavators, from 1,164Nm to 152,319Nm of torque, and drives up to the 25000 MAX come with hoses.

Earth drill Excavator size Max torque Oil flow Pressure Output shaft Hole sizes
Auger Torque 1200 0.75–1 tonnes 1,164Nm 15–32 l/min 30–185 bar 50mm round 100–300mm
Auger Torque X1500 1–2 tonnes 1,496Nm 20–45 l/min 70–205 bar 65mm round 100–400mm
Auger Torque X2000 1–2.5 tonnes 2,190Nm 25–57 l/min 70–240 bar 65mm round 100–450mm
Auger Torque X2500 1.5–3 tonnes 2,847Nm 27–65 l/min 70–240 bar 65mm round 100–500mm
Auger Torque 3000 MAX 2–4 tonnes 2,877Nm 27–75 l/min 80–240 bar 65mm round 100–600mm
Auger Torque 3500 MAX 2.5–4.5 tonnes 3,614Nm 40–85 l/min 80–240 bar 65mm round 100–750mm
Auger Torque 4500 MAX 3–5 tonnes 4,499Nm 50–95 l/min 80–240 bar 65mm round 100–900mm
Auger Torque 5500 MAX 4.5–6 tonnes 5,477Nm 40–115 l/min 80–260 bar 75mm square 150–750mm
Auger Torque 7000 MAX 5–7 tonnes 6,931Nm 60–135 l/min 80–260 bar 75mm square 150–900mm
Auger Torque 8000 MAX 6–8 tonnes 8,152Nm 70–150 l/min 80–260 bar 75mm square 150–1,200mm
Auger Torque 12000 MAX 8–13 tonnes 11,995Nm 80–170 l/min 80–240 bar 75mm square 150–1,000mm
Auger Torque 15000 MAX 10–15 tonnes 15,071Nm 80–170 l/min 80–240 bar 75mm square 150–1,200mm
Auger Torque 20000 MAX 13–20 tonnes 19,564Nm 80–170 l/min 160–240 bar 75mm square 150–1,000mm
Auger Torque 25000 MAX 15–22 tonnes 24,755Nm 80–170 l/min 160–240 bar 75mm square 150–1,500mm

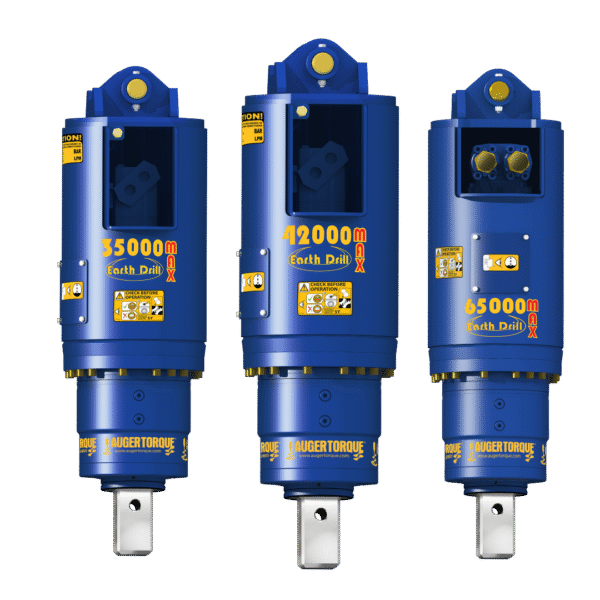

Auger Torque 35,000 MAX 20–45 tonnes 33,500Nm 100–225 l/min 150–240 bar 110mm square 300–1,500mm
Auger Torque 42,000 MAX 20–45 tonnes 42,729Nm 100–225 l/min 140–240 bar 110mm square 300–1,800mm
Auger Torque 65,000 MAX 21–45 tonnes 66,589Nm 100–280 l/min 160–320 bar 110mm square 300–2,400mm

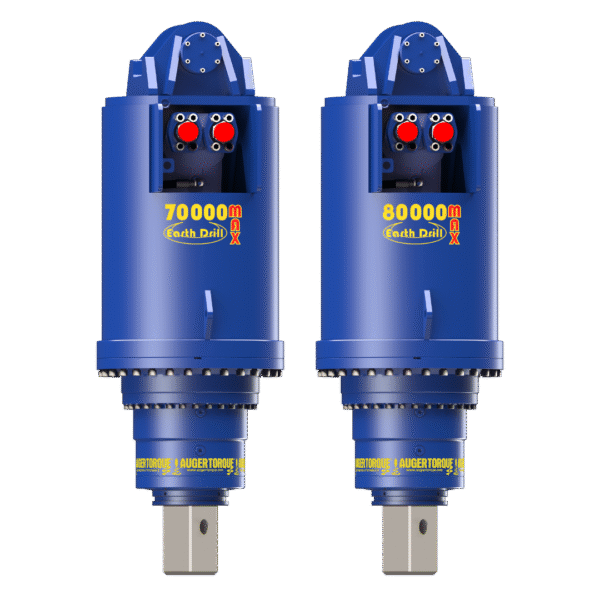

Auger Torque 70,000 MAX 21–45 tonnes 71,280Nm 100–280 l/min 160–300 bar 130mm square or hex 300–2,400mm
Auger Torque 80,000 MAX 21–45 tonnes 80,898Nm 100–280 l/min 160–280 bar 130mm square or hex 300–2,400mm

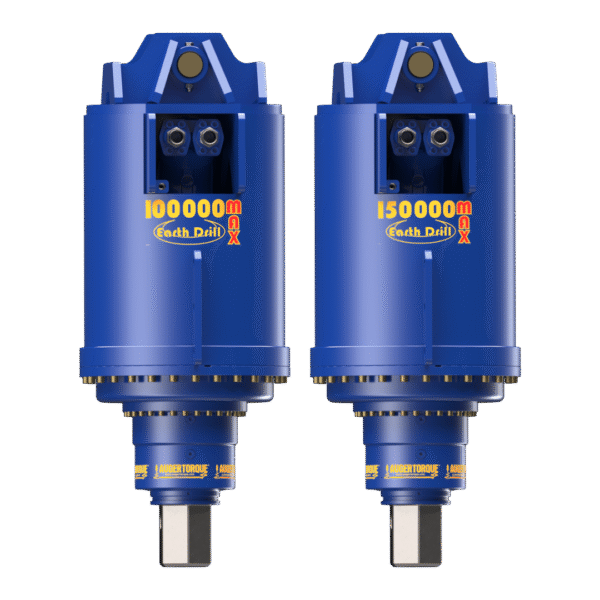

Auger Torque 100,000 MAX 21–50 tonnes 100,069Nm 100–280 l/min 160–350 bar 150mm hex Quoted to suit
Auger Torque 150,000 MAX 21–50 tonnes 152,319Nm 100–340 l/min 160–340 bar 150mm hex Quoted to suit

Each drive also needs a hitch made to fit your machine and an auger that matches its output shaft. Drives from the 35,000 MAX up are quoted with their hitch and augers. Our guide on what size auger you need shows how to match all three, or browse all our excavator augers.

Running a skid steer, backhoe or truck crane? See the Auger Torque skid steer auger, backhoe auger and truck crane auger.
Skip to results list
16 items

What's Inside an Auger Torque Earth Drill

  • Hydraulic motor: a high-quality motor turns the output shaft.
  • Gearbox: the MAX models use an epicyclic (planetary) gearbox to multiply the motor's torque, and the 1200 has a planetary gearbox.
  • Non-dislodgement shaft: a one-piece shaft locked into the drive, so it can't drop out.
  • Oversized bearings: output shaft bearings that Auger Torque says are up to 50% larger than competing drives'.
  • Forged hood ears: on the MAX models, for extra strength where the hood takes the most strain.

Torque, Flow and Pressure

Torque is what turns a big auger through hard ground, so larger holes and tougher ground need a bigger drive. Oil flow sets how fast the auger turns and pressure sets the torque, so check your excavator's auxiliary circuit can supply the drive's flow and pressure before you order.

Output Shafts and Augers

What's Included

Every drive comes with hoses, and all but the 20000 MAX and 25000 MAX come with adaptors too. Quick release couplers aren't included, and on the 20000 MAX and 25000 MAX Auger Torque recommends plumbing the drive in directly. An optional 2-way valve and pressure relief valve are available for the 12000 MAX and larger. The hitch and auger are sold separately.

Frequently Asked Questions

What's the difference between an earth drill and an auger?

The earth drill is the hydraulic drive unit. The auger is the bit it turns to drill the hole.

Which earth drill do I need?

Start with your excavator's weight in the table above, then check its auxiliary flow and pressure. Our guide on what size auger you need explains it step by step.

Can I run an earth drill off a hammer circuit?

An earth drill needs two-way flow. On the 12000 MAX and larger, an optional 2-way valve converts a single-acting hammer circuit. For smaller drives, send us your machine details and we'll check your setup.

How long does delivery take?

Usually 7 to 10 working days. Hitches are made to your measurements, so we confirm them before anything is supplied. Ask us if you need it for a fixed date.
