Low Profile Forklift Carpet Boom
50mm / 1000mm
£1,070.00 Ex. VAT
£1,284.00 Inc. VAT
Skip to product information

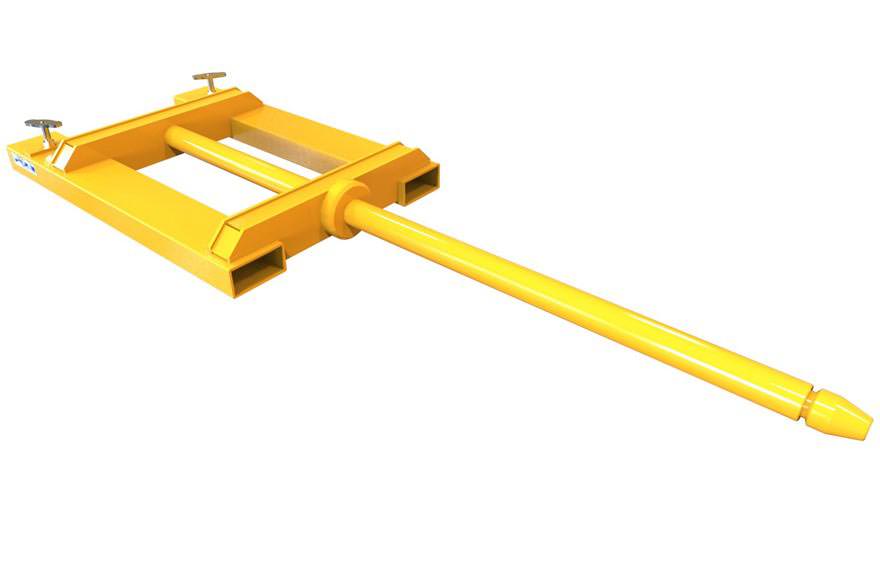

Low Profile Forklift Carpet Boom
Delivery within 15 Working Days
£1,070.00 Ex. VAT
£1,284.00 Inc. VAT
This low profile forklift carpet boom is built for handling stacked rolls, such as loading and unloading carpet and vinyl rolls from a lorry. Its low profile gives the driver a clearer view of the load, and it mounts on your existing forks, so you can switch between pallets and rolls with little downtime.
It's made in the UK by Contact Attachments from EN19T high-grade steel, with a leading-edge nose cone that guides the pole into the roll core without damaging the roll.
Key Features
- Low profile design: handles stacked rolls while giving the driver better visibility
- Drive-in fitting: a free-standing boom with large fork pockets that the driver can fit without help
- Twin heel retention pins: hold the boom securely on the forks
- Leading-edge nose cone: glides into the roll core and protects the roll
- EN19T steel: high-grade steel for strength and a long service life
- Certified: UKCA marked, tested and certificated to the Machinery Directive (2006/42/EC), with a Certificate of Conformity
- Warranty: 3 years
Sizes and Load Capacity
| Pole diameter | Max SWL at 500mm load centre | Pole lengths |
|---|---|---|
| 50mm | 1000kg | 1000mm, 2000mm |
| 60mm | Ask us | 2000mm |
| 65mm | 1250kg | 1000mm, 2000mm, 3000mm, 4000mm |
| 70mm | 1500kg | 1000mm, 2000mm, 3000mm, 4000mm |
| 75mm | 2000kg | 1000mm, 2000mm, 3000mm, 4000mm |
| 80mm | Ask us | 4000mm |
| 85mm | Ask us | 4000mm |
| 90mm | Ask us | 1000mm, 1500mm, 2000mm, 2500mm, 4000mm |
Every size takes forks up to 140 x 55mm, with a 730mm fork spread. The boom has a lost load centre of 1140mm, which reduces your forklift's rated capacity, so check the truck can carry your heaviest roll with the boom fitted.
Choosing the Right Boom
Pick a pole diameter that fits inside your roll's core, with a load capacity above your heaviest roll, and a pole length to suit the roll. If you're unsure, send us your roll length, core size and weight with your forklift make and model through our quote form, and we'll confirm the right model before you order.
Not handling stacked rolls? The underslung forklift carpet boom keeps the roll closer to the truck for everyday roll handling. Compare both in our forklift carpet booms range.
Low Profile Forklift Carpet Boom FAQs
What is a low profile carpet boom?
It's a carpet boom with a low profile design, built for lifting stacked rolls through their core while giving the driver a clearer view of the load.
When should I choose low profile?
When you handle rolls that are stacked, such as loading or unloading them from a lorry, and the driver needs a clear view of the load.
What can it handle?
Carpet, vinyl flooring and other rolled or coiled products with a central core.
How does it fit to my forklift?
Drive the forks into the fork pockets and secure the boom with the twin heel retention pins. It takes forks up to 140 x 55mm.
Is it certified?
Yes. It's UKCA marked, tested and certificated to the Machinery Directive (2006/42/EC), and comes with a Certificate of Conformity and a 3-year warranty.
How long does delivery take?
Delivery is typically within 15 working days. Carriage is added at checkout.
Moving long loads on pallets instead? See our forklift fork extensions, or browse all forklift attachments.
