Mini Dumping Box – 0.17m³ Swarf Box, 500kg, on Castors
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your forklift and the options you need, so every attachment is quoted individually.

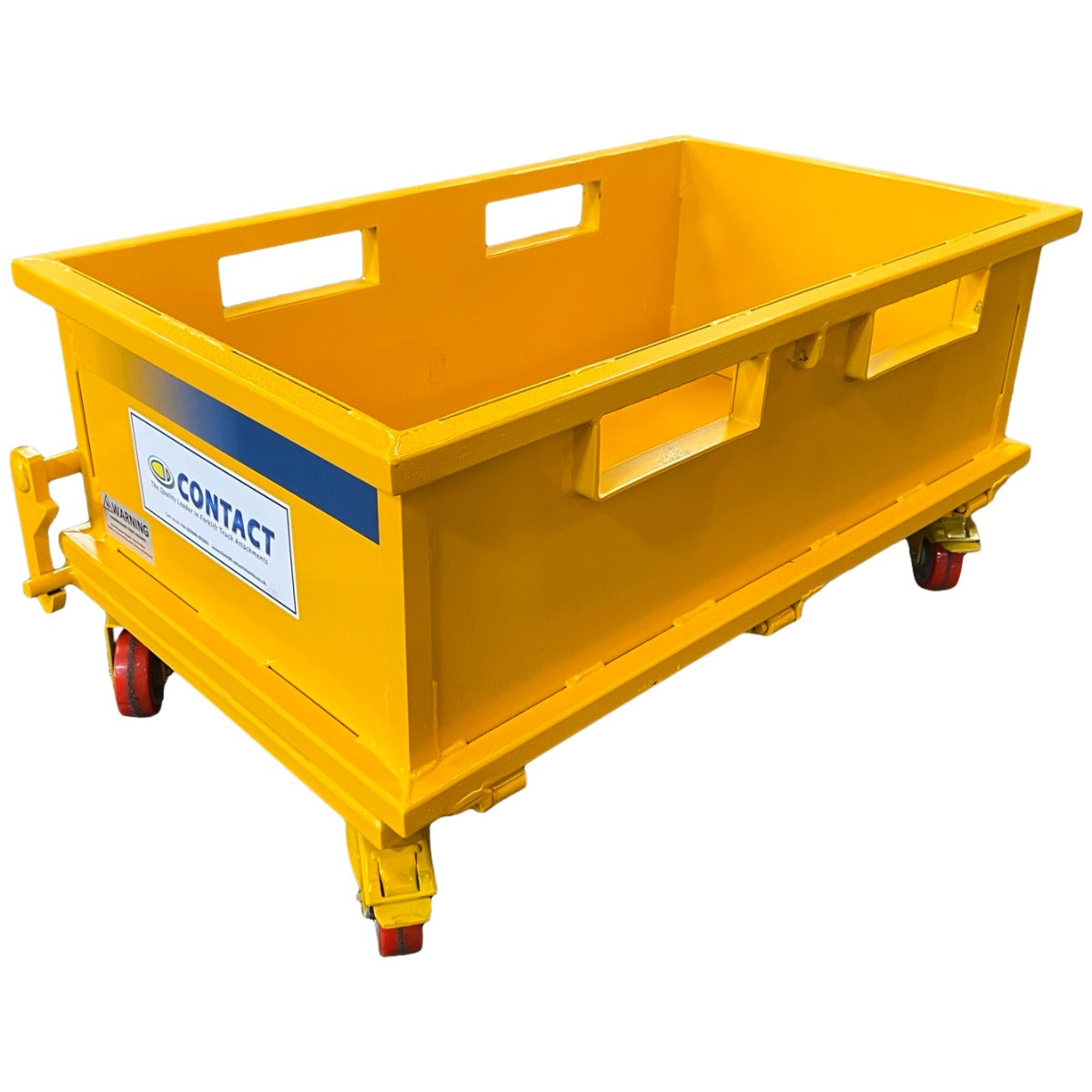

A mini dumping box sits beside the machine to catch dry swarf and small machined scrap, then empties through the bottom. Roll it around on its castors, lift it over the skip with your forklift and pull the cord to drop the base. Lower it to the floor and the base locks again.
It holds 0.17m³ and up to 500kg, and it's made from 3mm steel. 100mm braked swivel castors make it easy to move around the shop floor, integral fork slots take forks up to 200 x 60mm, and a safety chain secures it to the truck.
Specifications
| Model | Volume | Load capacity | Size (L x W x H) | Max fork size | Fork spread |
|---|---|---|---|---|---|
| LL-BDB | 0.17m³ (170L) | 500kg | 638 x 1137 x 505mm | 200 x 60mm | 580mm, outside to outside |
| Release | Manual wire pull cord, base re-locks when lowered |
|---|---|
| Construction | 3mm steel |
| Castors | 100mm braked swivel castors |
| Truck connection | Safety securing chain |
| Loads | Dry swarf and small machined scrap |
| Standards | UKCA marked, Machinery Directive 2006/42/EC |
| Warranty | 3 years |
Key Features
- Compact enough to sit beside a machine
- Bottom release, so there's nothing to tip
- Braked swivel castors
- Integral fork slots and a safety chain
- 500kg capacity in 3mm steel
- 3-year warranty
Before You Order
Use it for dry swarf and small scrap. Check your forks fit the 200 x 60mm slots at a 580mm spread, and that your forklift can lift the box and 500kg to the height of your skip.
Tell us how many machines you're collecting from and we'll help you work out how many boxes you need. Our guide on how to use a bottom emptying stillage covers sizing and emptying. Then request a quote.
Related Attachments
Need more volume? The base emptying stillage holds up to 1.5m³. For swarf on the floor, the magnetic forklift sweeper picks up metal debris as you drive. Compare all our bottom emptying stillages, or browse everything on our forklift attachments page.
Request a quote
Tell us your forklift make and model, and your fork sizes if you have them, and we'll come back with a price, lead time and delivery cost.
