Excavator bucket sizes can refer to several different things: the width of the bucket, its capacity, its physical dimensions and the size of machine it is designed to fit. When somebody asks what size excavator bucket they need, the answer therefore depends on both the excavator and the work being carried out.
A narrow bucket may be ideal for a drainage trench or cable run, while a wider bucket can remove more material during general excavation. However, choosing the widest available bucket is not always the most productive option. Ground conditions, machine stability, digging resistance and the weight of the material all need to be considered.
This guide explains common excavator digging bucket widths, what they are typically used for and how to narrow down the correct size for your machine.
You can compare the available machine classes and width options in our complete range of excavator digging buckets.
What Does Excavator Bucket Size Mean?
Excavator bucket size is commonly used to describe one or more of the following:
- Bucket width: the width of the excavation made by the bucket
- Bucket capacity: the approximate volume of material the bucket can carry
- Machine weight class: the excavator size the bucket is built to suit
- Attachment dimensions: the pin and linkage measurements needed for fitment
- Bucket weight: the empty weight added to the end of the excavator arm
These measurements are related, but they are not interchangeable. For example, two buckets may both be 600mm wide but be built for completely different excavator weight classes.
A 600mm bucket for a compact mini digger will have a different construction, attachment linkage and capacity from a 600mm bucket made for a much larger excavator.
Common Excavator Digging Bucket Widths
Digging buckets are available in a wide selection of widths, from very narrow trenching buckets to wide general-purpose excavation buckets.
The table below provides a practical guide to common widths and the kinds of jobs they are typically selected for. Exact suitability will depend on the excavator, hitch, material and working conditions.
| Bucket width | Typical applications | Main consideration |
|---|---|---|
| 150mm | Narrow cable runs, small pipes and precise trenching | Accurate but carries a relatively small amount of material |
| 230mm | Drainage, utilities and narrow service trenches | Useful balance between access and digging ability |
| 300mm | General trenching, footings and pipework | A versatile narrow digging width |
| 450mm | Foundations, landscaping and everyday groundworks | Good general-purpose option for many machines |
| 600mm | General excavation and moving larger volumes of soil | Greater capacity but increased digging resistance |
| 750mm | Site preparation, wider foundations and open excavation | Best suited to capable machines and workable ground |
| 900mm | Bulk digging, landscaping and wider excavation | Loaded material weight becomes increasingly important |
| 1200mm+ | Larger-scale earthmoving and open excavation | Normally intended for larger excavator classes |
This is a general guide rather than a universal compatibility chart. Before ordering, the width must be considered alongside the machine’s operating weight and attachment measurements.
How Bucket Width Changes Digging Performance
Bucket width affects much more than the finished width of the trench. It also influences penetration, cycle time, capacity and the amount of strain placed on the machine.
Narrower buckets concentrate the digging force
A narrow bucket applies the excavator’s digging force over a smaller cutting area. This can make it easier to penetrate compacted soil, clay and other resistant ground.
Narrow buckets also remove less unnecessary material when creating pipe runs, drainage trenches or utility channels. This can reduce the amount of backfill required and help keep the excavation controlled.
The trade-off is capacity. A narrow bucket may require more digging cycles when a large volume of material needs to be removed.
Wider buckets move more material
A wider bucket can collect more material on each pass, potentially improving productivity in loose soil and open excavations.
However, the machine must overcome greater resistance as a wider cutting edge enters the ground. The excavator must also handle the additional weight of the material inside the bucket.
A wide bucket that works efficiently in dry topsoil may perform very differently in dense clay, wet ground or stony material.
Bucket Widths for Common Excavation Jobs
The right bucket width should be chosen according to the required excavation rather than simply selecting the largest option available.
Cable and utility trenches
Narrow buckets between approximately 150mm and 300mm are commonly selected for cables, small pipes and service runs.
The aim is usually to create a controlled trench without disturbing more surrounding ground than necessary. The required width must still allow suitable clearance around the service being installed.
Drainage trenches
Drainage work may use anything from a narrow 230mm bucket to a wider 450mm option, depending on the pipe diameter, bedding specification and access required around the pipe.
Allow for the complete installation rather than matching the bucket directly to the pipe diameter. Bedding, joints and working clearance may all increase the required trench width.
Footings and foundations
Bucket width for footings depends on the construction design. Common general-purpose widths such as 300mm, 450mm and 600mm may be suitable for different foundation specifications.
The bucket should allow the excavation to be completed accurately without repeatedly widening the trench afterwards.
General groundworks
For mixed groundwork duties, a medium-width digging bucket often provides the most useful compromise. It can retain reasonable penetration while moving more material than a specialist narrow trenching bucket.
Widths such as 450mm and 600mm are frequently chosen for landscaping, foundation work, site preparation and general digging, provided they are appropriate for the machine.
Open excavation and bulk digging
Where precise trench width is less important, a wider bucket may improve output. Buckets of 750mm, 900mm or wider can remove larger volumes of material during site preparation and open excavation.
This only works efficiently when the excavator has enough power, stability and lifting capacity for the bucket and material involved.
Bucket Sizes by Excavator Weight Class
Excavator weight class is the first filter used when selecting a bucket. It determines the general scale of bucket construction suitable for the machine.
1–2 tonne mini diggers
Compact machines are often used for landscaping, domestic groundworks, drainage and restricted-access projects. Narrow buckets are useful for precise trenching, while medium-width options provide more capacity for general digging.
Our 1–2 tonne excavator digging bucket is available in widths from 150mm to 750mm, covering narrow service trenches through to wider excavation work.
2–3.5 tonne excavators
This machine class is widely used for landscaping, utilities, footings, drainage and small construction work. It can accommodate a broad range of bucket widths depending on the application.
View our 2–3.5 tonne excavator digging buckets for available width options.

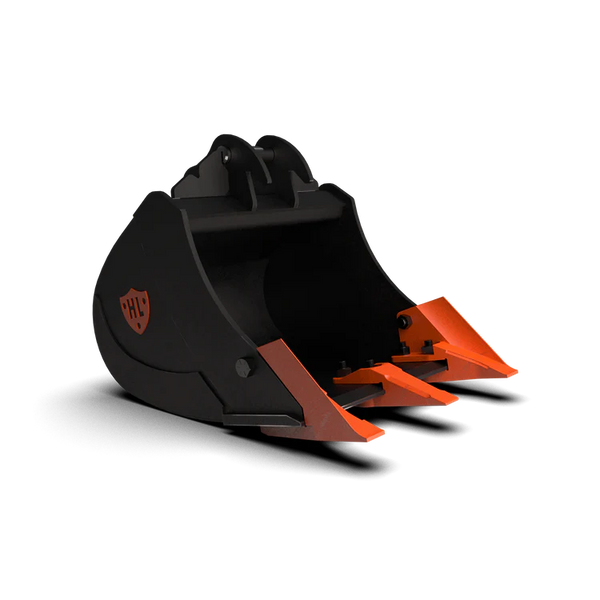

4–6 tonne excavators
Machines in this class are suited to general construction, groundwork and site excavation. Narrow buckets can still be used for utilities and drainage, while wider options offer more capacity for foundations and earthmoving.
Our 4–6 tonne digging bucket is available in widths from 230mm to 900mm.

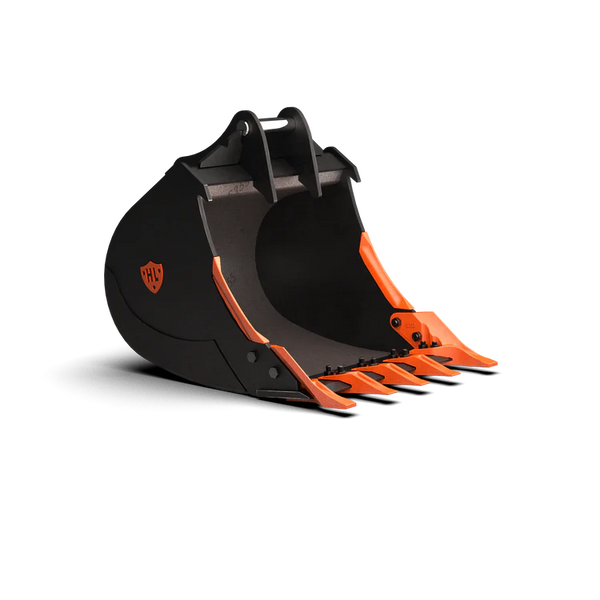

6–8 tonne excavators
A 6–8 tonne excavator can tackle heavier groundwork, site preparation and general earthmoving while remaining compact enough for many urban and restricted-access sites.
The 6–8 tonne excavator digging bucket range includes widths from 230mm to 1200mm.
10–14 tonne excavators
Larger excavators are used for more demanding construction, civil engineering and bulk earthmoving applications. Wider buckets can offer significant capacity, although material density and working radius still need to be considered.
Our 10–14 tonne excavator digging bucket is available in widths from 300mm to 1350mm.
Why Machine Weight Does Not Confirm Fitment
A bucket being listed for the correct excavator weight class does not guarantee that it will fit the machine.
Excavators of a similar weight can use different linkage dimensions. Fitment can also be changed by an aftermarket mechanical or hydraulic quick hitch.
The key measurements normally required are:
- Pin diameter
- Distance between the pin centres
- Internal dipper or ear gap
- Excavator make and model
- Quick-hitch make and model, where fitted
If an existing bucket fits correctly, measuring that bucket is often the easiest way to establish the required dimensions.
Our next cluster article, How to Measure an Excavator for a New Bucket, will show where each measurement should be taken.
Bucket Width Is Not the Same as Bucket Capacity
Width is only one factor affecting how much material a bucket can carry. Capacity also depends on the depth, height, profile and shape of the bucket.
Two buckets with the same width may therefore carry different volumes of material.
Capacity also needs to be considered alongside material density. A bucket full of loose dry soil may weigh considerably less than the same bucket filled with wet clay, stone or dense aggregate.
The total attachment load includes:
- The empty bucket
- The material carried inside it
- The quick hitch or coupler
- The effect of the load at the working radius
For this reason, the bucket with the highest capacity is not automatically the best choice.
How Ground Conditions Affect Bucket Size
Ground conditions can change which bucket width performs most efficiently.
Loose soil and topsoil
Wider buckets generally work well in loose or previously disturbed soil because the excavator encounters less resistance. The extra capacity can reduce the number of cycles required.
Compacted ground
In compacted soil, a narrower bucket may penetrate more effectively. A wide bucket can spread the available breakout force over too large an area, particularly on a smaller machine.
Clay
Clay can be both resistant and heavy. Wet clay may also stick inside the bucket, reducing its usable capacity and preventing a clean discharge.
A narrower or medium-width bucket may be more manageable than an oversized bucket in these conditions.
Stony and abrasive material
For stony or abrasive ground, construction and wear protection become just as important as width. Teeth, cutting edges, side protection and wear strips should all be suitable for regular contact with abrasive material.
Should You Buy More Than One Bucket Width?
For contractors and plant operators carrying out varied work, one bucket width may not cover every task efficiently.
A practical set might include:
- A narrow bucket for drainage, cables and utility trenches
- A medium digging bucket for general excavation and footings
- A wider bucket for open digging and moving loose material
- A grading bucket for levelling and finishing
The exact combination should reflect the work the excavator performs most frequently. There is little value in buying several widths that are too similar to serve genuinely different purposes.
To compare digging buckets with grading, ditching and other designs, browse our broader excavator bucket range.
Common Bucket-Sizing Mistakes
Choosing the bucket based only on trench width
The required trench width matters, but the bucket must also suit the machine, ground and material. A bucket can create the correct trench while still being too large or heavy for efficient use.
Buying the widest bucket the machine can carry
The widest possible bucket may not penetrate difficult ground effectively. Productivity depends on complete digging cycles, not simply the amount the bucket can theoretically hold.
Ignoring the quick hitch
A bucket suitable for the original machine linkage may not fit an aftermarket coupler. Always measure the setup currently fitted to the excavator.
Confusing millimetres and inches
Bucket widths may be described in millimetres or inches. Confirm the actual measurement rather than relying on a rounded conversion or description.
Forgetting the material weight
A wider bucket filled with dense or wet material can create a much larger load than expected. Capacity should be assessed against realistic site conditions.
How to Choose Your Excavator Bucket Width
Use the following process to narrow down the appropriate size:
- Identify the job: decide whether the bucket is primarily for drainage, trenching, foundations, general excavation or bulk digging.
- Confirm the required excavation width: include clearance, bedding and access rather than considering only the object being installed.
- Check the excavator weight class: choose a bucket built for the size and capability of the machine.
- Consider the ground: narrower buckets generally penetrate difficult ground more effectively, while wider buckets offer more capacity in easier material.
- Estimate the material weight: account for dense, wet or abrasive material rather than using bucket volume alone.
- Confirm the attachment dimensions: measure the pin diameter, pin centres and dipper gap or check the quick-hitch requirements.
For broader advice on selecting the bucket type, construction and specification, read How to Choose the Right Excavator Digging Bucket.
Frequently Asked Questions
What is the most common excavator bucket size?
There is no single standard size because excavators and jobs vary considerably. Medium widths such as 300mm, 450mm and 600mm are commonly used for trenching and general groundworks, but the correct option depends on the machine and application.
What size bucket is best for drainage?
Drainage buckets are often between approximately 230mm and 450mm wide. The correct width depends on the pipe diameter, bedding requirements and working clearance needed around the installation.
What size bucket should I use for footings?
The bucket should match the specified footing width as closely as practical while remaining suitable for the excavator and ground conditions. Common widths include 300mm, 450mm and 600mm, although the construction specification should determine the final choice.
Does a wider bucket dig faster?
A wider bucket can move more material per cycle in loose or workable ground. In compacted ground, the increased resistance may make a narrower bucket faster and more efficient overall.
Can I fit any width of bucket to my excavator?
No. The bucket must be appropriate for the excavator’s weight, hydraulic performance, stability and hitch dimensions. Extremely wide or heavy buckets can reduce digging performance and safe working capacity.
How do I know whether a bucket will fit my quick hitch?
Confirm the quick-hitch make and model and check the required pin diameter, pin centres and dipper gap. Do not rely on machine weight alone.
Are excavator bucket widths measured internally or externally?
Product width normally describes the nominal cutting or overall working width, but measurement conventions can vary between manufacturers. Check the product specification when an exact finished trench width is essential.
Compare Excavator Digging Bucket Sizes
The best bucket size is the one that creates the required excavation efficiently without placing unnecessary demand on the machine.
Narrow buckets suit accurate trenching and resistant ground. Medium widths offer versatility for everyday groundworks, while wider buckets can increase output during open excavation and bulk material movement.
