Auger Torque MT Trencher for 2.5–5 Tonne Mini Diggers
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your machine and the options you need, so every attachment is quoted individually.

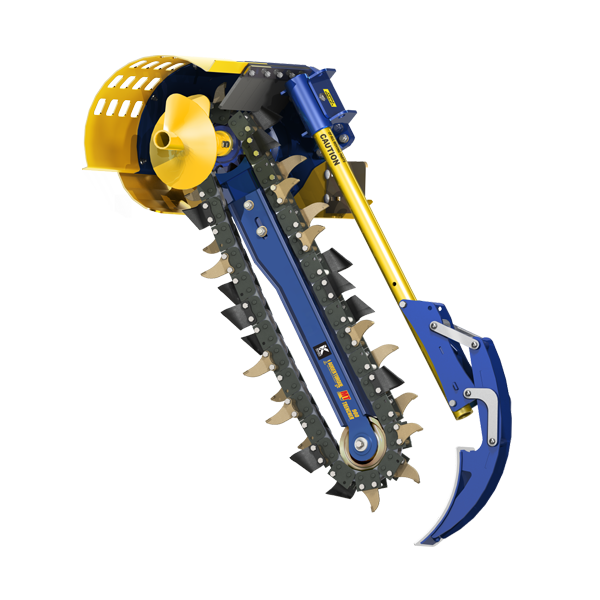

The Auger Torque MT trencher is a chain trencher for 2.5 to 5 tonne mini diggers and skid steers. It cuts narrow trenches 300mm to 900mm deep and 100mm to 300mm wide for cables, pipes, drainage and ground source heat pump loops, and its built-in auger piles the spoil neatly to one side of the trench.
There are two models. The MT 600 suits 2.5 to 4.5 tonne excavators and cuts 300, 450 or 600mm deep, and the MT 900 suits 3 to 5 tonne excavators and cuts 600, 750 or 900mm deep. The depth control skid sets the depth, a high quality hydraulic motor drives the chain through Auger Torque's planetary gearbox, and the chain is tensioned with a grease gun.
Specifications
| Model | Excavator size | Trench depths | Trench width | Oil flow | Oil pressure | Length |
|---|---|---|---|---|---|---|
| MT 600 | 2.5–4.5 tonnes | 300, 450 or 600mm | 100–200mm | 35–65 l/min | 160–240 bar | 1465mm |
| MT 900 | 3–5 tonnes | 600, 750 or 900mm | 100–300mm | 45–80 l/min | 180–240 bar | 1800mm |
| Also fits | Skid steer loaders (side shift frame) and mini loaders (mini loader frame) |
|---|---|
| Excavator hitch | Pin sizes 30, 35, 40 or 45mm |
| Chains | Earth, combination or tungsten, 100mm to 300mm wide (up to 200mm on the MT 600) |
| Unit size | 850mm wide, 736mm high |
| Drive | Hydraulic motor and Auger Torque planetary gearbox |
| Supplied with | Hoses and adaptors |
Key Features
- Trenches 300mm to 900mm deep and 100mm to 300mm wide
- Depth control skid with three settings on each model
- Earth, combination and tungsten chains for soft, mixed and hard or frozen ground
- Planetary gearbox driven by a high quality hydraulic motor
- Dog leg boom leaves more room between chain and boom, for better spoil clearance and less wear
- Quick chain adjustment with a grease gun
- Hoses and adaptors included
Before You Order
Check your machine's auxiliary circuit first: the MT 600 needs 35 to 65 l/min at 160 to 240 bar, and the MT 900 needs 45 to 80 l/min at 180 to 240 bar. Then choose the chain for your ground: earth for soft ground such as earth and clay, combination for dry, hard or medium ground, and tungsten for dry, hard or frozen ground. The width you can cut depends on the ground, so we confirm the chain width with your quote.
For an excavator, send us the make, model, weight and pin size. For a skid steer or mini loader, tell us the machine so we can quote the right frame. Always find buried cables and pipes before you trench: read how to use an excavator trencher safely, then request a quote.
Related Attachments
For deeper trenches on 5 to 10 tonne machines, see the Auger Torque XHD trencher. Trenching through rock? The KDC drum cutter is built for it. Drilling post holes instead? See our mini digger augers. Compare both trenchers in our excavator trenchers range, or browse all our excavator attachments.
Request a quote
Tell us your machine's make, model and weight, and its auxiliary oil flow if you know it, and we'll come back with a price, lead time and delivery cost.
