Auger Torque XHD Trencher for 5–10 Tonne Excavators
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your machine and the options you need, so every attachment is quoted individually.

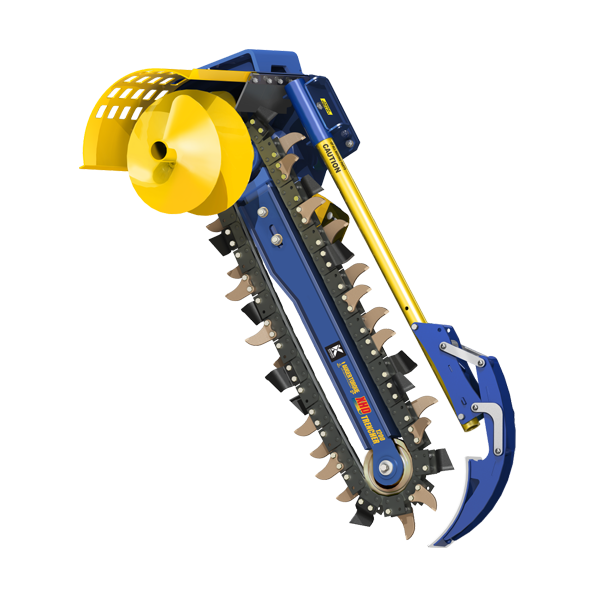

The Auger Torque XHD trencher is a heavy duty chain trencher for 5 to 10 tonne excavators and skid steers. It cuts trenches 600mm to 1.5m deep and 150mm to 350mm wide for drainage, larger bore gas and water pipes, cable ducts and ground source heat pump loops, and its built-in auger piles the spoil neatly to one side.
There are three models, each with a depth control skid that sets three depths. The XHD 900 cuts 600, 750 or 900mm deep, the XHD 1200 cuts 800, 1000 or 1200mm, and the XHD 1500 cuts 1000, 1250 or 1500mm. A high quality hydraulic motor drives the chain through Auger Torque's planetary gearbox, and the dog leg boom leaves more room for spoil to clear the chain.
Specifications
| Model | Trench depths | Trench width | Oil flow | Oil pressure | Length |
|---|---|---|---|---|---|
| XHD 900 | 600, 750 or 900mm | 150–350mm | 60–95 l/min | 180–240 bar | 1962mm |
| XHD 1200 | 800, 1000 or 1200mm | 150–300mm | 70–110 l/min | 180–240 bar | 2262mm |
| XHD 1500 | 1000, 1250 or 1500mm | 150–200mm | 80–115 l/min | 180–240 bar | 2562mm |
| Machines | 5–10 tonne excavators and skid steer loaders |
|---|---|
| Mounting | Excavator hitch, side shift frame for skid steers, or mini loader frame |
| Excavator hitch | Pin sizes 40, 45, 50, 55, 60 or 65mm |
| Chains | Earth, combination or tungsten, 150mm to 350mm wide |
| Unit size | 1018mm wide, 808mm high |
| Supplied with | Hoses and adaptors |
Key Features
- Trenches 600mm to 1.5m deep and 150mm to 350mm wide
- Three models, each with three depth settings on the skid
- Earth, combination and tungsten chains for soft, mixed and hard or frozen ground
- Planetary gearbox driven by a high quality hydraulic motor
- Dog leg boom for better spoil clearance and less chain and boom wear
- Quick chain adjustment with a grease gun
- Hoses and adaptors included
Before You Order
Check your machine's auxiliary circuit can supply the flow for the model you need, at 180 to 240 bar: 60 to 95 l/min for the XHD 900, 70 to 110 l/min for the XHD 1200 and 80 to 115 l/min for the XHD 1500. Choose the chain for your ground: earth for soft ground such as earth and clay, combination for dry, hard or medium ground, and tungsten for dry, hard or frozen ground. The deeper the model, the narrower the widest chain, so we confirm the width with your quote.
For an excavator, send us the make, model, weight and pin size. For a skid steer or mini loader, tell us the machine so we can quote the right frame. Always find buried cables and pipes before you trench: read how to use an excavator trencher safely, then request a quote.
Related Attachments
For 2.5 to 5 tonne machines, see the Auger Torque MT trencher. Trenching through rock? The KDC drum cutter is built for it. Drilling pile or post holes instead? See our excavator augers. Compare both trenchers in our excavator trenchers range, or browse all our excavator attachments.
Request a quote
Tell us your machine's make, model and weight, and its auxiliary oil flow if you know it, and we'll come back with a price, lead time and delivery cost.
