Carriage Mounted Big Bag Lifter – 1000kg, Class 2 or 3
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your forklift and the options you need, so every attachment is quoted individually.

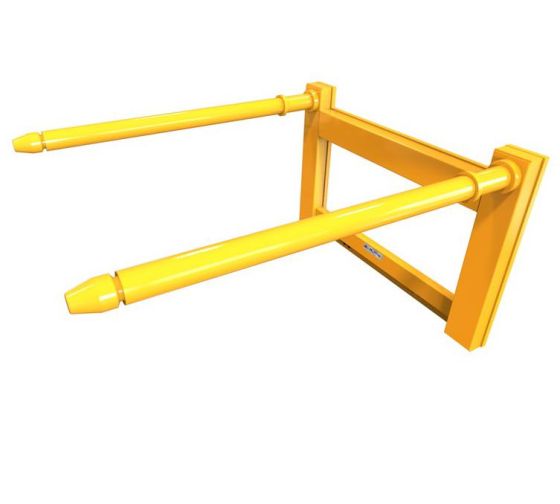

A carriage mounted big bag lifter hangs directly on your forklift's fork carriage, much like a set of forks, with two long round tines that pass through the loops of a bulk bag. It lifts bags of up to 1000kg and suits trucks that spend most of the day handling bags.
The tines are 1220mm long and 70mm in diameter, made from EN19T steel and sized so they don't flex or bounce on the move. Shaped tips slide into the loops easily, and the round section gives the loops a smooth surface to bear on, which bag makers recommend over sharp-edged forks. Stops keep the bag from sliding along the tines when you drive and brake.
Specifications
| Model | Capacity | Tine length | Tine diameter | Carriage |
|---|---|---|---|---|
| CBBT-1 | 1000kg | 1220mm | 70mm | Class 2 |
| CBBT-2 | 1000kg | 1220mm | 70mm | Class 3 |
| Tines | Two round tines in EN19T steel |
|---|---|
| Mounting | Top hangers sit on the carriage bar, bottom hangers bolt in place |
| Quick release | Available to order |
| Finish | Safety yellow |
| Standards | UKCA marked, Machinery Directive 2006/42/EC, supplied with a Certificate of Conformity |
| Warranty | 3 years |
Key Features
- Two 1220mm round tines, 70mm in diameter
- Lifts big bags up to 1000kg by their loops
- Fits class 2 or class 3 fork carriages
- Shaped tips for easy entry into the loops
- Stops hold the bag in place under braking
- Quick release version available
- Safety yellow finish and a 3-year warranty
Before You Order
Check your carriage class first. It's usually marked on the carriage or in your truck's manual, or you can measure the height of the carriage plate: class 2 carriages are 407mm high and class 3 are 508mm. Fitting means hanging the lifter on the carriage and bolting the bottom hangers, so it suits a truck that keeps it on. If you'll swap between bags and pallets, ask for the quick release version. Check your forklift's capacity with the attachment fitted, and send us your capacity plate details if you'd like help.
Under LOLER, lifting equipment needs regular thorough examination by a competent person, and lifting accessories need one at least every six months unless an examination scheme sets a different interval, so ask your examiner which applies to you. Read how to lift big bags with a forklift, then request a quote with your forklift make, model and carriage class.
Related Attachments
Want to keep your forks on? The fork mounted big bag lifter slides over them and parks up when you're done. To lift from a hook, see the cruciform big bag lifter, and to fill bags in the yard, the forklift big bag filler. Compare all four in our forklift big bag lifters range, or browse everything on our forklift attachments page.
Request a quote
Tell us your forklift make and model, and your fork sizes if you have them, and we'll come back with a price, lead time and delivery cost.
