Cruciform Big Bag Lifter – 1000kg, Crane or Forklift Hook
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your forklift and the options you need, so every attachment is quoted individually.

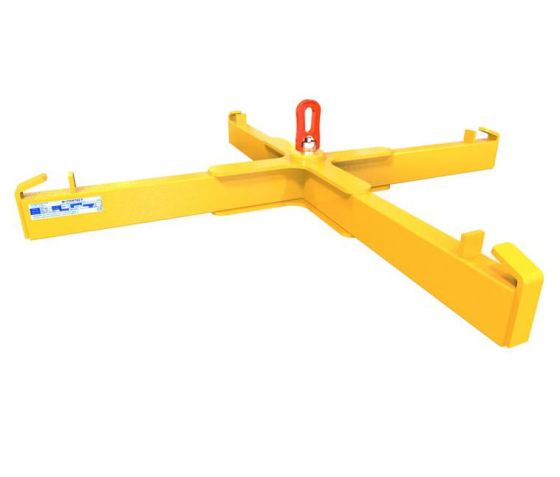

A cruciform big bag lifter is a cross-shaped lifting frame that hangs from a hook and holds a bulk bag of up to 1000kg by all four loops. Use it under an overhead crane, or on a forklift fitted with a hook attachment.
Each arm ends in a loop retainer that keeps the loop in place during the lift, with 1000mm between opposite claws. The lifting point in the centre swivels under load, so the chains from the crane hook don't twist, and the whole frame weighs just 32kg.
Specifications
| Model | Capacity | Claw spacing | Mounting | Weight |
|---|---|---|---|---|
| CBH-1 | 1000kg | 1000 x 1000mm | Crane slung | 32kg |
| Bags | Standard big bags with four lifting loops |
|---|---|
| Loop retention | Loop retainers on each arm |
| Lifting point | Central, swivels under load |
| Use with | Overhead cranes, or a forklift fitted with a hook attachment |
| Standards | UKCA marked, Machinery Directive 2006/42/EC, supplied with a Certificate of Conformity |
| Warranty | 3 years |
Key Features
- Lifts big bags up to 1000kg on all four loops
- Cross-shaped frame with 1000mm between opposite claws
- Loop retainers keep the loops on during the lift
- Swivelling central lifting point stops crane chains twisting
- Weighs only 32kg
- 3-year warranty
Before You Order
Your crane or hook lifts the frame as well as the bag, so add 32kg to the bag weight when you check its rating. To use it on a forklift you'll need a hook attachment first, such as our fixed forklift hook, and your truck's capacity checked with the hook fitted. The lifting point swivels so the chains don't twist, but it isn't for turning the load: fit a swivel hook to the crane if you need to position the bag. Non-standard bags? Ask us about longer or shorter arms and higher capacities.
Under LOLER, lifting equipment needs regular thorough examination by a competent person, and lifting accessories need one at least every six months unless an examination scheme sets a different interval, so ask your examiner which applies to you. Keep everyone clear of the area under a suspended bag. Read how to lift big bags with a forklift, then request a quote with your crane or forklift details and bag size.
Related Attachments
Rather lift straight from the forks? See the fork mounted big bag lifter or the carriage mounted big bag lifter, and to fill bags in the yard, the forklift big bag filler. Compare all four in our forklift big bag lifters range. Lifting pallets with a crane too? See our pallet crane forks, or browse everything on our forklift attachments page.
