Carriage Mounted Carpet Boom – 70 to 85mm Poles, Up to 4m
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your forklift and the options you need, so every attachment is quoted individually.

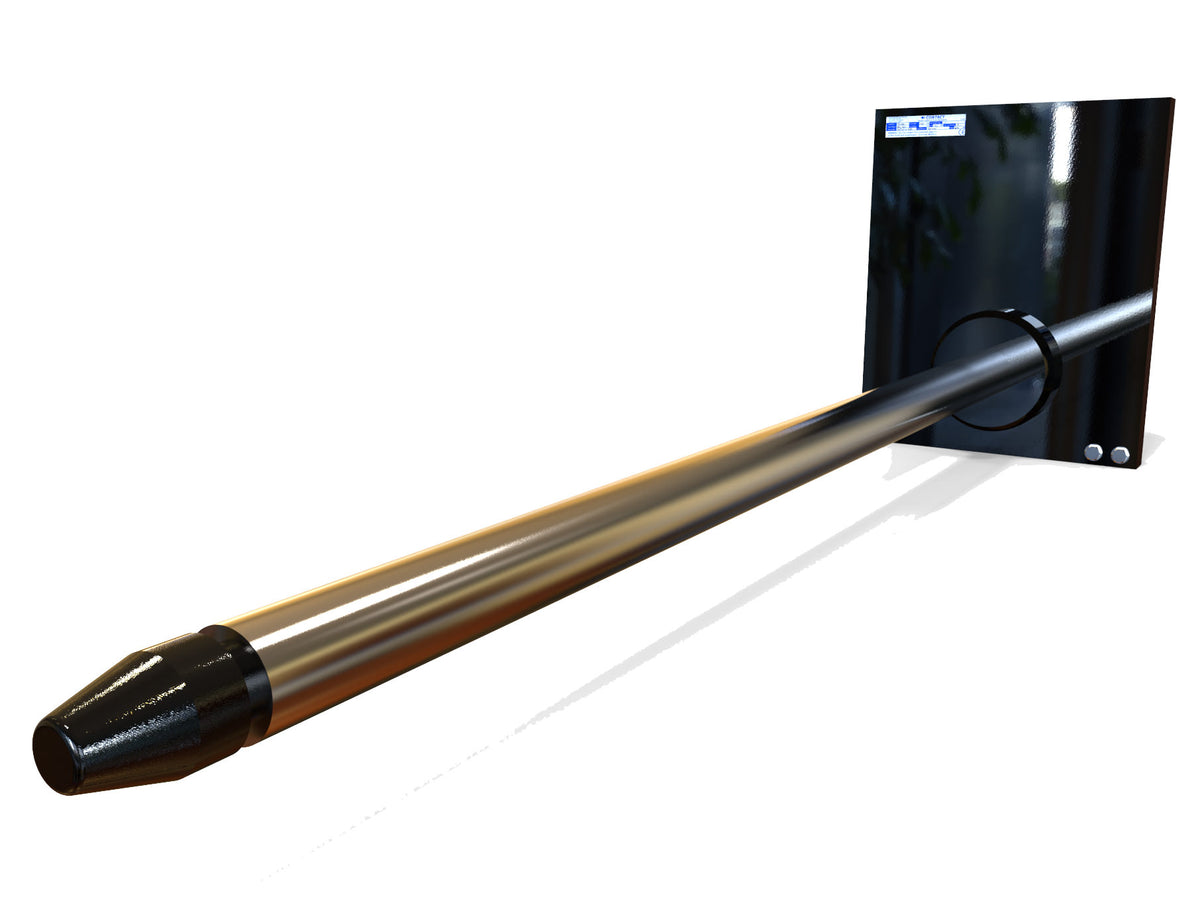

A carriage mounted carpet boom hangs straight on your forklift's carriage in place of the forks, for trucks that handle carpet, vinyl and other rolls all day. The pole slides through the roll's core, so the roll is carried on its centre instead of balanced on the forks.
The pole is EN19T steel with a threaded design and no welding, so there's no weld to fail under stress. A bearing plate and shrink ring absorb shock loads in transit, and a nose cone on the leading edge guides the pole into the core without damaging the roll. Bolt-on bottom blocks come as standard, with quick release blocks as an option.
Specifications
| Model | Pole diameter | Pole length | Rated capacity* | Weight (class 2 / class 3) |
|---|---|---|---|---|
| CMBS 70-3050 | 70mm | 3050mm | 384kg | 197 / 245kg |
| CMBS 70-3660 | 70mm | 3660mm | 384kg | 215 / 263kg |
| CMBS 70-4000 | 70mm | 4000mm | 384kg | 223 / 280kg |
| CMBS 75-3050 | 75mm | 3050mm | 480kg | 210 / 259kg |
| CMBS 75-3660 | 75mm | 3660mm | 480kg | 231 / 280kg |
| CMBS 75-4000 | 75mm | 4000mm | 480kg | 236 / 300kg |
| CMBS 85-3050 | 85mm | 3050mm | 700kg | 240 / 289kg |
| CMBS 85-3660 | 85mm | 3660mm | 700kg | 267 / 294kg |
| CMBS 85-4000 | 85mm | 4000mm | 700kg | 283 / 310kg |
| Rated capacity | *As published on Contact's data sheet, quoted at 2000mm. Send us your roll weight and length and we'll confirm the right pole |
|---|---|
| Other sizes | Pole diameters from 65mm to 150mm and lengths from 2000mm to 4000mm, made to order |
| Carriage | Class 2 or class 3 as standard, classes 1 to 5 to order |
| Mounting | Bolt-on bottom blocks, quick release blocks optional |
| Material | EN19T steel, threaded pole with no welding |
| Standards | UKCA marked, Machinery Directive 2006/42/EC, supplied with a Certificate of Conformity |
| Warranty | 3 years |
Key Features
- Hangs on the carriage, for trucks dedicated to rolls
- Threaded EN19T pole with no welds to fail
- Bearing plate and shrink ring absorb shock loads
- Nose cone for clean entry into the roll core
- Poles up to 4m long, 65mm to 150mm to order
- 3-year warranty
Before You Order
Measure the inside of your smallest roll core to choose the pole diameter, and send us your roll length and heaviest roll weight. A carriage mounted boom replaces your forks, so tell us your forklift make and model and your carriage class, and check the truck's capacity with the boom fitted.
Read how to lift carpet rolls with a forklift, then request a quote.
Related Attachments
Want to keep your forks on? Our underslung forklift carpet boom and low profile forklift carpet boom slide onto the forks instead, and you can compare them in our forklift carpet booms range. For coils and reels, see our forklift coil and roll handling attachments, or browse everything on our forklift attachments page.
Request a quote
Tell us your forklift make and model, and your fork sizes if you have them, and we'll come back with a price, lead time and delivery cost.
