Forklift Reel Handler – Adjustable Sleeves, 1000kg per Pair
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your forklift and the options you need, so every attachment is quoted individually.

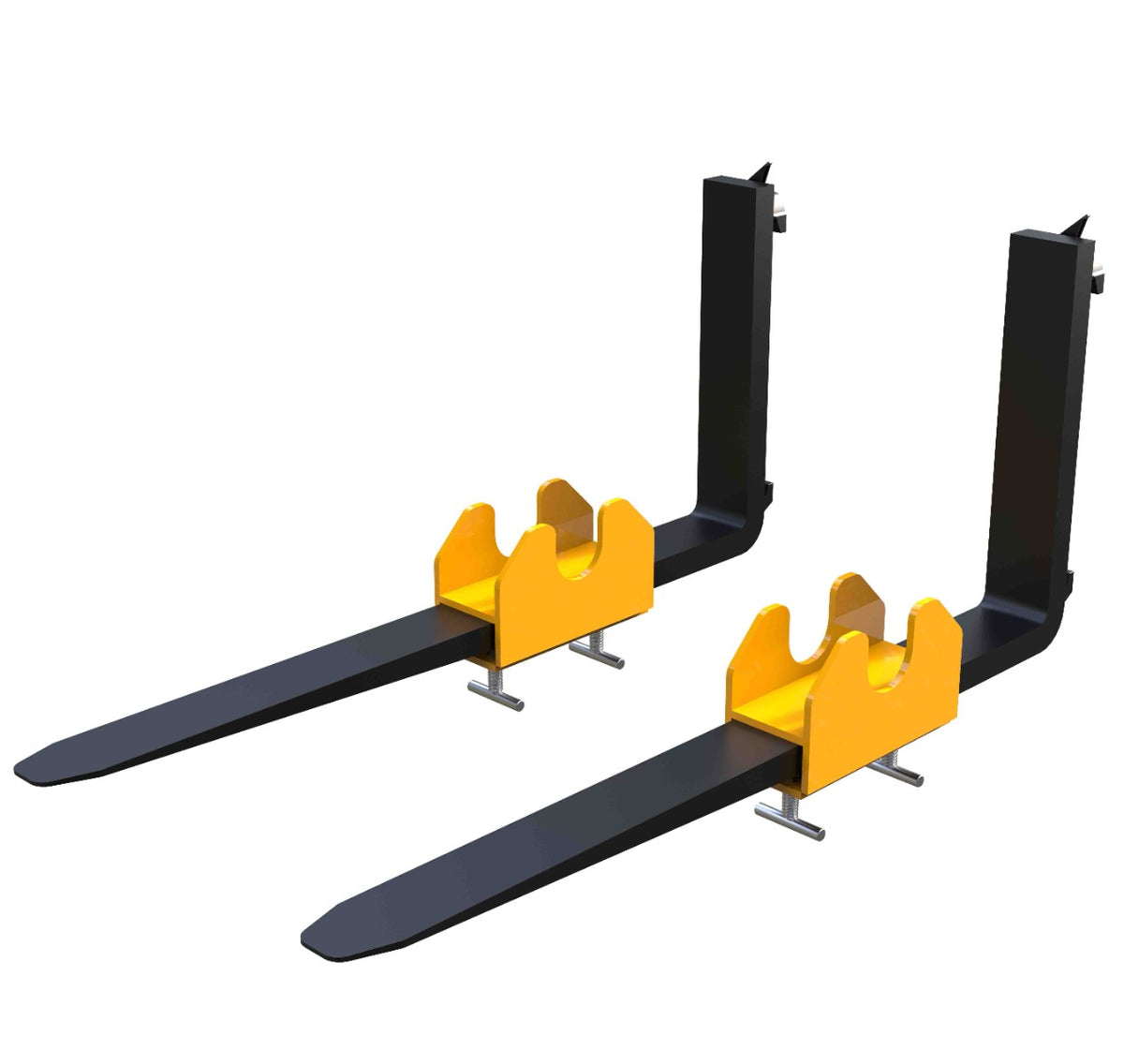

A forklift reel handler lets you lift cable reels and similar rolled products with your forklift. It's a pair of sleeves that slip over your forks, made to suit the diameter of the spindle you use with your reels.
The sleeves adjust along the length of the fork blade to suit your reels, and 'T' screw retainers lock them in place. They're sold as a pair, with a safe working load of 1000kg per pair, for forks of 100 x 50mm, 125 x 60mm or 150 x 60mm.
Specifications
| Model | Fork section | Safe working load |
|---|---|---|
| FM-RH-ADJ-100x50 | 100 x 50mm | 1000kg per pair |
| FM-RH-ADJ-125x60 | 125 x 60mm | 1000kg per pair |
| FM-RH-ADJ-150x60 | 150 x 60mm | 1000kg per pair |
| Loads | Cable reels and similar rolled products |
|---|---|
| Fit | Made to suit your spindle diameter |
| Adjustment | Along the length of the fork blade |
| Retention | 'T' screw retainers |
| Supplied as | A pair |
| Standards | UKCA marked, Machinery Directive 2006/42/EC, supplied with a Certificate of Conformity |
| Warranty | 3 years |
Key Features
- Made to suit your spindle diameter
- Adjusts along the fork blade
- T screw retainers lock it to the forks
- 1000kg safe working load per pair
- Three fork sizes
- 3-year warranty
Before You Order
Tell us your spindle diameter in mm and your fork section (width and thickness) when you order, plus the weight of your heaviest reel. Check your forklift's capacity for the reel at the load centre you'll carry it.
Read how to lift cable drums with a forklift, then request a quote.
Related Attachments
Carrying reels and drums on the forks without a spindle? See the triangular fork sleeves. Compare all our forklift coil and roll handling attachments, or browse everything on our forklift attachments page.
