Triangular Fork Sleeves – for Paper Reels and Cable Drums
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your forklift and the options you need, so every attachment is quoted individually.

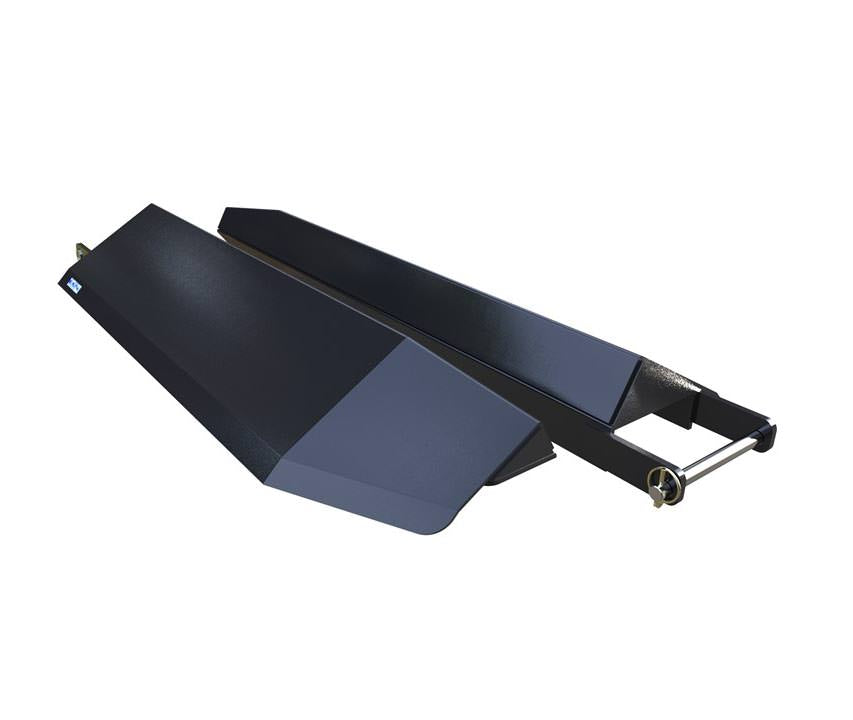

Triangular fork sleeves slide over your forks to carry paper reels, cable drums and other cylindrical loads. The angled face plates cradle the load between the forks, so it can't roll off while you travel.
They're made from 8mm pressed steel with 5mm internal strengthening plates and a profiled toe with an end cap. Fixed retaining bars hold them on the forks, with pins on lengths over 2000mm. Choose 1525mm or 1830mm sleeves for forks 100mm, 125mm or 150mm wide.
Specifications
| Model | Fork width | Sleeve length | Min fork length | Max fork size |
|---|---|---|---|---|
| TFE 100-1525 | 100mm | 1525mm | 1050mm | 100 x 50mm |
| TFE 100-1830 | 100mm | 1830mm | 1200mm | 100 x 50mm |
| TFE 125-1525 | 125mm | 1525mm | 1050mm | 125 x 50mm |
| TFE 125-1830 | 125mm | 1830mm | 1200mm | 125 x 50mm |
| TFE 150-1525 | 150mm | 1525mm | 1050mm | 150 x 60mm |
| TFE 150-1830 | 150mm | 1830mm | 1200mm | 150 x 60mm |
| Loads | Paper reels, cable drums and other cylindrical loads |
|---|---|
| Construction | 8mm pressed steel, 5mm internal strengthening plates |
| Toe | Profiled, with end cap |
| Retention | Fixed retaining bars, pins on lengths over 2000mm |
| Standards | UKCA marked, Machinery Directive 2006/42/EC, ISO 13284, supplied with a Certificate of Conformity |
| Warranty | 3 years |
Key Features
- Angled face plates stop round loads rolling off
- 8mm pressed steel with internal strengthening
- Profiled toe with end cap
- 1525mm or 1830mm long
- Built to ISO 13284
- 3-year warranty
Before You Order
Choose the sleeve to match your fork width and thickness, and check your forks are long enough: at least 1050mm for the 1525mm sleeves and 1200mm for the 1830mm sleeves. Tell us the diameter and weight of your heaviest reel or drum so we can confirm the right size.
Read how to lift cable drums with a forklift, then request a quote.
Related Attachments
For coils and smaller rolls, see the radius top fork sleeves and coil support sleeves. Moving cable reels on a spindle? See the forklift reel handler. Compare all our forklift coil and roll handling attachments, or browse everything on our forklift attachments page.
Request a quote
Tell us your forklift make and model, and your fork sizes if you have them, and we'll come back with a price, lead time and delivery cost.
