Coil Support Sleeves – 2000kg Domed Fork Sleeves
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your forklift and the options you need, so every attachment is quoted individually.

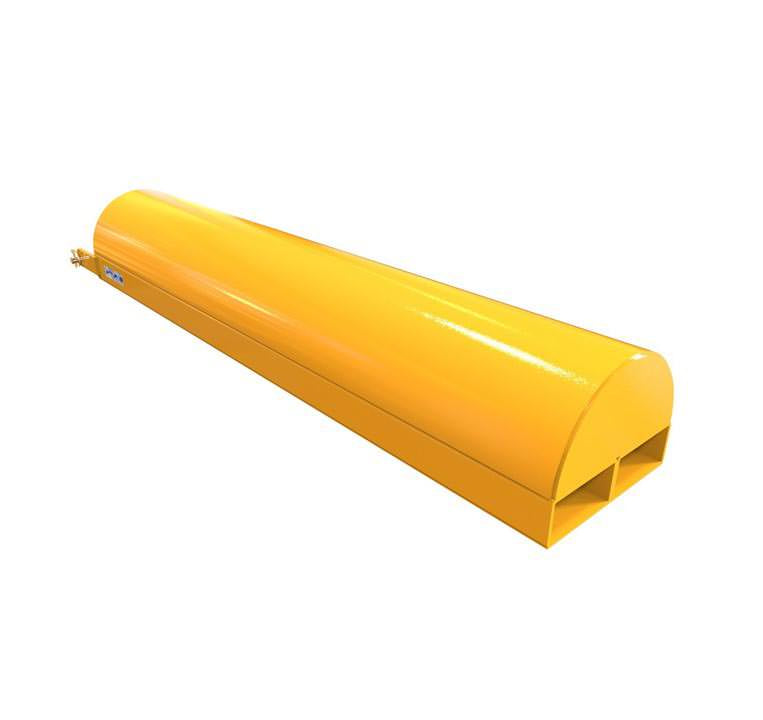

Coil support sleeves slip over your forklift forks to give coils a larger, rounded bearing surface. The domed top spreads the load and protects the core of steel coils, wire rolls and sheet polythene, where bare fork edges would dig in.
Heel retention pins hold the sleeves on the forks, so they fit and come off quickly. They're rated at 2000kg and come in 1525mm or 1830mm lengths to suit forks from 100mm to 160mm wide. Sleeves can also be made to suit your roll sizes and forks.
Specifications
| Model | Capacity | Sleeve length | Min fork length | Max fork size |
|---|---|---|---|---|
| CSE 100-1525 | 2000kg | 1525mm | 1050mm | 100 x 60mm |
| CSE 100-1830 | 2000kg | 1830mm | 1200mm | 100 x 60mm |
| CSE 125-1525 | 2000kg | 1525mm | 1050mm | 130 x 60mm |
| CSE 125-1830 | 2000kg | 1830mm | 1200mm | 130 x 60mm |
| CSE 150-1525 | 2000kg | 1525mm | 1050mm | 160 x 70mm |
| CSE 150-1830 | 2000kg | 1830mm | 1200mm | 160 x 70mm |
| Loads | Steel coils, wire rolls and sheet polythene |
|---|---|
| Top | Domed, to protect roll cores |
| Retention | Heel retention pins |
| Options | Made to suit your roll dimensions and fork sizes |
| Standards | UKCA marked, Machinery Directive 2006/42/EC, supplied with a Certificate of Conformity |
| Warranty | 3 years |
Key Features
- Domed top protects roll cores
- 2000kg capacity
- 1525mm or 1830mm long
- Heel pins for quick fitting
- Suits forks from 100mm to 160mm wide
- 3-year warranty
Before You Order
Measure the width and thickness of your forks and their length. The 1525mm sleeves need forks at least 1050mm long, and the 1830mm sleeves at least 1200mm. Check your forklift's capacity for the coil at the load centre you'll carry it.
Read how to lift steel coils with a forklift, then send us your fork sizes and coil details and request a quote.
Related Attachments
Carrying reels and drums that might roll? See the triangular fork sleeves or the radius top fork sleeves. To lift coils through the core, see the forklift coil boom. Compare all our forklift coil and roll handling attachments, or browse everything on our forklift attachments page.
