Forklift Coil Boom – Carriage Mounted Coil Ram, 600 to 2000mm
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your forklift and the options you need, so every attachment is quoted individually.

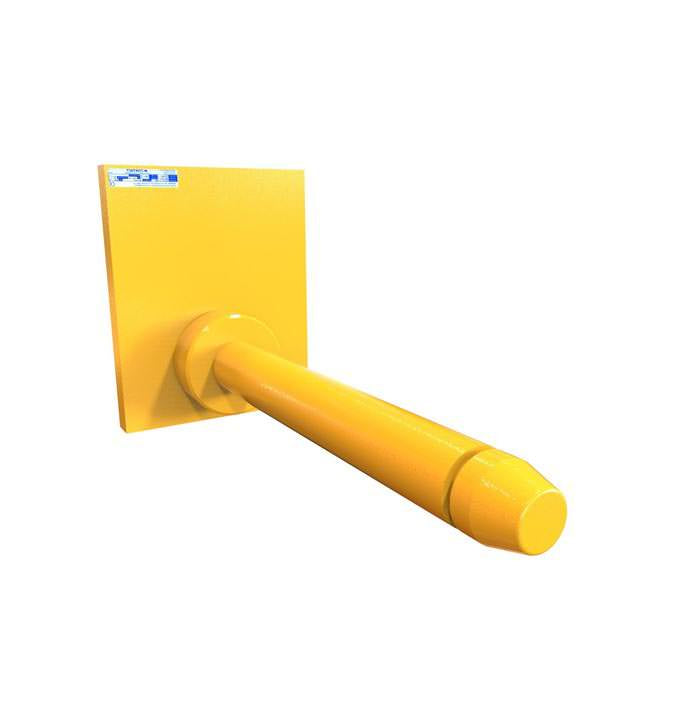

A forklift coil boom, often called a coil ram, carries steel coils, wire reels, concrete pipes and other cylindrical loads through their centre. It mounts on the carriage with a short, solid EN19T steel pole cut to suit your coil length and material.
A tapered nose cone slides into tight cores without damaging the coil, and a bearing plate and shrink ring absorb shock loads in transit. Machined rear hangers are standard for fitting to the carriage, with quick release hangers on request.
Specifications
| Model | Pole diameter | Pole length | Carriage class | Capacity |
|---|---|---|---|---|
| CMB | 50 to 150mm | 600 to 2000mm | 1 to 5 | Made to suit your coil weight and length |
| Loads | Steel coils, wire reels, concrete pipes, coiled and rolled products |
|---|---|
| Pole | Solid EN19T steel, cut to length for your load |
| Mounting | Machined rear hangers, quick release hangers on request |
| Reach trucks | If undercarriage clearance is over 150mm, the boom can be mounted 305mm lower on the backplate to lift from the ground |
| Standards | UKCA marked, Machinery Directive 2006/42/EC, supplied with a Certificate of Conformity |
| Warranty | 3 years |
Key Features
- Short, solid pole for heavy coils
- Tapered nose cone for tight cores
- Bearing plate and shrink ring to absorb shock loads
- Made to your coil size and weight
- Fits carriage classes 1 to 5
- 3-year warranty
Before You Order
The boom is made to your load, so send us the inside diameter, length and weight of your heaviest coil, with your forklift make, model and carriage class. On a reach truck, tell us the undercarriage clearance too. Check the truck's capacity with the boom fitted, because the boom moves the load away from the mast.
Read how to lift steel coils with a forklift, then request a quote.
Related Attachments
Handling carpet and vinyl rolls? See the carriage mounted carpet boom. To carry coils on your forks instead, the coil support sleeves slide on and off. Compare all our forklift coil and roll handling attachments, or browse everything on our forklift attachments page.
