Radius Top Fork Sleeves – for Coils and Rolls
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your forklift and the options you need, so every attachment is quoted individually.

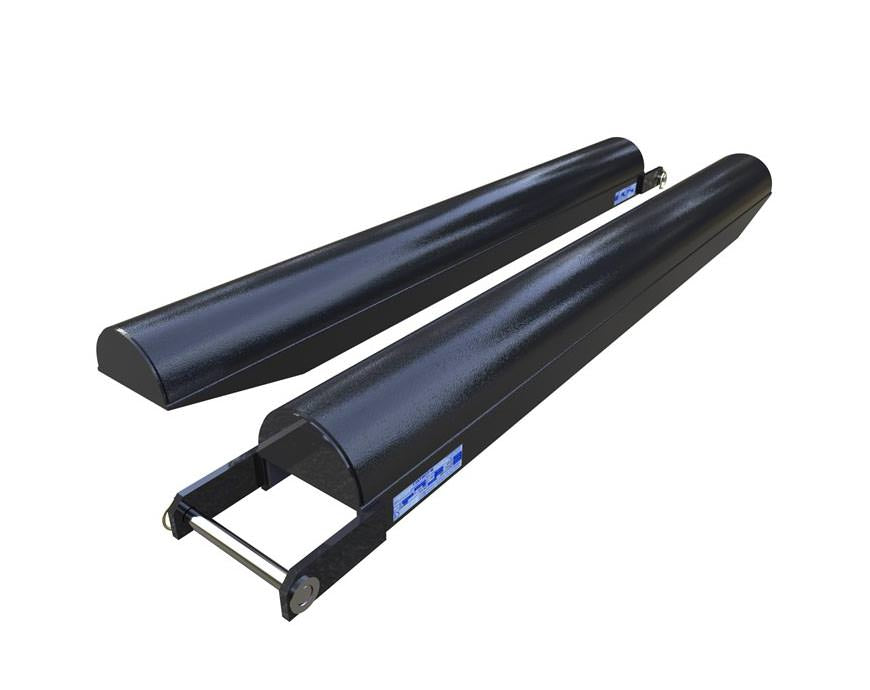

Radius top fork sleeves slide over your forks to carry small steel coils, wire coils and plastic rolls without the sharp edges of the forks marking or cutting into them. The radiused top also increases the bearing area under the load.
They're made from 8mm pressed steel with 5mm internal strengthening plates and a profiled toe with an end cap, and fixed retaining bars hold them on the forks (pins on lengths over 2000mm). Choose 1200mm or 1500mm sleeves for forks 100mm, 125mm or 150mm wide.
Specifications
| Model | Fork width | Sleeve length | Min fork length | Max fork size |
|---|---|---|---|---|
| RTE 100-1200 | 100mm | 1200mm | 900mm | 100 x 50mm |
| RTE 100-1500 | 100mm | 1500mm | 1200mm | 100 x 50mm |
| RTE 125-1200 | 125mm | 1200mm | 900mm | 125 x 50mm |
| RTE 125-1500 | 125mm | 1500mm | 1200mm | 125 x 50mm |
| RTE 150-1200 | 150mm | 1200mm | 900mm | 150 x 60mm |
| RTE 150-1500 | 150mm | 1500mm | 1200mm | 150 x 60mm |
| Loads | Small steel coils, wire coils and plastic rolls |
|---|---|
| Construction | 8mm pressed steel, 5mm internal strengthening plates |
| Toe | Profiled, with end cap |
| Retention | Fixed retaining bars, pins on lengths over 2000mm |
| Standards | UKCA marked, Machinery Directive 2006/42/EC, ISO 13284, supplied with a Certificate of Conformity |
| Warranty | 3 years |
Key Features
- Radiused top protects coils and rolls from fork edges
- Larger bearing area under the load
- 8mm pressed steel with internal strengthening
- 1200mm or 1500mm long
- Built to ISO 13284
- 3-year warranty
Before You Order
Choose the sleeve to match your fork width and thickness, and check your forks are long enough: at least 900mm for the 1200mm sleeves and 1200mm for the 1500mm sleeves. Tell us the size and weight of your heaviest coil or roll so we can confirm the right model.
Then request a quote.
Related Attachments
For heavier coils, the coil support sleeves are rated at 2000kg. For reels and drums that could roll, see the triangular fork sleeves. Compare all our forklift coil and roll handling attachments, or browse everything on our forklift attachments page.
Request a quote
Tell us your forklift make and model, and your fork sizes if you have them, and we'll come back with a price, lead time and delivery cost.
