Low Profile Extender Forklift Jib
2000kg
£1,000.00 Ex. VAT
£1,200.00 Inc. VAT
Skip to product information
Low Profile Extender Forklift Jib
Usually Delivered Within 7-10 Working Days
£1,000.00 Ex. VAT
£1,200.00 Inc. VAT

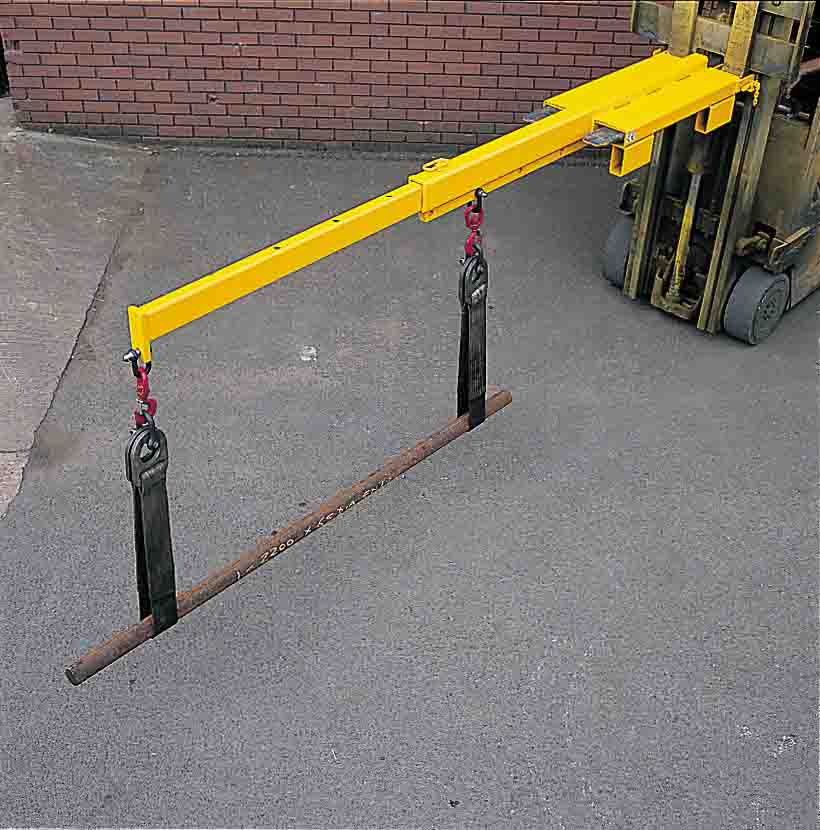

The Low Profile Extender Forklift Jib is designed for suspended lifting applications where both a lower attachment profile and additional reach are required. Built for forklift truck use, this manually extendable jib allows suitable loads to be lifted and positioned using an adjustable arm from 2000mm to 3000mm.
This low profile forklift jib extender is suitable for workshops, warehouses, factories, yards and industrial sites where machinery, motors, press tools, equipment, frames and other compatible suspended loads need to be handled safely in areas where access or headroom may be limited.
Low Profile Extender Forklift Jib for Adjustable Reach

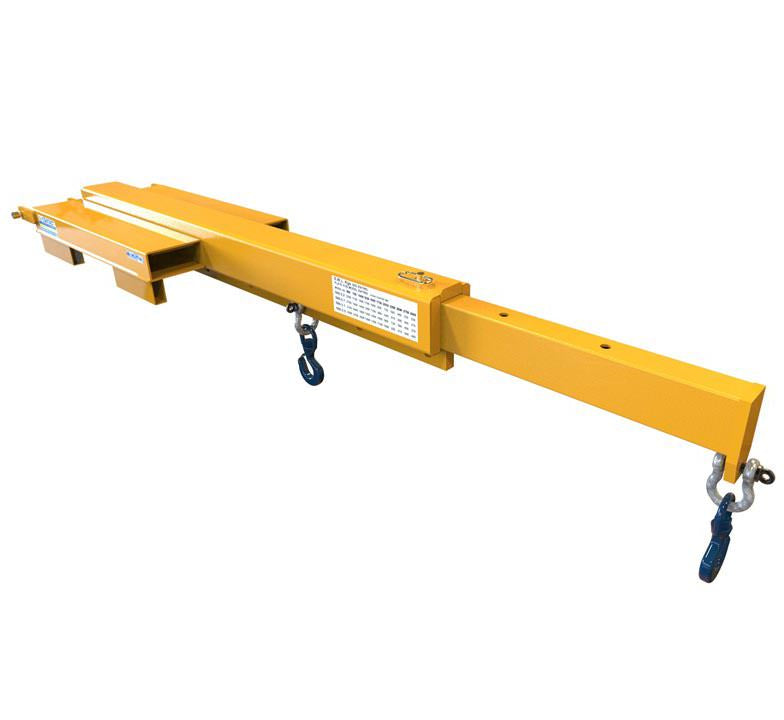

This low profile extender forklift jib combines the access benefits of a low profile design with the flexibility of an extendable beam. The manually adjustable arm gives greater reach than a fixed low profile jib, making it useful when loads need to be picked up from further away or positioned in less accessible areas.
The jib includes multiple hook positions along the beam, allowing the lifting point to be selected based on the required reach and load position. As with all forklift lifting attachments, the safe lifting capacity will depend on the forklift truck, selected hook position, load centre and operating conditions.
Key Features
- Low profile extender forklift jib for suspended lifting applications
- Manually extendable arm from 2000mm to 3000mm
- Low profile design for improved access in restricted areas
- Eleven hook positions from 500mm to 3000mm
- Supplied with two hooks and shackles
- Suitable for machinery, motors, press tools and other compatible suspended loads
- Large fork pockets for quick drive-in forklift fitting
- Heel retaining pins help secure the jib to the forklift forks
- Available for forklift trucks from 2000kg to 5000kg
- Fully tested and certificated for workplace use
- Suitable for warehouses, workshops, factories and industrial sites
Model Overview
| Model | Closed Length | Extended Length | Design Type | Lifting Points | Jib Weight |
|---|---|---|---|---|---|
| LLX | 2000mm | 3000mm | Low profile extendable forklift jib | Eleven, from 500mm to 3000mm | 100kg to 186kg, depending on truck capacity |
Capacity by Hook Position
| Minimum Truck Capacity | 500mm | 750mm | 1000mm | 1250mm | 1500mm | 1750mm | 2000mm | 2250mm | 2500mm | 2750mm | 3000mm | Max Fork Section | Fork Spread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000kg | 1800kg | 1400kg | 1100kg | 900kg | 720kg | 580kg | 500kg | 360kg | 330kg | 260kg | 210kg | 130 x 55mm | 380mm |
| 2500kg | 2200kg | 1700kg | 1400kg | 1100kg | 1000kg | 850kg | 750kg | 560kg | 440kg | 320kg | 230kg | 130 x 55mm | 380mm |
| 3000kg | 2700kg | 1900kg | 1450kg | 1200kg | 1100kg | 900kg | 840kg | 670kg | 490kg | 360kg | 270kg | 170 x 70mm | 530mm |
| 3500kg | 3100kg | 2400kg | 1900kg | 1500kg | 1200kg | 1000kg | 900kg | 730kg | 580kg | 450kg | 370kg | 170 x 70mm | 530mm |
| 4000kg | 3500kg | 2700kg | 2000kg | 1600kg | 1300kg | 1100kg | 1000kg | 820kg | 670kg | 540kg | 460kg | 170 x 70mm | 530mm |
| 5000kg | 4400kg | 3400kg | 2700kg | 2200kg | 1850kg | 1400kg | 1100kg | 900kg | 750kg | 620kg | 500kg | 170 x 70mm | 530mm |
Typical Applications
- Machinery and motor lifting
- Press tool, mould and die handling
- Suspended lifting in restricted access areas
- Factory maintenance and engineering work
- Workshop and warehouse lifting tasks
- Handling awkward loads from hard-to-reach positions
- Industrial site lifting and positioning work
Why Choose a Low Profile Extender Forklift Jib?
A low profile extender forklift jib is useful when a standard fixed jib does not provide enough reach and a raised telescopic jib may not be suitable due to access or headroom restrictions. The low profile design helps improve access in tighter areas, while the extendable arm provides additional reach when needed.
This makes the product a strong option for engineering workshops, factories, maintenance teams and industrial sites where loads often need to be lifted from awkward or hard-to-access positions.
Choosing the Right Forklift Jib
The correct forklift jib will depend on the weight of the load, the required reach, the available headroom and the rated capacity of your forklift truck. As the hook position moves further away from the forklift carriage, the available lifting capacity reduces. Always check the capacity table before selecting a variant or carrying out a lift.
Before ordering, check your forklift truck capacity, fork section, fork spread, load weight and intended lifting position. The selected jib and forklift truck must be suitable for the load at the required reach.
Low Profile Extender vs Other Forklift Jibs
| Product Type | Best For | Main Benefit |
|---|---|---|
| Low Profile Extender Forklift Jib | Restricted access lifting where adjustable reach is needed | Low profile design with 2000mm to 3000mm extension |
| Low Profile Forklift Crane Jib | Lower profile suspended lifting with a fixed beam | Simple low profile fixed-beam setup |
| Telescopic Forklift Crane Jib | Adjustable reach where a raised jib design is suitable | Extendable reach for varied lifting positions |
| Fork Mounted Forklift Jib | General suspended lifting applications | Raised 1800mm fixed beam with four hook positions |
Safety and Operation
Forklift jibs must only be used by trained operators and within the rated capacity of both the forklift truck and attachment. The load must be secure, balanced and suitable for suspended lifting before any lift takes place.
Always check the selected hook position, load weight, forklift capacity and site conditions before use. Loads should be lifted smoothly, kept as low as practical during travel and never handled above personnel. Site lifting procedures, inspection requirements and relevant health and safety guidance should always be followed.
Why Buy from Mammoth Attachments?
At Mammoth Attachments, we supply practical forklift attachments for real working environments. Our focus is on clear product information, reliable UK supply and helping customers choose equipment that suits their forklift truck, site and application.
This product forms part of our wider forklift attachments range. For similar suspended lifting products, view our full range of forklift lifting jibs. You may also be interested in our low profile forklift crane jib, telescopic forklift crane jib, fork mounted forklift jib, forklift tipping skips for waste handling and forklift fork extensions for longer loads.
FAQs
What is a low profile extender forklift jib used for?
A low profile extender forklift jib is used for lifting and positioning suitable suspended loads with a forklift truck, particularly where extra reach is needed and a lower attachment profile is preferred. Common uses include lifting machinery, motors, press tools, equipment and awkward loads in workshops, factories and industrial sites.
How far does the jib extend?
This low profile forklift jib extender manually adjusts from 2000mm closed length to 3000mm extended length.
What makes this different from a standard telescopic forklift jib?
This product combines an extendable beam with a low profile design. A standard telescopic forklift jib also provides adjustable reach, but may use a raised design that is better suited to different applications.
Does lifting capacity reduce as the jib extends?
Yes. As the hook position moves further away from the forklift carriage, the available lifting capacity reduces. Always check the capacity table before lifting.
What forklift capacities are available?
This product is available for forklift truck capacities from 2000kg to 5000kg. Always choose the correct option based on your forklift truck and lifting requirements.
Is this suitable for confined areas?
Yes, the low profile design helps improve access in areas where space or headroom is limited, while the extendable beam provides extra reach where required.
How is the jib secured to the forklift?
The jib uses large fork pockets for drive-in fitting and heel retaining pins to help secure the attachment to the forklift forks.
What fork size does this jib accept?
Jibs for 2000kg and 2500kg trucks take forks up to 130 x 55mm at a 380mm fork spread. Jibs for 3000kg to 5000kg trucks take forks up to 170 x 70mm at a 530mm fork spread. Always check your forklift forks against the capacity table before ordering.
Can this be used for all suspended loads?
No. The load must be suitable for suspended lifting and must remain within the rated capacity of the forklift truck and attachment at the selected hook position.
Not sure which jib suits your truck? Read our guide on how to choose a forklift jib.
