Low Profile Forklift Crane Jib
1000kg
£650.00 Ex. VAT
£780.00 Inc. VAT
Skip to product information
Low Profile Forklift Crane Jib
Usually Delivered Within 7-10 Working Days
£650.00 Ex. VAT
£780.00 Inc. VAT

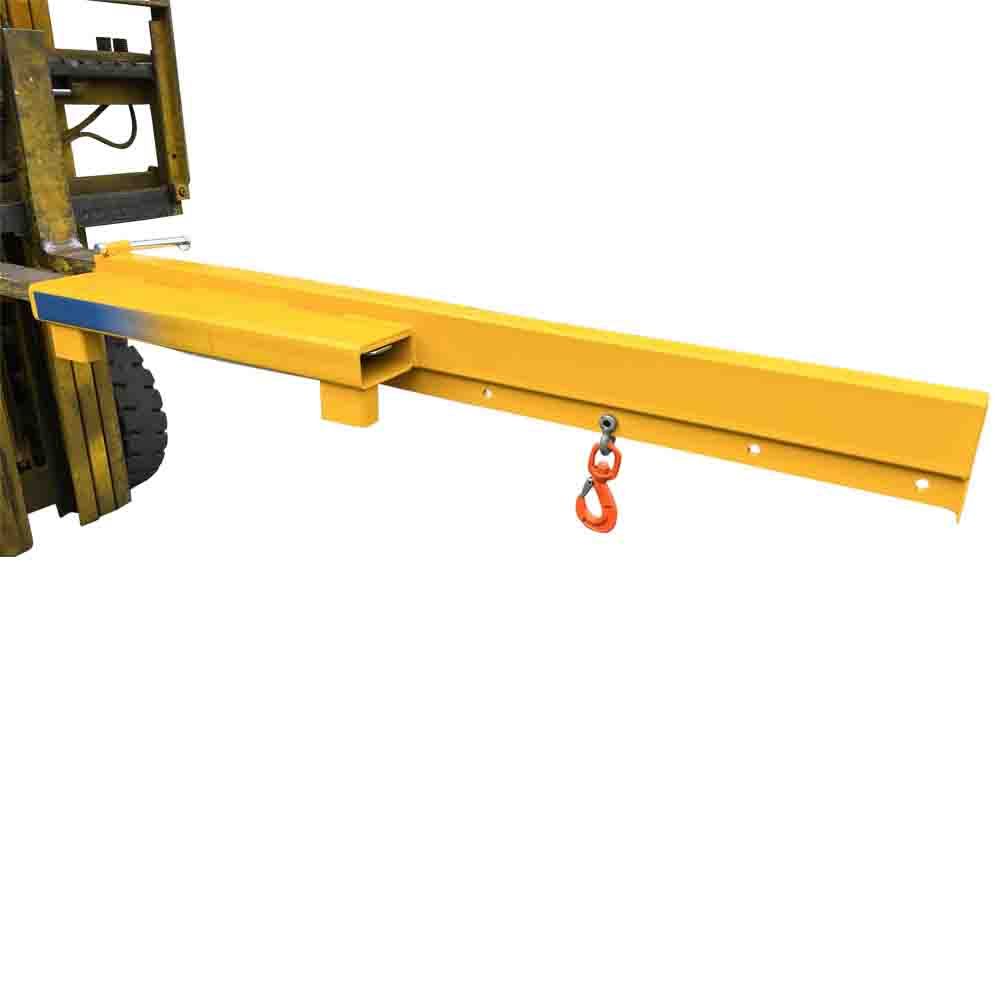

The Low Profile Forklift Crane Jib is designed for suspended lifting applications where a lower overall attachment height is required. Built for forklift truck use, this low profile jib allows suitable loads to be lifted and positioned using a fixed 1800mm beam with multiple lifting points.
Supplied with a hook and shackle, this forklift crane jib is suitable for workshops, warehouses, factories, yards and industrial sites where machinery, equipment, frames, motors, tooling and other compatible suspended loads need to be handled safely.
Low Profile Forklift Crane Jib for Suspended Loads

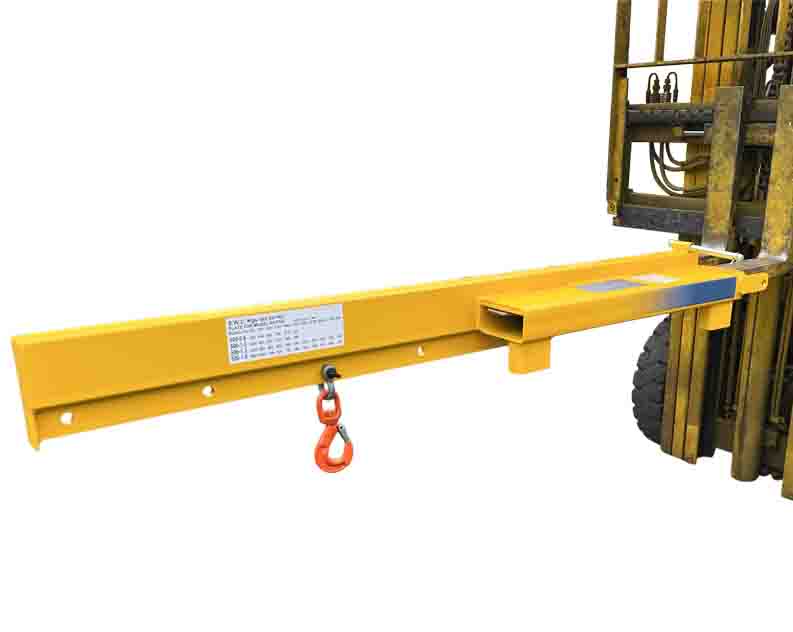

This low profile forklift crane jib is designed to convert a forklift truck into a practical lifting solution for suitable suspended loads. The low liner design helps reduce the overall height of the attachment compared with raised beam alternatives, making it useful where headroom or load height needs to be considered.
The fixed 1800mm beam includes six lifting points, allowing the hook position to be adjusted depending on the required reach and load position. As with all forklift lifting attachments, the safe working capacity will depend on the forklift truck, load centre, lifting point and operating conditions.
Key Features
- Low profile forklift crane jib for suspended lifting applications
- Fixed 1800mm beam length
- Six lifting points from 500mm to 1750mm, starting closer to the truck than raised jibs
- Supplied with hook and shackle
- Designed for use with forklift trucks
- Suitable for lifting machinery, motors, equipment and other compatible suspended loads
- Useful where a lower attachment profile is required
- Available for forklift trucks from 1000kg to 5000kg
- Fully tested and certificated
Model Specification
| Model | Beam Length | Number of Lifting Points | Hook & Shackle | Jib Weight |
|---|---|---|---|---|
| LLJ | 1800mm | Six, from 500mm to 1750mm | Yes | 125kg to 186kg, depending on truck capacity |
Capacity by Hook Position
| Minimum Truck Capacity | 500mm | 750mm | 1000mm | 1250mm | 1500mm | 1750mm | Max Fork Section | Fork Spread |
|---|---|---|---|---|---|---|---|---|
| 1000kg | 800kg | 630kg | 500kg | 380kg | 310kg | 230kg | 130 x 55mm | 360mm |
| 1300kg | 1000kg | 800kg | 630kg | 470kg | 380kg | 280kg | 130 x 55mm | 360mm |
| 1500kg | 1300kg | 900kg | 680kg | 500kg | 450kg | 380kg | 130 x 55mm | 360mm |
| 2000kg | 1800kg | 1400kg | 1100kg | 900kg | 720kg | 580kg | 130 x 55mm | 360mm |
| 2500kg | 2200kg | 1700kg | 1400kg | 1100kg | 1000kg | 830kg | 130 x 55mm | 360mm |
| 3000kg | 2700kg | 1900kg | 1450kg | 1200kg | 1100kg | 900kg | 170 x 70mm | 460mm |
| 3500kg | 3100kg | 2400kg | 1900kg | 1500kg | 1200kg | 1000kg | 170 x 70mm | 460mm |
| 4000kg | 3500kg | 2700kg | 2000kg | 1600kg | 1300kg | 1100kg | 170 x 70mm | 460mm |
| 5000kg | 4400kg | 3400kg | 2700kg | 2200kg | 1850kg | 1400kg | 170 x 70mm | 460mm |
Hook positions are measured from the face of the forks. Read the row for your truck's rated capacity: each figure is the most the jib can lift at that hook position.
Typical Applications
- Suspended lifting in workshops and factories
- Machinery and equipment handling
- Motor, pump and gearbox lifting
- Steelwork, frames and fabricated component handling
- Tooling, mould and die handling
- Yard and warehouse lifting tasks
- Maintenance and engineering applications
Choosing the Right Forklift Crane Jib
The correct forklift crane jib will depend on the type of load being lifted, the required reach, the available headroom and the rated capacity of your forklift truck. This low profile model is a good option where the overall attachment height needs to be kept lower while still providing multiple lifting points along a fixed beam.
Before ordering, check your forklift truck capacity, fork size, load weight and lifting requirements. The further the hook is positioned from the forklift carriage, the lower the effective lifting capacity will usually become. Always confirm that the selected jib and forklift truck are suitable for the intended load and lifting position.
Low Profile vs Raised Forklift Jibs
| Product Type | Best For | Main Benefit |
|---|---|---|
| Low Profile Forklift Crane Jib | Suspended lifting where lower attachment height is preferred | Lower profile fixed beam design |
| Fork Mounted Forklift Jib | General suspended lifting where additional beam height is useful | Raised beam clearance for certain load types |
| Telescopic Forklift Crane Jib | Applications requiring adjustable reach | Extendable beam for variable lifting positions |
| Low Profile Extender Forklift Jib | Adjustable reach where headroom is limited | Low profile beam that extends from 2000mm to 3000mm |
Safety and Operation
Forklift crane jibs must only be used by trained operators and within the rated capacity of both the forklift truck and the attachment. The load must be secure, balanced and suitable for suspended lifting before the operation begins.
Always check the lifting point, hook position, load weight and forklift capacity before use. Loads should be lifted smoothly, kept as low as practical during travel and never handled above personnel. Site lifting procedures, inspection requirements and relevant health and safety guidance should always be followed.
Why Buy from Mammoth Attachments?
At Mammoth Attachments, we supply practical forklift attachments for real working environments. Our focus is on clear product information, reliable UK supply and helping customers choose equipment that suits their forklift truck, site and application.
This product forms part of our wider forklift attachments range. For similar suspended lifting products, view our full range of forklift lifting jibs. You may also be interested in forklift tipping skips for waste handling, forklift fork extensions for longer loads and forklift wheelie bin handlers for bin emptying applications.
FAQs
What is a low profile forklift crane jib used for?
A low profile forklift crane jib is used for lifting and positioning suitable suspended loads with a forklift truck. It is commonly used for machinery, motors, equipment, tooling, frames and other compatible lifting tasks in workshops, warehouses, factories and yards.
What does low profile mean?
Low profile refers to the lower beam design of the attachment. This can be useful where the overall height of the lifting attachment needs to be reduced compared with raised beam forklift jibs.
What beam length does this forklift jib have?
This low profile forklift crane jib has a fixed 1800mm beam length.
How many lifting points does it have?
The jib has six lifting points, allowing the hook position to be adjusted depending on the required reach and load position.
Is a hook and shackle included?
Yes, this forklift crane jib is supplied with a hook and shackle.
What forklift capacity options are available?
This product is available for forklift truck capacities from 1000kg to 5000kg. Always select the correct option for your forklift truck and lifting requirements.
What fork size does this jib accept?
Jibs for 1000kg to 2500kg trucks take forks up to 130 x 55mm at a 360mm fork spread. Jibs for 3000kg to 5000kg trucks take forks up to 170 x 70mm at a 460mm fork spread. Always check your forklift forks against the capacity table before ordering.
Can this be used for all suspended loads?
No. The load must be suitable for suspended lifting and must remain within the rated capacity of the forklift truck and attachment. The safe working capacity can change depending on hook position, load centre and operating conditions.
Do I need a telescopic jib instead?
If you need adjustable reach, a telescopic forklift crane jib may be more suitable, and the low profile extender forklift jib gives you that reach with a low beam. If you need a fixed beam with a lower attachment profile, this low profile forklift crane jib is the better option.
Not sure which jib suits your truck? Read our guide on how to choose a forklift jib.
