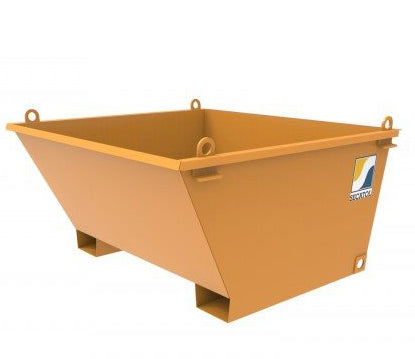

Steel Mortar Tray – 360 to 1000L, Forklift or Crane
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your forklift and the options you need, so every attachment is quoted individually.
A steel mortar tray carries mortar and concrete around site by forklift or crane, then sits by the work so bricklayers and groundworkers can shovel or trowel straight from it. The biased front makes it easy to load a shovel or trowel, right down to the last of the mix.
Reinforced fork pockets take it onto a forklift, and four lifting eyes let you lift it by crane. The trays stack when they're not in use, and the 360L and 500L sizes come in a heavy duty (HD) version.
Specifications
| Model | Capacity | Safe working load | Size (L x W x H) |
|---|---|---|---|
| MTRAY-360 | 360L | 900kg | 1200 x 1270 x 445mm |
| MTRAY-360-HD | 360L | 900kg | 1200 x 1290 x 445mm |
| MTRAY-500 | 500L | 1200kg | 1200 x 1270 x 580mm |
| MTRAY-500-HD | 500L | 1200kg | 1200 x 1290 x 580mm |
| MTRAY-660 | 660L | 1600kg | 1229 x 1403 x 710mm |
| MTRAY-1000 | 1000L | 2400kg | 1958 x 1152 x 810mm |
| Construction | Solid steel, with heavy duty versions of the 360L and 500L |
|---|---|
| Forklift use | Reinforced fork pockets |
| Crane use | Four lifting eyes |
| Storage | Stackable |
| Standards | UKCA marked, Machinery Directive 2006/42/EC, supplied with a Certificate of Conformity |
| Warranty | 1 year |
Key Features
- Biased front for easy shovel and trowel loading
- Forklift pockets and four crane lifting eyes
- Six models from 360 to 1000 litres
- Heavy duty versions of the 360L and 500L
- Stacks when not in use
Before You Order
Mortar and concrete are heavy: a full 500L tray can carry 1200kg before you add the tray itself. Check your forklift or crane's capacity, and tell us your fork sizes so we can confirm the pockets fit.
Under LOLER, lifting equipment needs regular thorough examination by a competent person, and lifting accessories need one at least every six months unless an examination scheme sets a different interval, so ask your examiner which applies to you. Then request a quote.
Related Attachments
Want something lighter? See the plastic mortar tub. For pouring, use the side discharge concrete skip. Compare all our concrete skips and mortar tubs, or browse everything on our forklift attachments page.
Request a quote
Tell us your forklift make and model, and your fork sizes if you have them, and we'll come back with a price, lead time and delivery cost.
