Conventional Battery Changing Beam – 1000kg or 2000kg
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your forklift and the options you need, so every attachment is quoted individually.

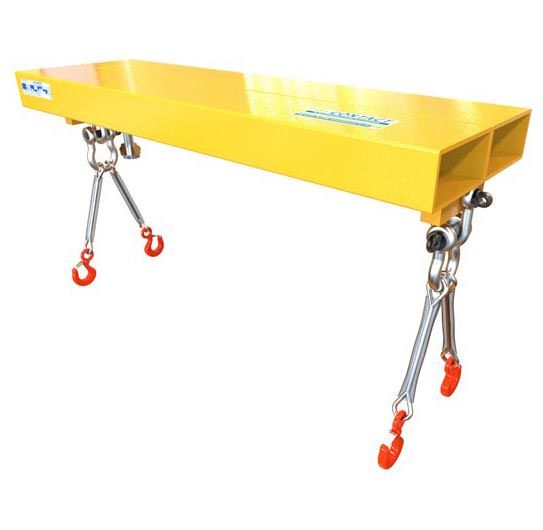

A conventional battery changing beam lets a forklift lift the traction battery out of an electric truck and set it down for charging or replacement. It slides onto the forks of the truck doing the lifting and is held with T-screw clamps, and two twin-leg slings with safety catch hooks take the battery by its lifting holes.
Each beam is made to suit your battery, with the slings set to its lifting holes so it lifts evenly without damage. Wire rope slings are standard, with insulated webbing slings available. Choose 1000kg or 2000kg, for forks only or for forks and crane.
Specifications
| Model | Capacity | Max fork size | Fork spread | Mounting |
|---|---|---|---|---|
| FSB-1 | 1000kg | 140 x 50mm | 295mm | Forks only |
| FSB-2 | 2000kg | 140 x 50mm | 295mm | Forks only |
| FSB-1CS | 1000kg | 140 x 50mm | 295mm | Forks or crane |
| FSB-2CS | 2000kg | 140 x 50mm | 295mm | Forks or crane |
| Slings | Two twin-leg slings with safety catch hooks, wire rope as standard |
|---|---|
| Options | Insulated webbing slings |
| Fitting | Slides onto your forks, held with T-screw clamps |
| Made to suit | Your battery's lifting hole centres, width, height, hole diameter and weight |
| Finish | Safety yellow gloss |
| Standards | CE marked and UKCA compliant, Machinery Directive 2006/42/EC, supplied with a Certificate of Conformity |
| Warranty | 3 years |
Key Features
- Lifts traction batteries out for charging or replacement
- Made to suit your battery's size and lifting holes
- Two twin-leg slings with safety catch hooks
- Wire rope slings as standard, insulated webbing available
- 1000kg or 2000kg, forks only or forks and crane
- Slides onto your forks, held with T-screw clamps
- 3-year warranty
Before You Order
Each beam is made for your battery, so send us the distance between the lifting hole centres, the battery's width and height, the diameter of the lifting holes and the battery's weight. Check your forks fit the 140 x 50mm pockets at the 295mm spread, and that the truck doing the lifting can carry the battery and beam together. Choose a crane model if you'll also lift from an overhead crane.
HSE advises using insulated lifting equipment for batteries, so ask about insulated slings, or see the insulated battery changing beam. Under LOLER, lifting equipment needs regular thorough examination by a competent person, and lifting accessories need one at least every six months unless an examination scheme sets a different interval, so ask your examiner which applies to you. Read how to change a forklift battery safely, then request a quote with your battery details and forklift make and model.
Related Attachments
Short on headroom? The low profile battery changing beam uses short chains to keep the lift low. Compare all three in our forklift battery lifting beams range. Moving gas cylinders too? See our gas cylinder handling equipment, or browse everything on our forklift attachments page.
Request a quote
Tell us your forklift make and model, and your fork sizes if you have them, and we'll come back with a price, lead time and delivery cost.
