Insulated Battery Changing Beam – 1000kg or 2000kg
Price and lead time confirmed with your quote
Price on request
Request a quote
Prices depend on your forklift and the options you need, so every attachment is quoted individually.

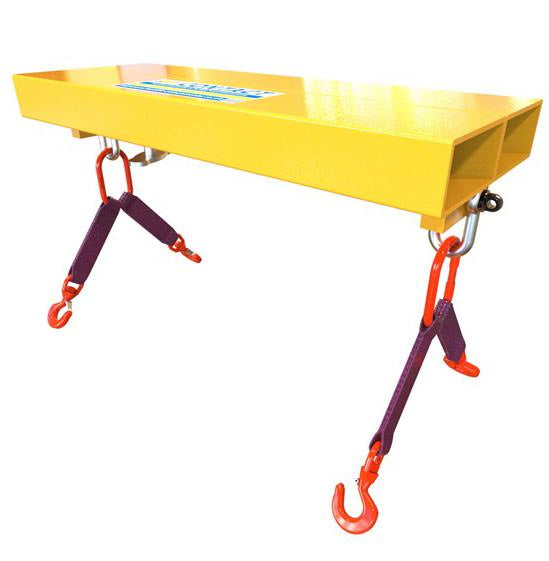

An insulated battery changing beam lifts forklift traction batteries on four non-conductive slings, so a sling that brushes the terminals or connectors can't short them out. It slides onto the forks of the truck doing the lifting, held with T-screw clamps, and lifts the battery out for charging or replacement.
HSE advises using insulated lifting equipment for batteries, and this beam is built around that. Like the conventional beam, it's made to suit your battery, with the slings set to its lifting holes so it lifts evenly without damage. Choose 1000kg or 2000kg, for forks only or for forks and crane.
Specifications
| Model | Capacity | Max fork size | Fork spread | Mounting |
|---|---|---|---|---|
| FSBI-1 | 1000kg | 140 x 50mm | 295mm | Forks only |
| FSBI-2 | 2000kg | 140 x 50mm | 295mm | Forks only |
| FSBI-1CS | 1000kg | 140 x 50mm | 295mm | Forks or crane |
| FSBI-2CS | 2000kg | 140 x 50mm | 295mm | Forks or crane |
| Slings | Four non-conductive slings with safety catch hooks |
|---|---|
| Fitting | Slides onto your forks, held with T-screw clamps |
| Made to suit | Your battery's lifting hole centres, width, height, hole diameter and weight |
| Finish | Safety yellow gloss |
| Standards | CE marked and UKCA compliant, Machinery Directive 2006/42/EC, supplied with a Certificate of Conformity |
| Warranty | 3 years |
Key Features
- Four non-conductive slings for working near battery terminals
- Made to suit your battery's size and lifting holes
- Safety catch hooks on every sling
- 1000kg or 2000kg, forks only or forks and crane
- Slides onto your forks, held with T-screw clamps
- 3-year warranty
Before You Order
Each beam is made for your battery, so send us the distance between the lifting hole centres, the battery's width and height, the diameter of the lifting holes and the battery's weight. Check your forks fit the 140 x 50mm pockets at the 295mm spread, and that the truck doing the lifting can carry the battery and beam together. Choose a crane model if you'll also lift from an overhead crane.
Check the slings before every lift and replace any that are cut or worn. Under LOLER, lifting equipment needs regular thorough examination by a competent person, and lifting accessories need one at least every six months unless an examination scheme sets a different interval, so ask your examiner which applies to you. Read how to change a forklift battery safely, then request a quote with your battery details and forklift make and model.
Related Attachments
Prefer wire rope slings? See the conventional battery changing beam. Short on headroom? The low profile battery changing beam uses short chains. Compare all three in our forklift battery lifting beams range, or browse everything on our forklift attachments page.
